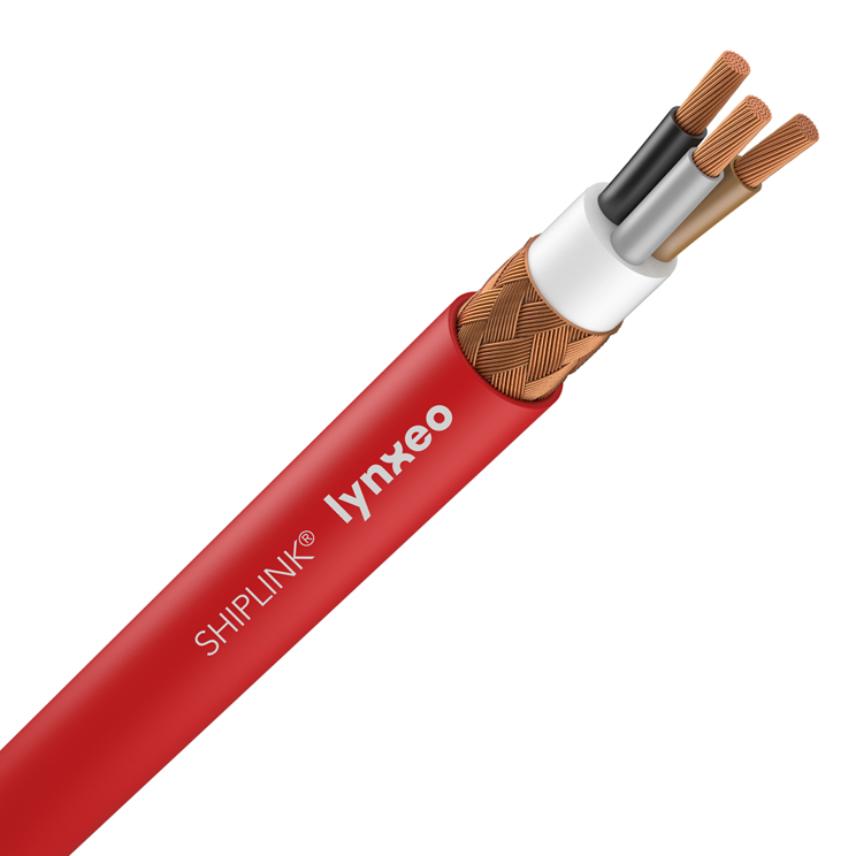

MPRXCX® FLEXISHIP® 1.8/3 (3.6) kV
Description
Description
Standards
-
ProductIEC 60228
-
InstallationIEC 60092-350; IEC 60092-353; IEC 60092-360
-
TestIEC 60332-1; IEC 60332-3-22; IEC 60754-1; IEC 60754-2; IEC 61034
Application
MPRXCX® FLEXISHIP® 1.8/3 kV armoured power cables are used for equipment in medium voltage areas where enhanced mechanical protection and electrical screening (EMC) is required. These products are recommended for installations and connections in narrow spaces where an optimal bending radius is required. Designed with halogen-free fire retardant materials, they provide optimum safety for people and maximal asset protection against all risks of fire.
Design
- Conductor
Flexible bare copper, class 5
- Insulation
XLPE (cross-linked polyethylene)
- Inner covering
Lapped or extruded
- Armouring
Bare copper braid
- Outer sheath
Polyolefin SHF1
Colour: red
Marking
LYNXEO 279 MPRXCX FLEXISHIP 1.8/3 kV "n" x "s" mm2 90°C IEC 60092-353
IEC 60332-3-22 Cat.A "ww/yy" + metric marking
Core Identification
by colour: black-brown-grey
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
-
Type of conductor
-
Insulation
-
Inner sheath
-
Armour type
-
Outer sheath
-
Halogen free
-
Sheath colour
-
Dimensional characteristics
Dimensional characteristics
Number of cores
-
Conductor cross-section
- mm²
Minimum outer diameter
- mm
Maximum outer diameter
- mm
Approximate weight
- kg/km
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
-
Permissible current rating in open air
- A
Usage characteristics
Usage characteristics
Flame retardant
IEC 60332-1
Fire retardant
-
Smoke density
-
Gases corrosivity
IEC 60754-2
Operating temperature, range
-30 ... 80 °C
Electro magnetic interference resistance
-
