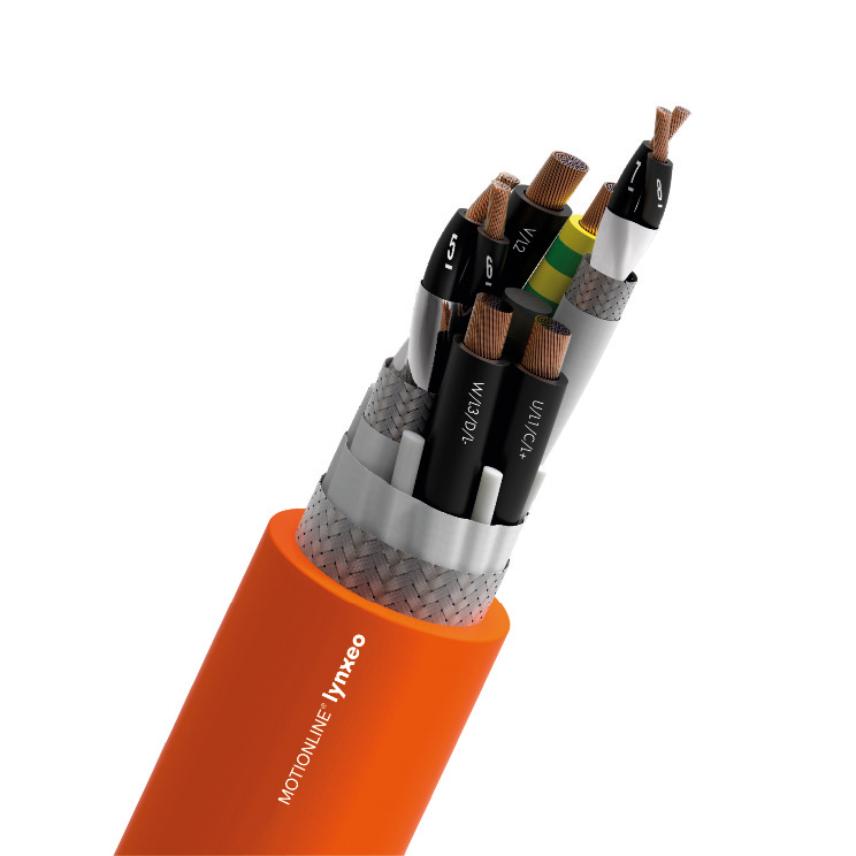

MOTIONLINE® PREMIUM - SERVO CABLES ACC. TO BOSCH REXROTH STANDARD
MOTIONLINE® PREMIUM - SERVO CABLES ACC. TO BOSCH REXROTH STANDARD
Servo cables according to BOSCH REXROTH standard for extremely dynamic applications, PUR jacket, shielded, resistant to oils, flame retardant, halogen-free
Lee más(4G0,75 + 2x(2x0,34 )C)C
Lynxeo ref. 10553152 - País de referencia 13-EBY19Z08P-A5
- Embalaje: Cut to length (m)
- Construction type: (4G0.75 + 2x(2x0.34)C)C
- Diámetro exterior nominal: 9,6 mm
- Contenido de cobre: 93 kg/km
- Peso aproximado: 140 kg/km
(4G1,00 + 2x(2x0,75 )C)C
Lynxeo ref. 10553151 - País de referencia 13-EBY17Z08P-A5
- Embalaje: Cut to length (m)
- Construction type: (4G1.0 + 2x(2x0.75)C)C
- Diámetro exterior nominal: 11,6 mm
- Contenido de cobre: 170 kg/km
- Peso aproximado: 210 kg/km
(4G1,50 + 2x(2x0,75 )C)C
Lynxeo ref. 10553147 - País de referencia 13-EBY15Z08P-A5
- Embalaje: Cut to length (m)
- Construction type: (4G1.5 + 2x(2x0.75)C)C
- Diámetro exterior nominal: 11,8 mm
- Contenido de cobre: 189 kg/km
- Peso aproximado: 240 kg/km
(4G2,50 + 2x(2x1 )C)C
Lynxeo ref. 10553144 - País de referencia 13-EBY13Z08P-A5
- Embalaje: Cut to length (m)
- Construction type: (4G2.5 + 2x(2x1.0)C)C
- Diámetro exterior nominal: 13,0 mm
- Contenido de cobre: 234 kg/km
- Peso aproximado: 300 kg/km
(4G4 + (2x1)C+(2x1,5 )C)C
Lynxeo ref. 10553142 - País de referencia 13-EBY11Z08P-A5
- Embalaje: Cut to length (m)
- Construction type: (4G4 + (2x1.5)C + (2x1.0)C)C
- Diámetro exterior nominal: 16,0 mm
- Contenido de cobre: 320 kg/km
- Peso aproximado: 450 kg/km
(4G6 + (2x1)C+(2x1,5 )C)C
Lynxeo ref. 10553141 - País de referencia 13-EBY09Z08P-A5
- Embalaje: Cut to length (m)
- Construction type: (4G6 +(2x1.5)C + (2x1.0)C)C
- Diámetro exterior nominal: 18,1 mm
- Contenido de cobre: 395 kg/km
- Peso aproximado: 555 kg/km
(4G10 + (2x1)C+(2x1,5 )C)C
Lynxeo ref. 10553140 - País de referencia 13-EBY07Z08P-A5
- Embalaje: Cut to length (m)
- Construction type: (4G10 + (2x1.5)C + (2x1.0)C)C
- Diámetro exterior nominal: 20,4 mm
- Contenido de cobre: 620 kg/km
- Peso aproximado: 810 kg/km
(4G16 + 2x(2x1,5)C)C
Lynxeo ref. 10553139 - País de referencia 13-EBY05Z08P-A5
- Embalaje: Cut to length (m)
- Construction type: (4G16 + 2x(2x1.5)C)C
- Diámetro exterior nominal: 23,6 mm
- Contenido de cobre: 903 kg/km
- Peso aproximado: 1150 kg/km
(4G25 + 2x(2x1,5 )C)C
Lynxeo ref. 10553138 - País de referencia 13-EBY03Z08P-A5
- Embalaje: Cut to length (m)
- Construction type: (4G25 + 2x(2x1.5)C)C
- Diámetro exterior nominal: 27,6 mm
- Contenido de cobre: 1310 kg/km
- Peso aproximado: 1630 kg/km
Descripción
Descripción
Estándares
-
ProductoUL and CSA approval
Design
Conductor
Stranded bare copper
Core insulation
Polyolefin
Core stranding
Power cores stranded
with fillers
Core identification
Power:
U/L1/C/L+ V/L2
W/L3/D/L- Ye/Gr
Signal:
Black numbered 5-6 7-8
Shield
Total shield:
Tinned copper braid,
coverage >= 85%
Jacket
PUR
Colour:
Orange RAL 2003
(available also in Green RAL 6018)
Normative reference
Normative reference
UL Recognized / CSA
AWM 80°C - 600V/1000V
AWM 80°C - 600V/1000V FT1
Oil Resistance:
En 50363-10-2
Flame Resistance:
IEc 60331-1-2; FT1; UL 1581; EN 50265-2-1
Toxicity:
Halogen free
