TYPE 1050
TYPE 1050
Screened Cables for High Ambient Temperatures
To AIR 4524, B.N.Aé, MIL-W-22759 D & B.M.S. 13-58
Operating voltage: 600 volts RMS
Operating temperature: -50°C to +250°C (ambient + rise)
Descrizione
Descrizione
Norme
-
ProductAIR 4524; BMS 13-58; MIL-W-22759 D

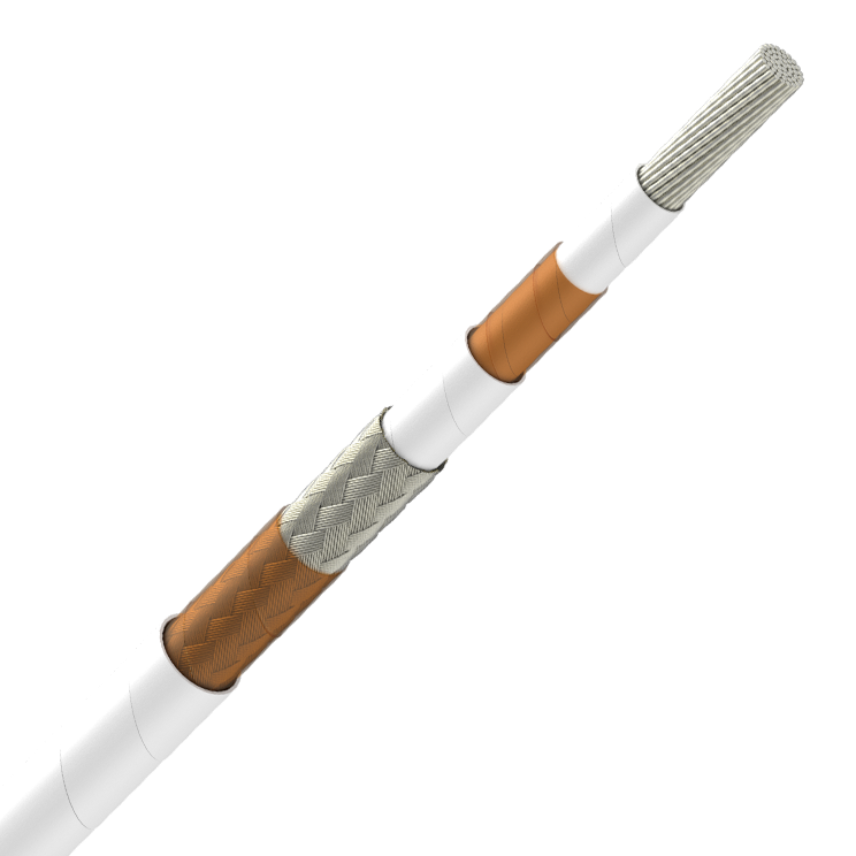

1, 2, or 3 cores, Type 2100 covered with :
Braided screen made up of nickel plated copper
Polyimide sheath
Wrapped and sintered PTFE sheath
Characteristics
Same as 2100 cores. Morever, the overall polyimide and PTFE sheaths provide the following advantages :
- Very good electrical insulation of the screen,
- Very efficient protection of the screen against oxydation and corrosion,
- Easy fitting of the cable,
- Good mechanical protection of the screen,
- Safer handling
Technical Requierements and Controle Conditions
Cores : See data sheet on type '2100',
Screen : MIL-7078 of August 1971,
Coding : AIR 0107 A Specification of October 1961 and Note N°348/SIB distributed under N°5927/STT/SIB 1961.
Caratteristiche
Caratteristiche
Caratteristiche elettriche
Caratteristiche elettriche
Tensione operativa
600 V
Caratteristiche d'utilizzo
Caratteristiche d'utilizzo
Temperatura Operativa
-50 ... 250 °C
Resistenza all'olio
Very good resistance to aircraft fluids
Ritardante la fiamma
FAR/JAR part 25 sec 25.869 (a)(4) Appendix F part 1 (3)
