EN 2267-010A DR
EN 2267-010A DR

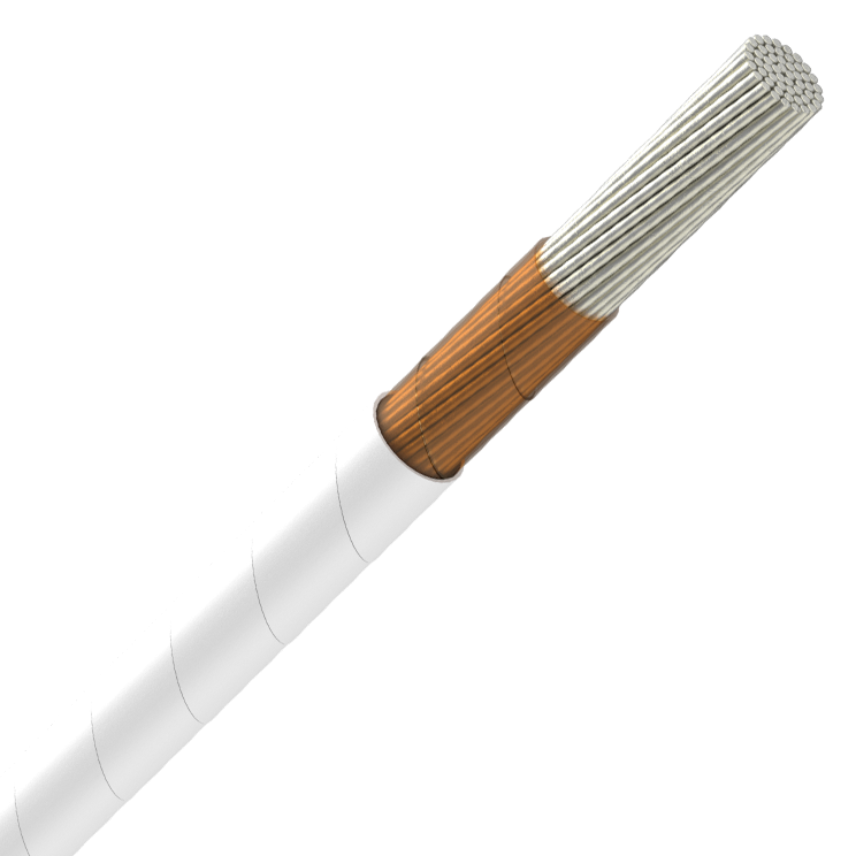

Designed for general Purpose Aircraft Wiring Applications.
UV Laser printable Wire
260°C Operating Temperature Light Weight
Arc Tracking Resistant
EN 2267-010A 001 S
Product ref. EN 2267-010A 001 S - Country ref. 10066365
- Minimum cable diameter: 0.75 mm
- Maximum outer diameter: 0.49 mm
- Minimum outer diameter: 0.47 mm
- Conductor stranding: 19 x 0.10
- Maximum weight: 2.08 g/m
- Nominal weight: 1.95 g/m
- Max. DC resistance of the conductor at 20°C: 160 Ohm/km
EN 2267-010A 002 S
Product ref. EN 2267-010A 002 S - Country ref. 10061879
- Minimum cable diameter: 0.85 mm
- Maximum outer diameter: 0.58 mm
- Minimum outer diameter: 0.56 mm
- Conductor stranding: 19 x 0.12
- Maximum weight: 2.72 g/m
- Nominal weight: 2.64 g/m
- Max. DC resistance of the conductor at 20°C: 114 Ohm/km
EN 2267-010A 004 S
Product ref. EN 2267-010A 004 S - Country ref. 10061881
- Minimum cable diameter: 1 mm
- Maximum outer diameter: 0.73 mm
- Minimum outer diameter: 0.71 mm
- Conductor stranding: 19 x 0.15
- Maximum weight: 4.14 g/m
- Nominal weight: 3.89 g/m
- Max. DC resistance of the conductor at 20°C: 60 Ohm/km
EN 2267-010A 006 S
Product ref. EN 2267-010A 006 S - Country ref. 10061894
- Minimum cable diameter: 1.22 mm
- Maximum outer diameter: 0.97 mm
- Minimum outer diameter: 0.94 mm
- Conductor stranding: 19 x 0.20
- Maximum weight: 6.85 g/m
- Nominal weight: 6.57 g/m
- Max. DC resistance of the conductor at 20°C: 33.2 Ohm/km
EN 2267-010A 010 S
Product ref. EN 2267-010A 010 S - Country ref. 10068335
- Minimum cable diameter: 1.46 mm
- Maximum outer diameter: 1.22 mm
- Minimum outer diameter: 1.19 mm
- Conductor stranding: 19 x 0.25
- Maximum weight: 10.43 g/m
- Nominal weight: 10.15 g/m
- Max. DC resistance of the conductor at 20°C: 21.1 Ohm/km
EN 2267-010A 012 S
Product ref. EN 2267-010A 012 S - Country ref. 10066366
- Minimum cable diameter: 1.76 mm
- Maximum outer diameter: 1.45 mm
- Minimum outer diameter: 1.41 mm
- Conductor stranding: 19 x 0.30
- Maximum weight: 14.61 g/m
- Nominal weight: 14.05 g/m
- Max. DC resistance of the conductor at 20°C: 14.5 Ohm/km
EN 2267-010A 020 S
Product ref. EN 2267-010A 020 S - Country ref. 10061896
- Minimum cable diameter: 2.04 mm
- Maximum outer diameter: 1.73 mm
- Minimum outer diameter: 1.69 mm
- Conductor stranding: 37 x 0.25
- Maximum weight: 19.78 g/m
- Nominal weight: 19.31 g/m
- Max. DC resistance of the conductor at 20°C: 10.9 Ohm/km
EN 2267-010A 030 S
Product ref. EN 2267-010A 030 S - Country ref. 10066384
- Minimum cable diameter: 2.5 mm
- Maximum outer diameter: 2.18 mm
- Minimum outer diameter: 2.13 mm
- Conductor stranding: 37 x 0.32
- Maximum weight: 31.33 g/m
- Nominal weight: 29.25 g/m
- Max. DC resistance of the conductor at 20°C: 6.8 Ohm/km
EN 2267-010A 051 S
Product ref. EN 2267-010A 051 S - Country ref. 10066372
- Minimum cable diameter: 3.13 mm
- Maximum outer diameter: 2.77 mm
- Minimum outer diameter: 2.73 mm
- Conductor stranding: 61 x 0.32
- Maximum weight: 49.85 g/m
- Nominal weight: 47.37 g/m
- Max. DC resistance of the conductor at 20°C: 4.1 Ohm/km
EN 2267-010A 090 S
Product ref. EN 2267-010A 090 S - Country ref. 10068337
- Minimum cable diameter: 4.1 mm
- Maximum outer diameter: 3.85 mm
- Minimum outer diameter: 3.55 mm
- Conductor stranding: 127 x 0.30
- Maximum weight: 90 g/m
- Nominal weight: 87.81 g/m
- Max. DC resistance of the conductor at 20°C: 2.3 Ohm/km
EN 2267-010A 140 S
Product ref. EN 2267-010A 140 S - Country ref. 10061897
- Minimum cable diameter: 5.3 mm
- Maximum outer diameter: 5.2 mm
- Minimum outer diameter: 4.8 mm
- Conductor stranding: 27 x 7 x 0.30
- Maximum weight: 135 g/m
- Nominal weight: 132.41 g/m
- Max. DC resistance of the conductor at 20°C: 1.58 Ohm/km
EN 2267-010A 220 S
Product ref. EN 2267-010A 220 S - Country ref. 10061898
- Minimum cable diameter: 6.71 mm
- Maximum outer diameter: 6.8 mm
- Minimum outer diameter: - mm
- Conductor stranding: 37 x 12 x 0.25
- Maximum weight: 222 g/m
- Nominal weight: 215.15 g/m
- Max. DC resistance of the conductor at 20°C: 0.97 Ohm/km
EN 2267-010A 340 S
Product ref. EN 2267-010A 340 S
- Minimum cable diameter: 8.28 mm
- Maximum outer diameter: 8.6 mm
- Minimum outer diameter: - mm
- Conductor stranding: 37 x 19 x 0.25
- Maximum weight: 347 g/m
- Nominal weight: 336.1 g/m
- Max. DC resistance of the conductor at 20°C: 0.61 Ohm/km
Description
Description
Standards
-
ProductEN 2267-010
DESIGN CONSTRUCTION
CORE
Stranded Conductor : Nickel Plated High
Strength Copper Alloy (AWG 26 & 24) or
Nickel Plated Copper (AWG 22 to 2)
INSULATION
Special Polyimide Tape
Special UV PTFE Tape(s)
IDENTIFICATION
Standard colour code :
White except AWG 26 which is light yellow and AWG 22 which is light green
AWG 24 is available in light blue color (EN2267-010A 002B)
Color of marking: green
Marking text: EN DR ** FR F ++
DR = Short designation
** = AWG Wire Size
FR = Country of origin (FR = France)
F = Manufacturer (F = Lynxeo)
++ = Year of production (i.e. 13 = 2013)
