EN 2714-013 MLA
EN 2714-013 MLA

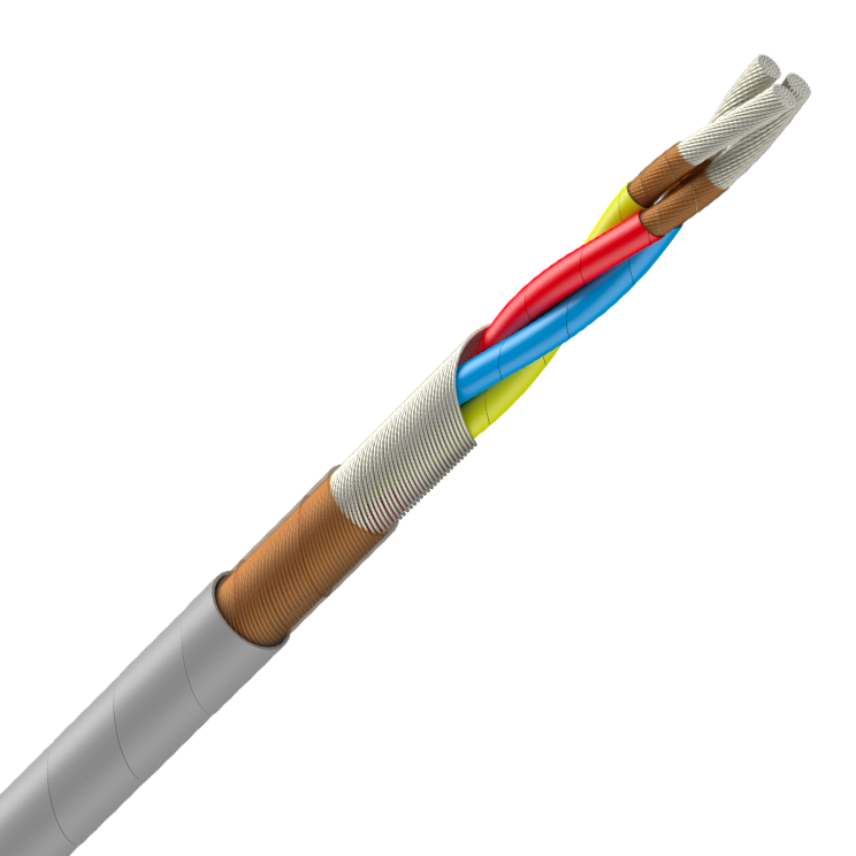

Designed for general Purpose Aircraft Wiring Applications.
260°C, Screened and Jacketed,
Light Weight, UV cable,
Arc tracking Resistant
MLA 10 051
Product ref. EN 2714-013A 051F (MLA10)
- Core identification: 하얀색
- Nominal outer diameter: 3.74 inches
- Maximum outer diameter: 3.89 mm
- 코어수: 1
- Screen strands nominal diameter: 0.12 mm
- Maximum weight: 61.94 g/m
- Nominal weight: 58.72 g/m
- Maximum DC resistance at 20°C: 4.1 Ohm/100m
MLA 12 030
Product ref. EN 2714-013A 030F (MLA12) - Country ref. 10142761
- Core identification: 하얀색
- Nominal outer diameter: 3.06 inches
- Maximum outer diameter: 3.2 mm
- 코어수: 1
- Screen strands nominal diameter: 0.1 mm
- Maximum weight: 39.7 g/m
- Nominal weight: 37.31 g/m
- Maximum DC resistance at 20°C: 6.8 Ohm/100m
MLA 14 020
Product ref. EN 2714-013A 020F (MLA14) - Country ref. 10063584
- Core identification: 하얀색
- Nominal outer diameter: 2.65 inches
- Maximum outer diameter: 2.74 mm
- 코어수: 1
- Screen strands nominal diameter: 0.1 mm
- Maximum weight: 27.03 g/m
- Nominal weight: 26.17 g/m
- Maximum DC resistance at 20°C: 10.9 Ohm/100m
MLA 16 012
Product ref. EN 2714-013A 012F (MLA16) - Country ref. 10230522
- Core identification: 하얀색
- Nominal outer diameter: 2.32 inches
- Maximum outer diameter: 2.43 mm
- 코어수: 1
- Screen strands nominal diameter: 0.1 mm
- Maximum weight: 20.97 g/m
- Nominal weight: 19.95 g/m
- Maximum DC resistance at 20°C: 14.5 Ohm/100m
MLA 18 010
Product ref. EN 2714-013A 010F (MLA18) - Country ref. 10140497
- Core identification: 하얀색
- Nominal outer diameter: 1.99 inches
- Maximum outer diameter: 2.08 mm
- 코어수: 1
- Screen strands nominal diameter: 0.08 mm
- Maximum weight: 14.97 g/m
- Nominal weight: 14.47 g/m
- Maximum DC resistance at 20°C: 21.1 Ohm/100m
MLA 20 006
Product ref. EN 2714-013A 006F (MLA20) - Country ref. 10062818
- Core identification: 하얀색
- Nominal outer diameter: 1.75 inches
- Maximum outer diameter: 1.84 mm
- 코어수: 1
- Screen strands nominal diameter: 0.08 mm
- Maximum weight: 10.77 g/m
- Nominal weight: 10.28 g/m
- Maximum DC resistance at 20°C: 33.2 Ohm/100m
MLA 22 004
Product ref. EN 2714-013A 004F (MLA22) - Country ref. 10062816
- Core identification: Light green
- Nominal outer diameter: 1.5 inches
- Maximum outer diameter: 1.6 mm
- 코어수: 1
- Screen strands nominal diameter: 0.08 mm
- Maximum weight: 7.51 g/m
- Nominal weight: 6.97 g/m
- Maximum DC resistance at 20°C: 60 Ohm/100m
MLA 24 002
Product ref. EN 2714-013A 002F (MLA24) - Country ref. 10062814
- Core identification: 하얀색
- Nominal outer diameter: 1.36 inches
- Maximum outer diameter: 1.45 mm
- 코어수: 1
- Screen strands nominal diameter: 0.08 mm
- Maximum weight: 5.76 g/m
- Nominal weight: 5.37 g/m
- Maximum DC resistance at 20°C: 114 Ohm/100m
MLA 26 001
Product ref. EN 2714-013A 001F (MLA26)
- Core identification: Light yellow
- Nominal outer diameter: 1.23 inches
- Maximum outer diameter: 1.31 mm
- 코어수: 1
- Screen strands nominal diameter: 0.08 mm
- Maximum weight: 4.68 g/m
- Nominal weight: 4.35 g/m
- Maximum DC resistance at 20°C: 160 Ohm/100m
MLB 10 051
Product ref. EN 2714-013B 051F (MLB10)
- Core identification: Red, Blue
- Nominal outer diameter: 7.11 inches
- Maximum outer diameter: 7.39 mm
- 코어수: 2
- Screen strands nominal diameter: 0.2 mm
- Maximum weight: 130.51 g/m
- Nominal weight: 123.94 g/m
- Maximum DC resistance at 20°C: 4.22 Ohm/100m
MLB 12 030
Product ref. EN 2714-013B 030F (MLB12) - Country ref. 10126082
- Core identification: Red, Blue
- Nominal outer diameter: 5.83 inches
- Maximum outer diameter: 6.09 mm
- 코어수: 2
- Screen strands nominal diameter: 0.2 mm
- Maximum weight: 86.79 g/m
- Nominal weight: 81.8 g/m
- Maximum DC resistance at 20°C: 6.99 Ohm/100m
MLB 14 020
Product ref. EN 2714-013B 020F (MLB14) - Country ref. 10064085
- Core identification: Red, Blue
- Nominal outer diameter: 4.91 inches
- Maximum outer diameter: 5.04 mm
- 코어수: 2
- Screen strands nominal diameter: 0.15 mm
- Maximum weight: 55.83 g/m
- Nominal weight: 54.19 g/m
- Maximum DC resistance at 20°C: 11.2 Ohm/100m
MLB 16 012
Product ref. EN 2714-013B 012F (MLB16) - Country ref. 10121250
- Core identification: Red, Blue
- Nominal outer diameter: 4.19 inches
- Maximum outer diameter: 4.38 mm
- 코어수: 2
- Screen strands nominal diameter: 0.12 mm
- Maximum weight: 41.2 g/m
- Nominal weight: 39.3 g/m
- Maximum DC resistance at 20°C: 14.9 Ohm/100m
MLB 18 010
Product ref. EN 2714-013B 010F (MLB18) - Country ref. 10121941
- Core identification: Red, Blue
- Nominal outer diameter: 3.57 inches
- Maximum outer diameter: 3.71 mm
- 코어수: 2
- Screen strands nominal diameter: 0.1 mm
- Maximum weight: 29.52 g/m
- Nominal weight: 28.62 g/m
- Maximum DC resistance at 20°C: 21.7 Ohm/100m
MLB 20 006
Product ref. EN 2714-013B 006F (MLB20) - Country ref. 10062792
- Core identification: Red, Blue
- Nominal outer diameter: 3.09 inches
- Maximum outer diameter: 3.22 mm
- 코어수: 2
- Screen strands nominal diameter: 0.1 mm
- Maximum weight: 21.05 g/m
- Nominal weight: 20.17 g/m
- Maximum DC resistance at 20°C: 34.1 Ohm/100m
MLB 22 004
Product ref. EN 2714-013B 004F (MLB22) - Country ref. 10062825
- Core identification: Red, Blue
- Nominal outer diameter: 2.55 inches
- Maximum outer diameter: 2.7 mm
- 코어수: 2
- Screen strands nominal diameter: 0.08 mm
- Maximum weight: 13.64 g/m
- Nominal weight: 12.7 g/m
- Maximum DC resistance at 20°C: 61.7 Ohm/100m
MLB 24 002
Product ref. EN 2714-013B 002F (MLB24) - Country ref. 10066389
- Core identification: Red, Blue
- Nominal outer diameter: 2.27 inches
- Maximum outer diameter: 2.4 mm
- 코어수: 2
- Screen strands nominal diameter: 0.08 mm
- Maximum weight: 10.23 g/m
- Nominal weight: 9.58 g/m
- Maximum DC resistance at 20°C: 117 Ohm/100m
MLB 26 001
Product ref. EN 2714-013B 001F (MLB26) - Country ref. 10066388
- Core identification: Red, Blue
- Nominal outer diameter: 2.01 inches
- Maximum outer diameter: 2.13 mm
- 코어수: 2
- Screen strands nominal diameter: 0.08 mm
- Maximum weight: 8.17 g/m
- Nominal weight: 7.63 g/m
- Maximum DC resistance at 20°C: 165 Ohm/100m
MLC 10 051
Product ref. EN 2714-013C 051F (MLC10) - Country ref. 10285399
- Core identification: Red,Blue,Yellow
- Nominal outer diameter: 7.61 inches
- Maximum outer diameter: 7.9 mm
- 코어수: 3
- Screen strands nominal diameter: 0.2 mm
- Maximum weight: 186.69 g/m
- Nominal weight: 177.31 g/m
- Maximum DC resistance at 20°C: 4.22 Ohm/100m
MLC 12 030
Product ref. EN 2714-013C 030F (MLC12) - Country ref. 10127806
- Core identification: Red,Blue,Yellow
- Nominal outer diameter: 6.23 inches
- Maximum outer diameter: 6.5 mm
- 코어수: 3
- Screen strands nominal diameter: 0.2 mm
- Maximum weight: 122.72 g/m
- Nominal weight: 115.68 g/m
- Maximum DC resistance at 20°C: 6.99 Ohm/100m
MLC 14 020
Product ref. EN 2714-013C 020F (MLC14) - Country ref. 10062823
- Core identification: Red,Blue,Yellow
- Nominal outer diameter: 5.25 inches
- Maximum outer diameter: 5.39 mm
- 코어수: 3
- Screen strands nominal diameter: 0.15 mm
- Maximum weight: 78.83 g/m
- Nominal weight: 76.59 g/m
- Maximum DC resistance at 20°C: 11.2 Ohm/100m
MLC 16 012
Product ref. EN 2714-013C 012F (MLC16) - Country ref. 10116382
- Core identification: Red,Blue,Yellow
- Nominal outer diameter: 4.53 inches
- Maximum outer diameter: 4.73 mm
- 코어수: 3
- Screen strands nominal diameter: 0.15 mm
- Maximum weight: 60.67 g/m
- Nominal weight: 57.96 g/m
- Maximum DC resistance at 20°C: 14.9 Ohm/100m
MLC 18 010
Product ref. EN 2714-013C 010F (MLC18) - Country ref. 10087156
- Core identification: Red,Blue,Yellow
- Nominal outer diameter: 3.85 inches
- Maximum outer diameter: 4.0 mm
- 코어수: 3
- Screen strands nominal diameter: 0.12 mm
- Maximum weight: 42.96 g/m
- Nominal weight: 41.75 g/m
- Maximum DC resistance at 20°C: 21.7 Ohm/100m
MLC 20 006
Product ref. EN 2714-013C 006F (MLC20) - Country ref. 10062821
- Core identification: Red,Blue,Yellow
- Nominal outer diameter: 3.33 inches
- Maximum outer diameter: 3.48 mm
- 코어수: 3
- Screen strands nominal diameter: 0.12 mm
- Maximum weight: 30.44 g/m
- Nominal weight: 29.23 g/m
- Maximum DC resistance at 20°C: 34.1 Ohm/100m
MLC 22 004
Product ref. EN 2714-013C 004F (MLC22) - Country ref. 10062824
- Core identification: Red,Blue,Yellow
- Nominal outer diameter: 2.75 inches
- Maximum outer diameter: 2.91 mm
- 코어수: 3
- Screen strands nominal diameter: 0.1 mm
- Maximum weight: 19.76 g/m
- Nominal weight: 18.45 g/m
- Maximum DC resistance at 20°C: 61.7 Ohm/100m
MLC 24 002
Product ref. EN 2714-013C 002F (MLC24) - Country ref. 10062820
- Core identification: Red,Blue,Yellow
- Nominal outer diameter: 2.45 inches
- Maximum outer diameter: 2.59 mm
- 코어수: 3
- Screen strands nominal diameter: 0.1 mm
- Maximum weight: 14.72 g/m
- Nominal weight: 13.83 g/m
- Maximum DC resistance at 20°C: 117 Ohm/100m
MLC 26 001
Product ref. EN 2714-013C 001F (MLC26)
- Core identification: Red,Blue,Yellow
- Nominal outer diameter: 2.13 inches
- Maximum outer diameter: 2.26 mm
- 코어수: 3
- Screen strands nominal diameter: 0.08 mm
- Maximum weight: 10.94 g/m
- Nominal weight: 10.25 g/m
- Maximum DC resistance at 20°C: 165 Ohm/100m
MLD 14 020
Product ref. EN 2714-013C 020F (MLD14)
- Core identification: Red, Blue, Yellow, Green
- Nominal outer diameter: 5.91 inches
- Maximum outer diameter: 6.06 mm
- 코어수: 4
- Screen strands nominal diameter: 0.2 mm
- Maximum weight: 107.36 g/m
- Nominal weight: 104.39 g/m
- Maximum DC resistance at 20°C: 11.2 Ohm/100m
MLD 16 012
Product ref. EN 2714-013C 012F (MLD16) - Country ref. 10126384
- Core identification: Red, Blue, Yellow, Green
- Nominal outer diameter: 5.01 inches
- Maximum outer diameter: 5.23 mm
- 코어수: 4
- Screen strands nominal diameter: 0.15 mm
- Maximum weight: 78.02 g/m
- Nominal weight: 74.58 g/m
- Maximum DC resistance at 20°C: 14.9 Ohm/100m
MLD 18 010
Product ref. EN 2714-013C 010F (MLD18)
- Core identification: Red, Blue, Yellow, Green
- Nominal outer diameter: 4.25 inches
- Maximum outer diameter: 4.41 mm
- 코어수: 4
- Screen strands nominal diameter: 0.12 mm
- Maximum weight: 55.22 g/m
- Nominal weight: 53.73 g/m
- Maximum DC resistance at 20°C: 21.7 Ohm/100m
MLD 20 006
Product ref. EN 2714-013C 006F (MLD20) - Country ref. 10064088
- Core identification: Red, Blue, Yellow, Green
- Nominal outer diameter: 3.67 inches
- Maximum outer diameter: 3.82 mm
- 코어수: 4
- Screen strands nominal diameter: 0.12 mm
- Maximum weight: 38.81 g/m
- Nominal weight: 37.31 g/m
- Maximum DC resistance at 20°C: 34.1 Ohm/100m
MLD 22 004
Product ref. EN 2714-013C 004F (MLD22) - Country ref. 10064090
- Core identification: Red, Blue, Yellow, Green
- Nominal outer diameter: 3.03 inches
- Maximum outer diameter: 3.19 mm
- 코어수: 4
- Screen strands nominal diameter: 0.1 mm
- Maximum weight: 25.04 g/m
- Nominal weight: 23.4 g/m
- Maximum DC resistance at 20°C: 61.7 Ohm/100m
MLD 24 002
Product ref. EN 2714-013C 002F (MLD24) - Country ref. 10064087
- Core identification: Red, Blue, Yellow, Green
- Nominal outer diameter: 2.69 inches
- Maximum outer diameter: 2.84 mm
- 코어수: 4
- Screen strands nominal diameter: 0.1 mm
- Maximum weight: 18.47 g/m
- Nominal weight: 17.37 g/m
- Maximum DC resistance at 20°C: 117 Ohm/100m
MLD 26 001
Product ref. EN 2714-013C 001F (MLD26)
- Core identification: Red, Blue, Yellow, Green
- Nominal outer diameter: 2.37 inches
- Maximum outer diameter: 2.51 mm
- 코어수: 4
- Screen strands nominal diameter: 0.1 mm
- Maximum weight: 14.57 g/m
- Nominal weight: 13.69 g/m
- Maximum DC resistance at 20°C: 165 Ohm/100m
Description
Description
Standards
-
ProductEN 2267-009; EN 2714-013
DESIGN CONSTRUCTION
CORES
1 cores
EN2267-009A
SCREEN
Nickel plated copper spiral screen
JACKET
Polyimide tape
UV PTFE tape
CORES
2, 3 or 4 cores
EN2267-009A
SCREEN
Nickel plated copper spiral screen
JACKET
Polyimide tape
UV PTFE tap
IDENTIFICATION
| IDENTIFICATION | |
| 1 core (MLB) | : white execpt code 001: Light Yellow/ code 004: Light Green |
| : | |
| Marking | : EN DRA ++ FRF ** |
| Colour of marking | : White for red and green core, |
| Green for blue and yellow core | |
| Jacket | |
| Colour | : White except code 002, 006, 012 : Light Blue |
| Marking | : EN xxx ++ FRF ** |
| Colour of marking | : Green |
| xxx : Short designation (MLA, MLB, MLC, MLD) | |
| ++ : AWG | |
| FR : Country of Origin (FR = France) | |
| F : Manufacturer (F = Lynxeo) | |
| ** : Year of manufacturing (ie 14 = 2014 |
New Free Section - 103114
Characteristics
Characteristics
구조적 특성
구조적 특성
Jacket material
Polyimide tape, UV PTFE tape
Sheath colour
-
색상
-
스크린
Nickel plated copper spiral screen
전기적 특성
전기적 특성
Maximal operating frequency
0.002 MHz
Operating Voltage Vo DC
28 V
Operating voltage between phases
200 V
Operating voltage between phase and neutral
115 V
사용 특성
사용 특성
Oil resistance
Very good resistance to aircraft fluids
Arc tracking resistant
Yes
RoHS compliant
Yes
操作温度范围
-55 ... 260 °C
