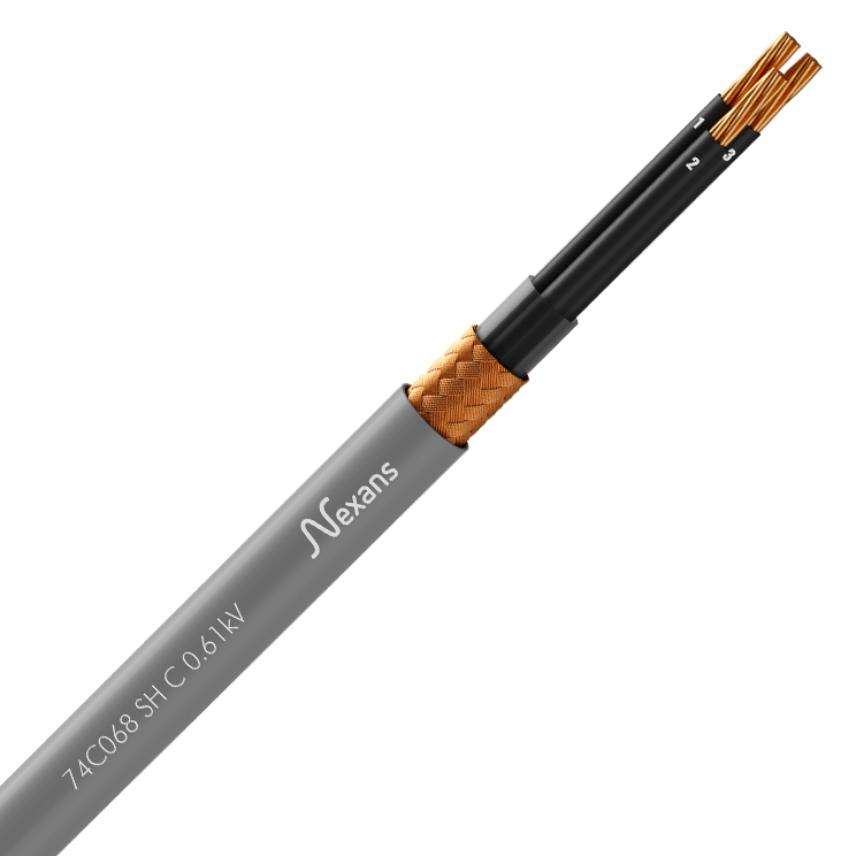

74C068 SH C 0.6/1kV 3x16 Cu2 K3 EG NA
74C068 SH C 0.6/1kV 3x16 Cu2 K3 EG NA
- CST 74C068
- Quality insurance according to RCC-E
- Zero halogen (SH)
- Control cables 0.6/1(1.2)kV
- Cables installed outside the containment area (K3)
- Overall screened (EG)
- Unarmoured (NA)
- Nexans ref. : 10265135
- EAN : 3427580724961
Descripción
Descripción
Estándares
-
ProductIEC 60228
-
TestIEC 60332-3-23; IEC 60754-1; IEC 60754-2; IEC 61034-2; NF C32-070/C1
Applications
These control cables allow connection to a variety of industrial equipement from control room. Many of them require anti-inductive screen (EMI).
Design
Conductor:
- Stranded (class 2) or flexible (class 5) plain copper
Insulation:
- Zero halogen (SH), cross-linked
Assembling:
- An inner sheath acting as a filler or polyester tape
Screen:
- Copper wire braid (CWB) R ≥ 80%
Outer sheath:
- Low smoke, zero halogen (LSZH)
- Colour: Grey
Core identification
Black cores printed with white numbers
Optional: with G/Y core.
Marking
NEXANS 279 Nber of cores & cross-section Cu EG CST 74 C 068 K3 SH 0.6/1(1.2) kV YYYY Manufacturing number + metric marking
Características
Características
Características de construcción
Características de construcción
Características dimensionales
Características dimensionales
Características eléctricas
Características eléctricas
Características de uso
Características de uso
Recursos
Recursos
Documentación
Selling & delivery Information
Minimum bending radius:
10 x outer diameter
To be doubled during laying operations
Marking
NEXANS 279 Nber of cores & cross-section Cu EG CST 74 C 068 K3 SH 0.6/1(1.2) kV YYYY Manufacturing number + metric marking
