ASNE 0293 XF
Descripción
Descripción
Estándares
-

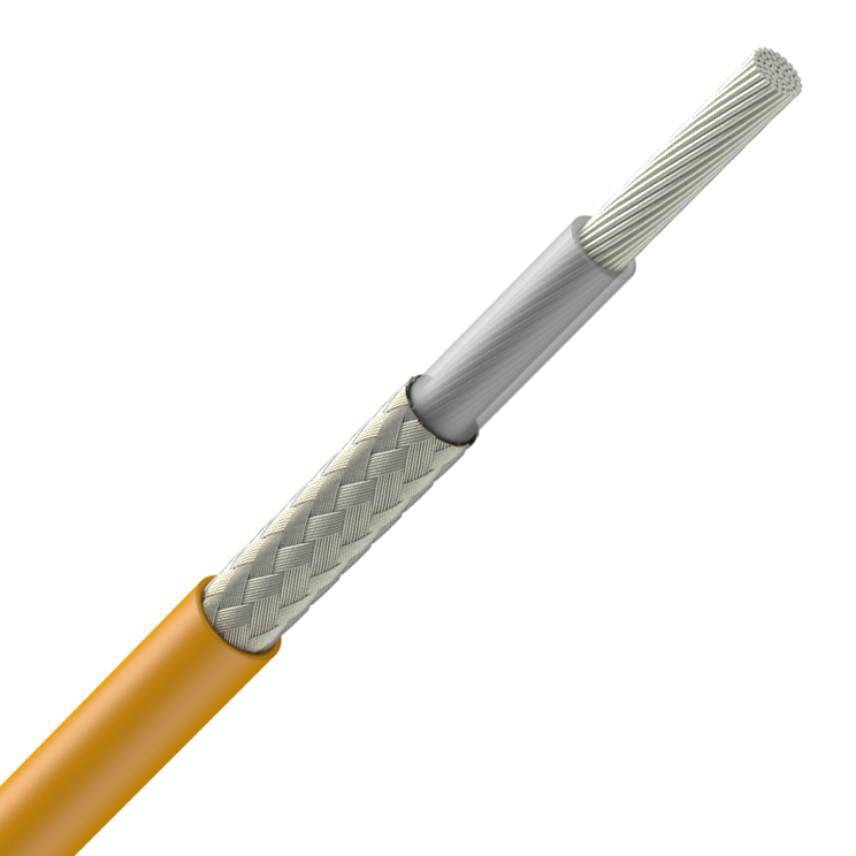

ProductASNE 0293 XF
CORE
Stranded conductor.
19 x 0.20 Silver plated copper
INSULATION
Extruded PTFE
Nominal diameter = 2.95 mm
SHIELD
Dual Silver plated copper braid
Strands diameter = 0.13 mm
Overall Diameter = 4.06 mm
JACKET
FEP
Max. diameter = 5.08 mm
Nom. Weight = 67 g/m
Electrical Characteristics
| Voltage rating | : 600V rms |
| Operating frequency | : up to 10 GHz |
| Maximum ohmic resistance of conductor | : 29.6 Ω/km |
| Charateristic impedance | : 50 ± 2 Ω |
| Nominal linear capacitance | : 95 pF/m at 1KHz |
| Nominal velocity of propagation | : 208 500 km/s (69.5 %) |
Attenuation and Power Handling
| Frequency | Max. Rated Power at 40°C | Mean Attenuation at 20°C |
| (MHz) | (W) | (dB/100m) |
| 10 | 3300 | 4.3 |
| 200 | 660 | 19 |
| 400 | 450 | 28 |
| 3000 | 150 | 95 |
| 10000 | 80 | 210 |
Características
Características
Características de uso
Características de uso
Temperatura ambiente de utilización (rango)
-65 ... 200 °C
Radio de curvatura mínimo - Instalado
50 mm
No propagación de la llama
FAR/JAR part 25 sec 25.869 (a)(4) Appendix F part 1 (3)
Resistencia a aceites
Buena
Acorde con normativa RoHs
Si
Recursos
Recursos
Selling & delivery Information
Color of Jacket: Brown
Green marking of the external sheath:
Marking text : "XF FR F **"
FR = Country of Origin (FR = France)
F = Manufacturer (F = Filotex ®)
** = Year of manufacturing (ie. 14 = 2014)
