EN 4604-004 WS
EN 4604-004 WS
50 Ohms, Coaxial Cable
Designed for high frequency signal transmission in aircraft radio communication systems.
Descripción
Descripción
Estándares
-
TestprEN 3475
-
InternationalprEN 4604-001, -002 and -004
Especially designed for high EMC performances.
Product designed according to to : prEN 4604-001, -002, -004.
Tested according to prEN 3475.

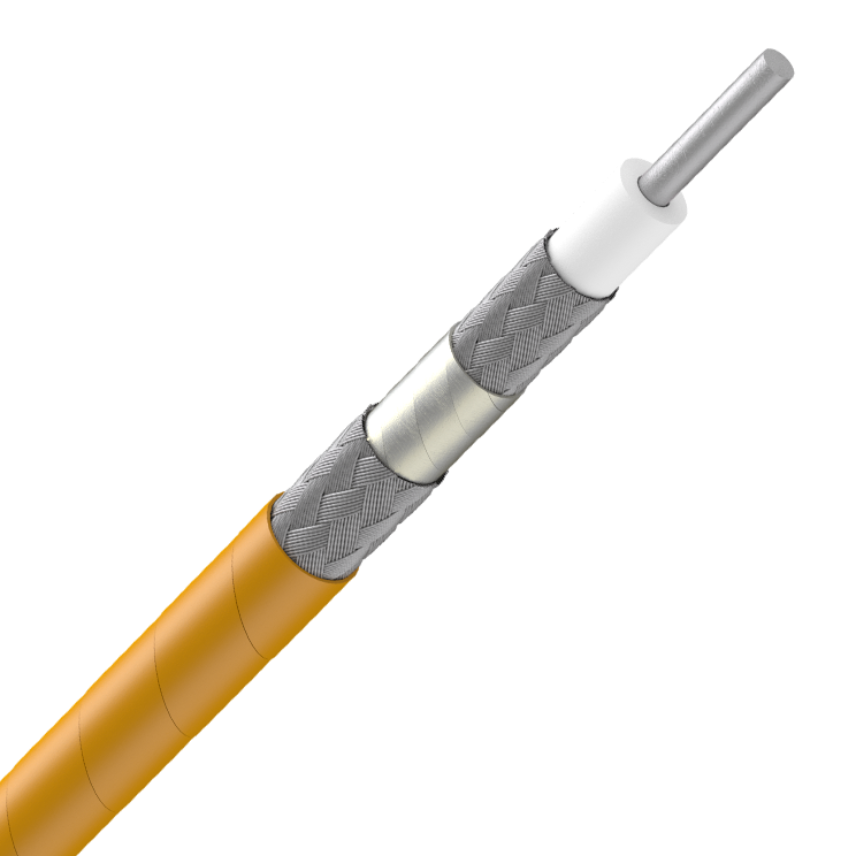

CORE
7 x 0.16 mm Strands
Silver plated copper
Diameter = 0.48 mm
INSULATION
Fluorocarbon
Diameter = 1.50 mm
SHIELD
1st layer
Silver plated copper braid
Strand diameter = 0.085 mm
2nd layer
High permeability tape
3rd layer
Silver plated copper braid
Strand diameter = 0.085 mm
Diameter = 2.20 ± 0.14 mm
JACKET
2 polyimide tapes
Diameter = 2.40 ± 0.16 mm
Max. weight = 20 g/m
Electrical Characteristics
| Operating frequency | : up to 3 GHz |
| Dielectric strength | : 1500Vac |
| Operating voltage | : 1300Vac |
| Isulation resistance | : ≥ 5000 MΩ.km |
| Characteristic impedance | : 50 ± 5 Ω |
| Linear capacitance | : 95 ± 10 pF/m |
| Nominal velocity of propagation | : 207 000 km/s (69% relative) |
| Transfer Impedance | : ≤ 45 mΩ/m up to 100 MHz |
Attenuation and Power Handling
| Frequency | Max. Rated Power | Max. Attenuation at 20°C |
| (MHz) | (W) | (dB/100m) |
| 50 | 600 | 26 |
| 100 | 400 | 36 |
| 200 | 270 | 55 |
| 400 | 180 | 78 |
| 1000 | 120 | 140 |
| 3000 | 75 | 195 |
Características
Características
Características de uso
Características de uso
Recursos
Recursos
Selling & delivery Information
Colour of jacket : Amber
Marking colour: Black
Marking text : " EN WS FRF** "
FR = Country of Origin (FR = France)
F = Manufacturer (F = Nexans)
(**) = Year of manufacturing (ie. 14 = 2014)
