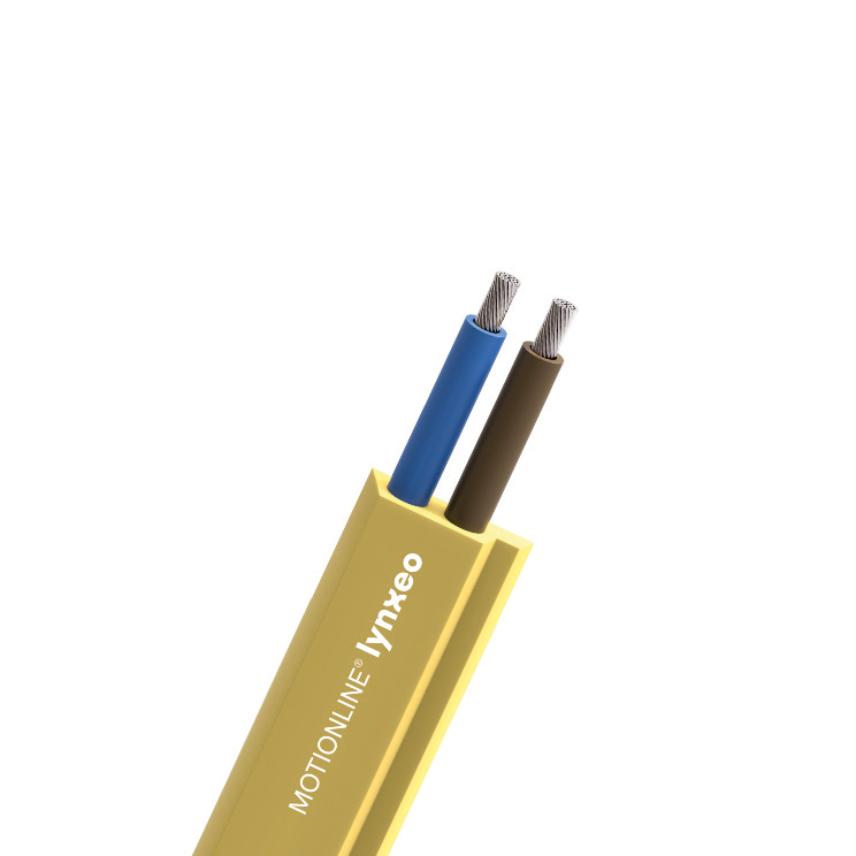

AS-INTERFACE RUBBER FLAT CABLE
AS-INTERFACE RUBBER FLAT CABLE 2x1,5 Yellow
Nexans ref. 48210165
- Packaging: Drum (1000m)
- 구조: 2 x 1.50
- Sheath colour: 노란색
- Copper content: 29 kg/km
- 무게(근사치): 70 kg/km
- Rated Voltage Uo/U: 32 V
AS-INTERFACE RUBBER FLAT CABLE 2x1,5 Black
Nexans ref. 48210116
- Packaging: Drum (1000m)
- 구조: 2 x 1.50
- Sheath colour: 검은색
- Copper content: 29 kg/km
- 무게(근사치): 70 kg/km
- Rated Voltage Uo/U: 48 V
AS-INTERFACE RUBBER FLAT CABLE 2x2,5 Yellow
Nexans ref. 48213165
- Packaging: Drum (1000m)
- 구조: 2 x 2.50
- Sheath colour: 노란색
- Copper content: 48 kg/km
- 무게(근사치): 84 kg/km
- Rated Voltage Uo/U: 32 V
AS-INTERFACE RUBBER FLAT CABLE 2x2,5 Black
Nexans ref. 48213115
- Packaging: Drum (1000m)
- 구조: 2 x 2.50
- Sheath colour: 검은색
- Copper content: 48 kg/km
- 무게(근사치): 84 kg/km
- Rated Voltage Uo/U: 48 V
Description
Description
Rubber Jacket; flame retardant, resistant to hydrolysis and microbes, PVC- and halogen-free
Characteristics
Characteristics
구조적 특성
구조적 특성
도체 재료
Bending-resistant conductor with tinned copper wires
절연
고무
Insulation colour
Brown-Blue
피복
고무
전기적 특성
전기적 특성
시험전압
300 V
사용 특성
사용 특성
Field of application
Fixed installations
Minimum Bending Radius during installation
9 (xD)
Storage temperature, range
-40 ... 80 °C
操作温度范围
-40 ... 85 °C
Oil resistance
EN 50363-4-1
