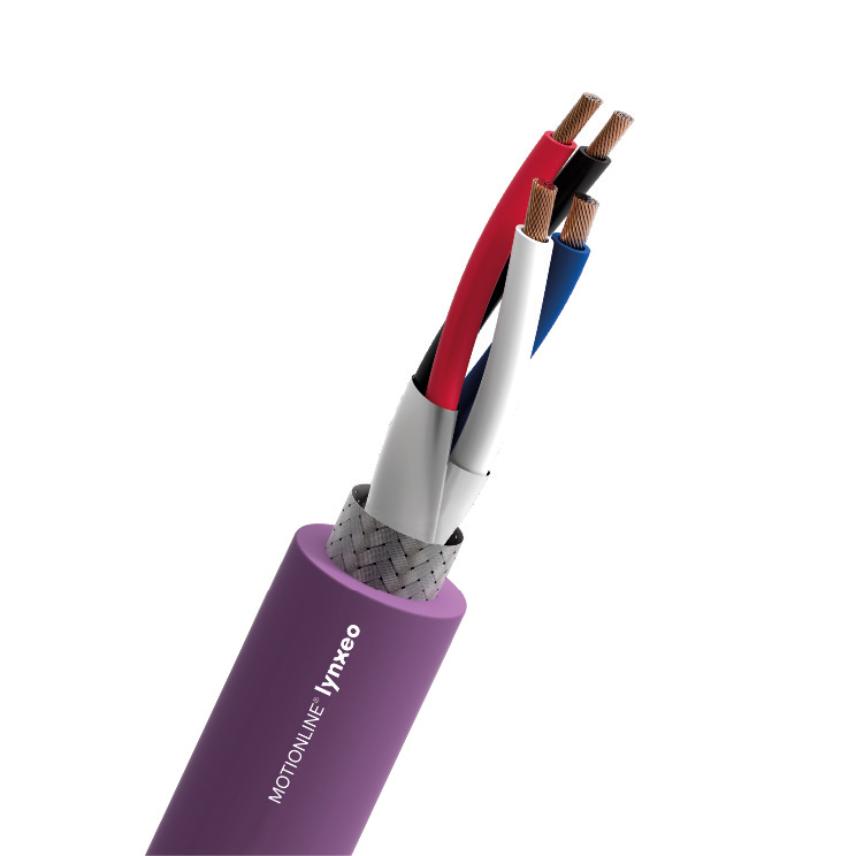

DEVICENET PVC CABLES
DEVICENET PVC CABLES
DeviceNet cables with PVC jacket for fixed installation, shielded, flame retardant
Read moreDEVICENET PVC (1x2x0.34+1x2x0.22)C
Nexans ref. 10553018 - Country ref. 13-DRW22Z04R
- Packaging: Cut to length (m)
- 구조: (1x2x0.34+1x2x0.22)C
- Nominal outer diameter: 7.0 mm
- Copper content: 28 kg/km
- 무게(근사치): 58 kg/km
DEVICENET PVC (1x2x1.8+1x2x1)C
Nexans ref. 13-DRW15Z04R - Country ref. 13-DRW15Z04R
- Packaging: Drum (500m)
- 구조: (1x2x1.8+1x2x1)C
- Nominal outer diameter: 11.8 mm
- Copper content: 88 kg/km
- 무게(근사치): 155 kg/km
Description
Description
Standards
-
ProductUL and CSA approval
Applications
DeviceNet is one of the world´s leading device-level neworks for industrial automation. This bus system offers data transmission and power supply in one cable. The special twisting design allows higher bending cycles than competiors traditional parallel twisting.
Normative references
UL recognized
CSA approval
bus
Characteristics
Characteristics
구조적 특성
구조적 특성
도체 재료
Stranded tinned copper
절연
폼 스킨
Insulation colour
Red, black, white, blue
Drain wire
트위스팅 주석 도금 구리
Individual screen
Aluminium / Polyester tape
Shielding
70% tinned copper coverage
Taping
Non woven tape
피복
폴리염화비닐
Sheath colour
Violet RAL 4001
전기적 특성
전기적 특성
Rated Voltage Uo/U
300 V
Characteristic impedance
120 Ohm
시험전압
1500 V
사용 특성
사용 특성
Field of application
Static
操作温度范围
-25 ... 80 °C
Storage temperature, range
-40 ... 80 °C
난연
IEC/EN 60332-1-2; FT1; UL 1581 FT1
