PROFINET TYPE C CABLES

Products

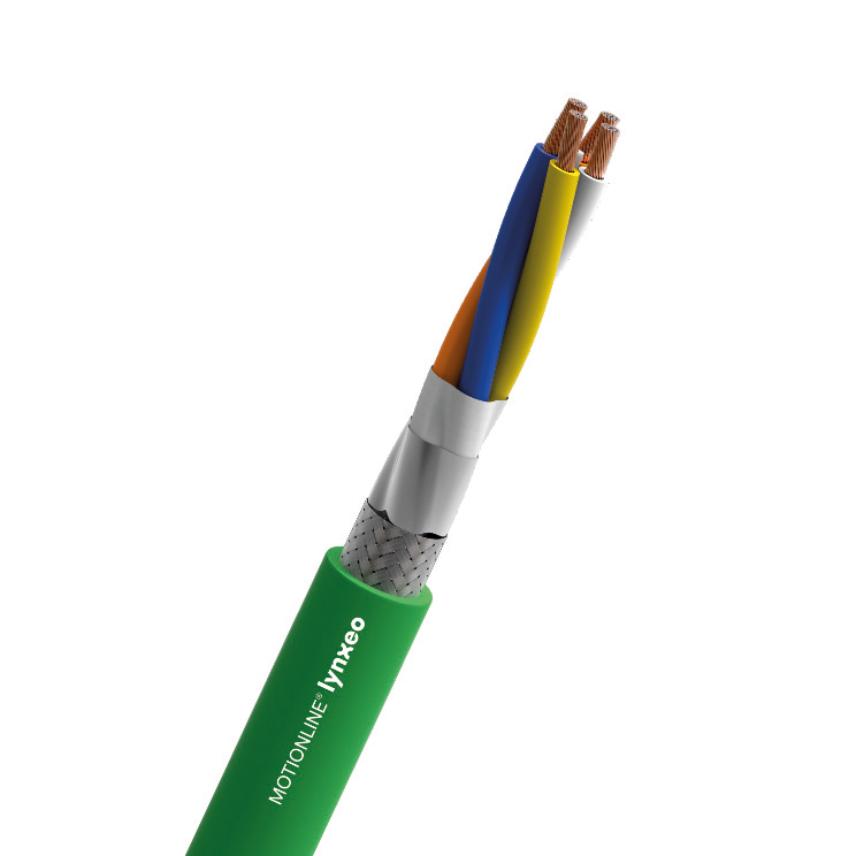

PROFINET TYPE C 1x(4xAWG22/7)C

Nexans ref. 10552821 - Country ref. 13-DRX22Q01P-V1

  • Packaging: Cut to length (m)



Description

Description

Standards

  • Product
    UL and CSA approval

Profinet cable with pur jacket for drag chain applications, shielded, oil resistant



Application

Profinet cables are designed for Data networks in industrial environments.
Profinet Type C cables are made for dynamic applications



Construction

  1. Conductor:  bare copper AWG22/7
  2. Insulation: Polyolefin compound
    Four insulated conductors twisted to a quad.
  3. Inner jacket - Bedding TPE-O
  4. Screen: ALU/PET foil
    Alu outside
  5. Tinned copper braid
  6. Jacket: See products


Environment

Designed to reduce the environmental impact, Nexans cables are compliant with RoHS 2011/65 Directive and European Reach 1907/2006/EC regulation.

Characteristics

Characteristics

구조적 특성

구조적 특성

구조
1x(4xAWG22/7)
도체 재료
베어 구리 와이어
절연
폴리올레핀
Insulation colour
White, Orange, Blue, Yellow
내피
TPE-O
Taping
Polyester / Alu tape (Alu outside)
Shielding
80% tinned copper braid coverage
Separator
Non woven tape
피복
Polyurethane compound
Sheath colour
Green RAL 6018

치수

치수

Nominal outer diameter
6.6 mm
Copper content
28 kg/km
무게(근사치)
72 kg/km

전기적 특성

전기적 특성

Rated Voltage Uo/U
30 V
시험전압
2500 V
Characteristic impedance
100 Ohm

Transmission characteristics

Transmission characteristics

Attenuation, max. 1 MHz
3.2 dB/1000m
Attenuation at 4 MHz
6.5 dB/100m
Attenuation, max. 10 MHz
9.9 dB/100m
Attenuation, max. 16 MHz
12.3 dB/100m
Attenuation, max. 20 MHz
13.8 dB/100m
Attenuation, max. 100 MHz
33.00 dB/100m

기계적 특성

기계적 특성

Bending cycles
3 Mio.
Speed
200 m/min
Maximum acceleration
4 m/s²

사용 특성

사용 특성

Field of application
Dynamic
Minimum dynamic operating bending radius
15 (xD)
操作温度范围
-30 ... 80 °C
Storage temperature, range
-40 ... 80 °C
난연
IEC 60332-1
Oil resistance
EN 60811-2-1
