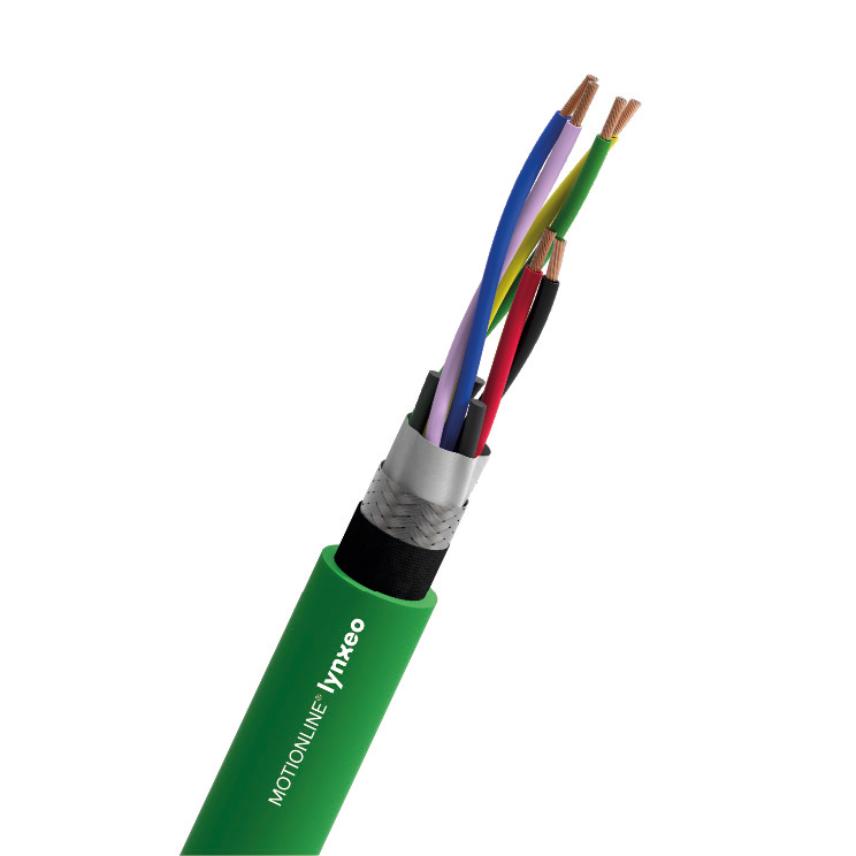

MEASURING SYSTEMS - Siemens® standard Drive CliQ
MEASURING SYSTEMS - Siemens® standard Drive CliQ
Digital feddback cables according to SIEMENS DRIVE CLiQ standard
Read moreDRIVE CLIQ (2x2x0.15+1x2x0.38)C PUR
Nexans ref. 10554365 - Country ref. 13-MYS22X06P-V1
- Packaging: Cut to length (m)
- 구조: (2x2x0.15+2x0.38)C
- 피복: PUR
- Nominal outer diameter: 7.0 mm
- Copper content: 37 kg/km
- 무게(근사치): 67 kg/km
- Maximum acceleration: 5 m/s²
- Bending cycles: 5 Mio.
- Speed: 180 m/min
- Field of application: Dynamic
- Minimum dynamic operating bending radius: 10 (xD)
- Storage temperature, range: -50 ... 80 °C
DRIVE CLIQ (2x2x0.22+1x2x0.38)C PVC
Nexans ref. 10554179 - Country ref. 13-MYS22X06R-V2
- Packaging: Cut to length (m)
- 구조: (2x2x0.22+1x2x0.38)C
- 피복: 폴리염화비닐
- Nominal outer diameter: 7.2 mm
- Copper content: 37 kg/km
- 무게(근사치): 66 kg/km
- Maximum acceleration: 2 m/s²
- Bending cycles: .1 Mio.
- Speed: 30 m/min
- Field of application: Dynamic
- Minimum dynamic operating bending radius: 15 (xD)
- Storage temperature, range: -40 ... 80 °C
DRIVE CLIQ (2x2x0,22)C PVC
Nexans ref. 10554181 - Country ref. 13-MYS24P02R-V1
- Packaging: Cut to length (m)
- 구조: (2x2x0.22)C
- 피복: 폴리염화비닐
- Nominal outer diameter: 6.85 mm
- Copper content: 25 kg/km
- 무게(근사치): 57 kg/km
- Maximum acceleration: - m/s²
- Bending cycles: - Mio.
- Speed: -
- Field of application: Fixed installations
- Minimum dynamic operating bending radius: 7.5 (xD)
- Storage temperature, range: -50 ... 80 °C
Description
Description
Standards
-
ProductUL and CSA approval
Design
Element 2x2x0.22 mm²
Conductor
Bare copper stranded
Insulation
Foam-skin PE
Colour code
(Blu + Pink)+(Yellow + Green)
Element 2x2x0.15 mm²
Conductor
Bare stranded copper
Insulation
Foam-skin PE
Colour code
(Blu + Pink)+(Yellow + Green)
Element 1x2x0.38 mm²
Conductor
Tinned stranded copper
Insulation
Polyolefin
Colour code
(Red + Black)
Characteristics
Characteristics
구조적 특성
구조적 특성
도체 재료
베어 구리 와이어
절연
폴리올레핀
Insulation colour
See Tab
Lay Up
Please request detailed data sheet
Shielding
≥85% tinned copper braid coverage
Taping
Non woven tape
Sheath colour
Green RAL 6018
전기적 특성
전기적 특성
Rated Voltage Uo/U
30 V
시험전압
500 V
사용 특성
사용 특성
操作温度范围
-20 ... 80 °C
Oil resistance
EN 50363-10-2
난연
IEC/EN 60332-1-2; FT1; UL 1581 FT1
