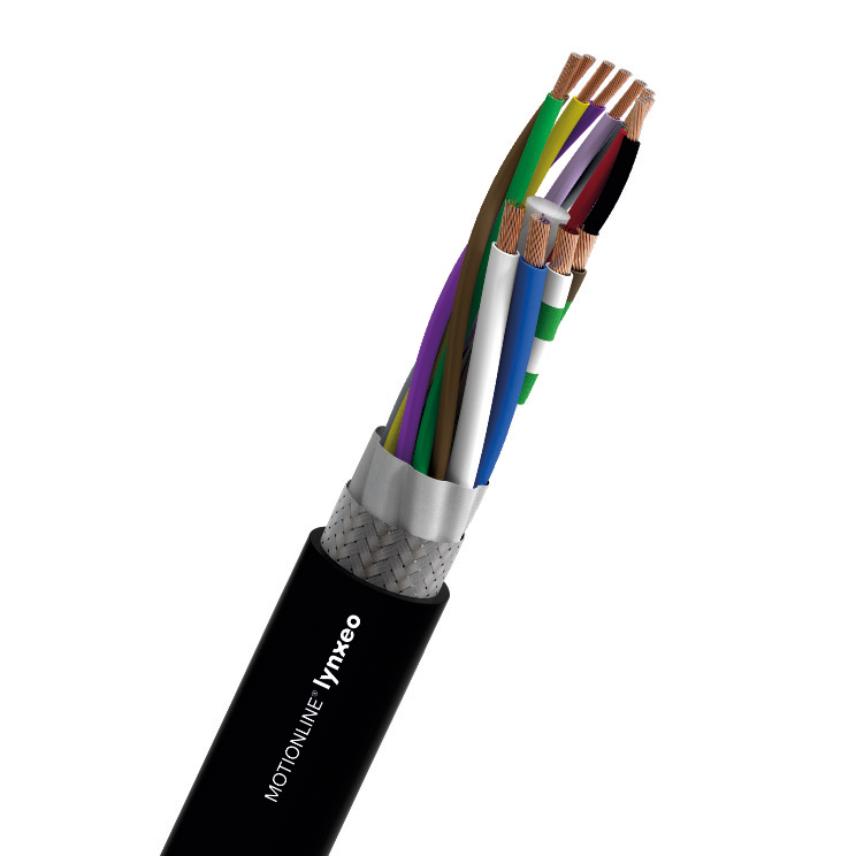

MEASURING SYSTEM CABLES ACC. TO HEIDNEHAIN® STANDARD
MEASURING SYSTEM CABLES ACC. TO HEIDNEHAIN® STANDARD
Measuring systems cables for very dynamic applications. MOTIONLINE® ADVANCED
Read moreMEASURING SYSTEM CABLES HEIDNEHAIN® (1x(4x0,14)+4x0,34)C
Product ref. 49498270
- Packaging: Drum (1000m)
Description
Description
Standards
-
ProductUL and CSA approval
For very dynamic applications; PUR Jacket, shielded, resistant to oils and coolants, notch resistant, flame retardant, resistant to hydrolysis and microbes, PVC- and halogen-free
Characteristics
Characteristics
구조적 특성
구조적 특성
구조
(1x(4x0,14)+4x0,34)C
도체 재료
주석 도금 구리 와이어
절연
TPM with very low capacitance
Insulation colour
See Tab
스크린
Tinned copper braid coverage > 85%
피복
PUR
Sheath colour
Green RAL 6018
Halogen free
예
치수
치수
Copper content
35 kg/km
무게(근사치)
72 kg/km
외경
7.3 mm
전기적 특성
전기적 특성
Rated Voltage Uo/U
30 V
시험전압
1500 V
기계적 특성
기계적 특성
Bending cycles
5 Mio.
Speed
180 m/min
Maximum acceleration
20 m/s²
사용 특성
사용 특성
Field of application
Dynamic
Minimum dynamic operating bending radius
10 (xD)
操作温度范围
-15 ... 80 °C
Storage temperature, range
-40 ... 80 °C
난연
IEC 60332-1-2; UL 1581 FT1
Oil resistance
EN 50363-10-2
