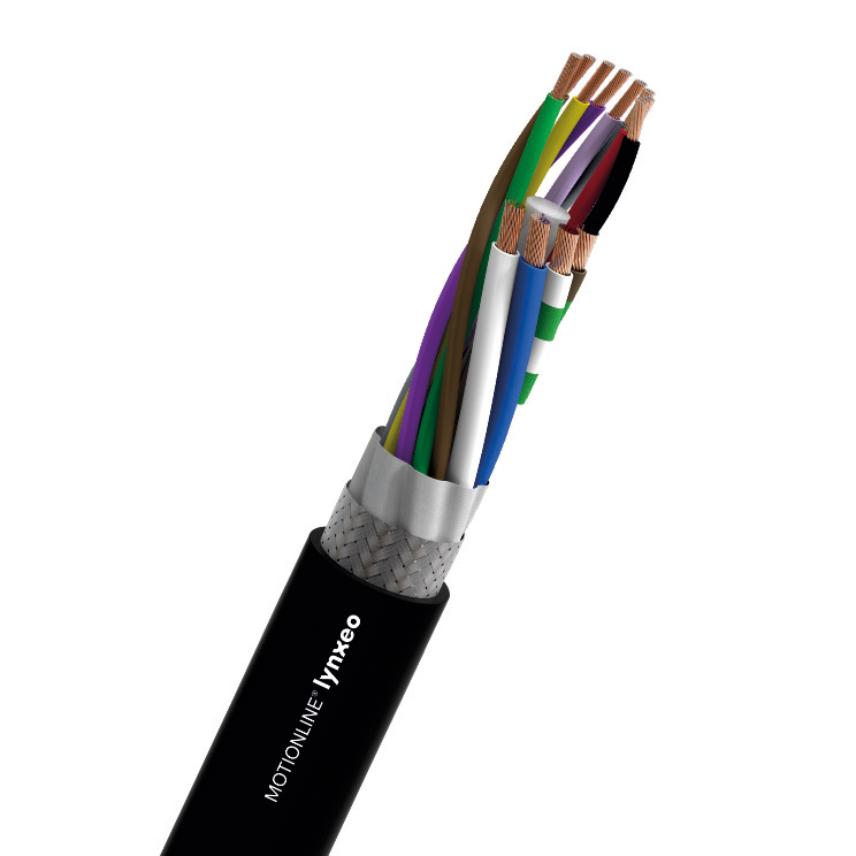

Measuring systems cables according to Heidenhain standard for static and dynamic applications, PUR jacket, shielded, resistant to oils, halogen-free
Read more
Description
Description
Normative References:
Oil resistance:
EN 60811-2-1
Toxicity:
Halogen free
Design
Conductors material:
Tinned copper
Power: 4x0,5 mm²
Insulation
Polypropylene compound
Colour code
White, Blue, White/Green, Brown/Green
Signal: 4x2x0,14 mm²
Insulation
Polypropylene compound
Colour code
Red, Black, Grey, Pink, Yellow, Violet, Brown, Green
Characteristics
Characteristics
구조적 특성
구조적 특성
도체 재료
주석 도금 구리 와이어
구조
(4x2x0.14+4x0.5)C
절연
폴리프로필렌
Insulation colour
See Tab
Taping
Non woven tape
Shielding
80% tinned copper braid coverage
피복
PUR
Sheath colour
검은색
Halogen free
예
치수
치수
Nominal outer diameter
7.6 mm
무게(근사치)
78 kg/km
전기적 특성
전기적 특성
Rated Voltage Uo/U
300 V
시험전압
1500 V
기계적 특성
기계적 특성
Maximum acceleration
2.5 m/s²
Bending cycles
1 Mio.
사용 특성
사용 특성
Field of application
Static and dynamic
Minimum dynamic operating bending radius
10 (xD)
Storage temperature, range
-40 ... 80 °C
操作温度范围
-20 ... 80 °C
Oil resistance
IEC 60811-2-1
