SERVO CABLES FOR ROBOT APPLICATION
SERVO CABLES FOR ROBOT APPLICATION

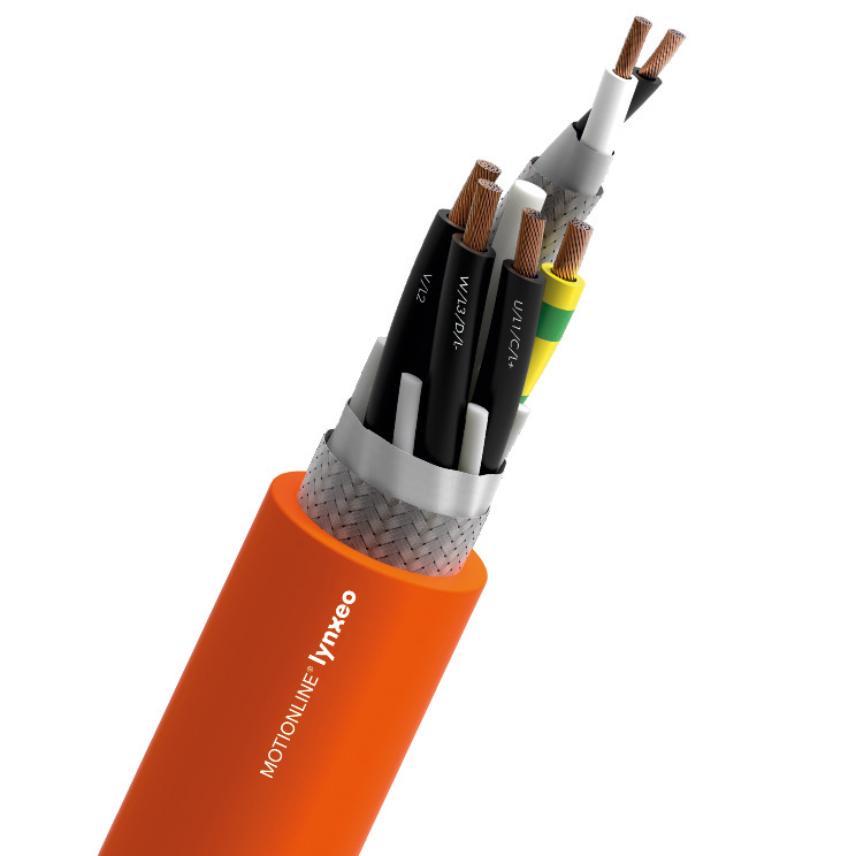

Servo cables for extrem torsion applications MOTIONLINE® PREMIUM
Read moreSERVO CABLES FOR ROBOT APPLICATION (4x1,0+2x(2x0,75)StC)D
Nexans ref. 49280161
- Packaging: Drum (1000m)
- 구조: (4x1,0+2x(2x0,75)StC)D
- Sheath colour: Orange RAL 2003
- 외경: 12.5 mm
- Copper content: 138 kg/km
- 무게(근사치): 212 kg/km
SERVO CABLES FOR ROBOT APPLICATION (4x2,5+2x1,0)D
Nexans ref. 49400410
- Packaging: Drum (1000m)
- 구조: (4x2,5+2x1,0)D
- Sheath colour: Black - RAL 9005
- 외경: 11.9 mm
- Copper content: 149 kg/km
- 무게(근사치): 221 kg/km
Description
Description
Standards
-
ProductUL and CSA approval
Motor cables for extrem torsion applications; PUR jacket, TPM insulation, screened, resistant to oils and coolants, notch resistant, flame retardant, resistant to hydrolysis and microbes, PVC- and halogen-free.
Characteristics
Characteristics
구조적 특성
구조적 특성
도체 재료
Bending-resistant conductor with bare copper wires
절연
TPM with very low capacitance
Lay Up
power cores and pair stranded with fillers and wrapped
스크린
Tinned copper spiral, coverage ≥ 90%
피복
PUR
Halogen free
예
전기적 특성
전기적 특성
Rated Voltage Uo/U
0.6/1 kV
시험전압
4000 V
기계적 특성
기계적 특성
Torsion test max. +/- 4 turns for 10 meters
180°/m
Bending cycles
5 Mio.
Speed
180° / s
사용 특성
사용 특성
Field of application
Dynamic
操作温度范围
-30 ... 80 °C
Storage temperature, range
-40 ... 80 °C
난연
IEC 60332-1-2; UL 1581 FT1
Oil resistance
DIN EN 50363-10-2 & DIN EN 60811-404
