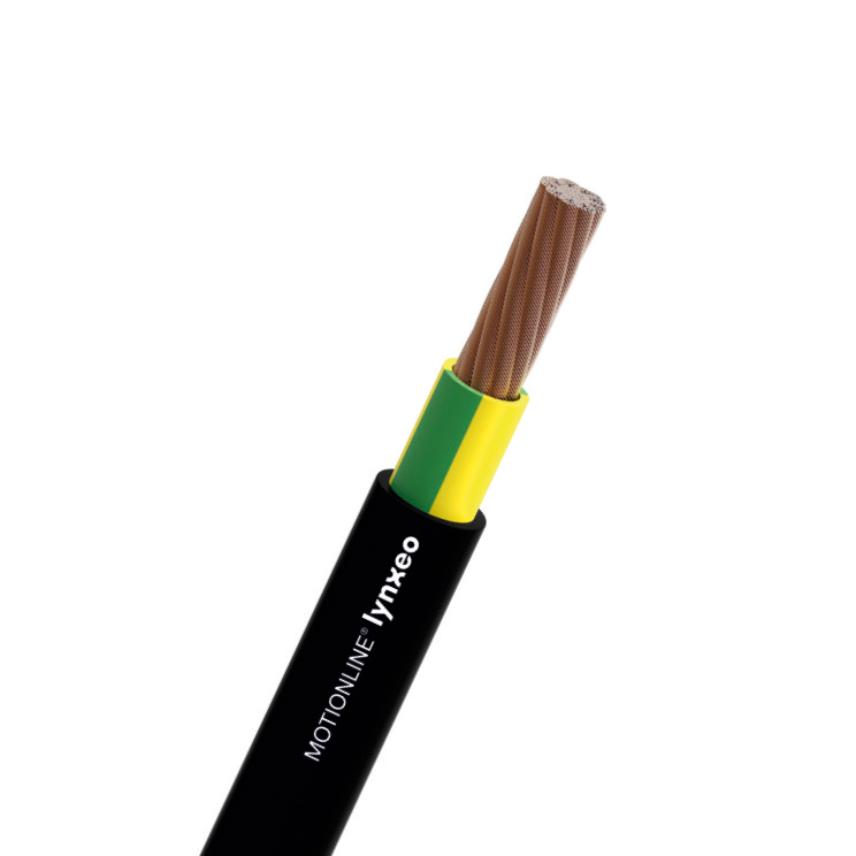

SINGLE CORE POWER CABLES FOR ROBOT APPLICATION

Single core power cables for extreme torsion applications MOTIONLINE® PREMIUM

Datasheet PDF

Products

Description

Standards

Product

UL and CSA approval

Single core power cables for extreme torsion applications; PUR jacket, TPM insulation, resistant to oils and coolants, notch resistant, flame retardant, resistant to hydrolysis and microbes, PVC- and halogen-free.

Characteristics

구조적 특성

도체 재료

Bending-resistant conductor with bare copper wires

절연

TPM with very low capacitance

피복

PUR

Sheath colour

Black - RAL 9005

Halogen free

예

전기적 특성

Rated Voltage Uo/U

0.6/1 kV

시험전압

4000 V

기계적 특성

Torsion test max. +/- 4 turns for 10 meters

180°/m

Bending cycles

5 Mio.

Speed

180° / s

사용 특성

Field of application

Dynamic

操作温度范围

-30 ... 80 °C

Storage temperature, range

-40 ... 80 °C

난연

IEC 60332-1-2; UL 1581 FT1

Oil resistance

DIN EN 50363-10-2 & DIN EN 60811-404
