MOTIONLINE® PREMIUM SERVO 90 - SIEMENS STANDARD 6FX8008PLUS
MOTIONLINE® PREMIUM SERVO 90 - SIEMENS STANDARD 6FX8008PLUS

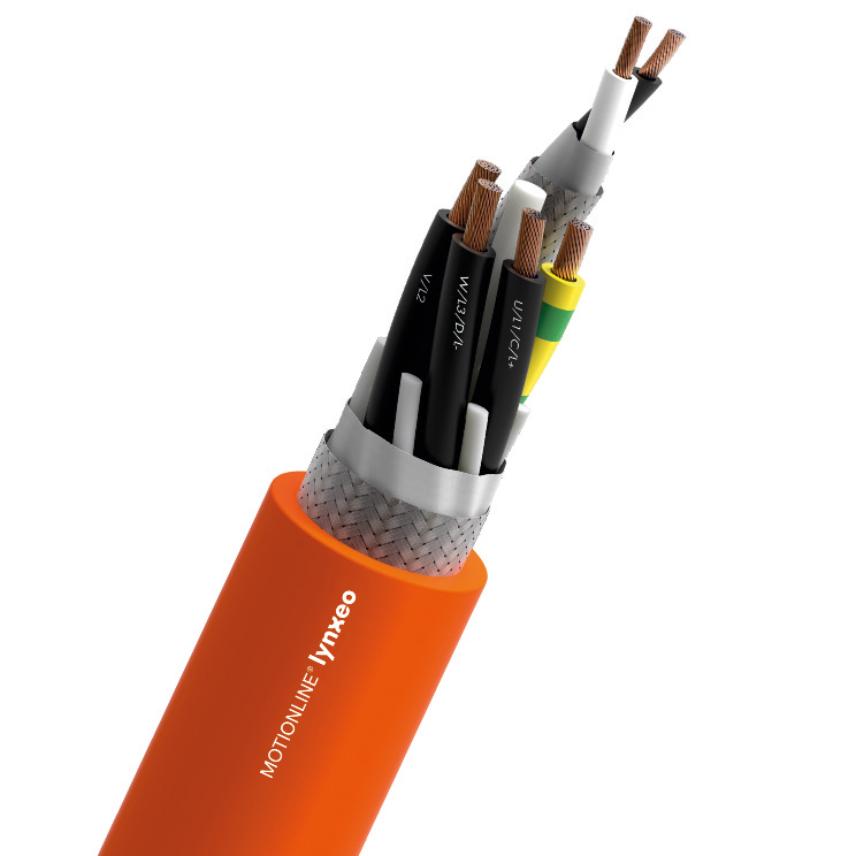

Servo cables with and without control pair, suitable for SIEMENS Standard 6FX8008PLUS for extremely dynamic application, PUR jacket, shielded, resistant to oils, flame retardant, halogen-free. Conform to Reach and RoHs. These cables can withstand operating temperatures up to 90°. Suitable for Variable Frequency Drive (VFD) system.
Read moreP90° (4G1,0)C
Product ref. 10565719
- Packaging: Drum (1000m)
- 구조: (4G1)C
- Insulation colour: Black - white marking U/L1/C/L + V/L2 W/L3/D/L - Yellow/Green
- Nominal outer diameter: 8.1 mm
- Copper content: 69 kg/km
- 무게(근사치): 104 kg/km
- Minimum dynamic operating bending radius: 7.5 (xD)
P90° (4G1,5)C
Product ref. 10565730
- Packaging: m
- 구조: (4G1,5)C
- Insulation colour: Black - white marking U/L1/C/L + V/L2 W/L3/D/L - Yellow/Green
- Nominal outer diameter: 9.1 mm
- Copper content: 98 kg/km
- 무게(근사치): 150 kg/km
- Minimum dynamic operating bending radius: 7.5 (xD)
P90° (4G2,5)C
Product ref. 10565731
- Packaging: m
- 구조: (4G2,5)C
- Insulation colour: Black - white marking U/L1/C/L + V/L2 W/L3/D/L - Yellow/Green
- Nominal outer diameter: 10.6 mm
- Copper content: 145 kg/km
- 무게(근사치): 220 kg/km
- Minimum dynamic operating bending radius: 7.5 (xD)
P90° (4G1,5+(2x1,5)C)C
Product ref. 10561457
- Packaging: m
- 구조: (4G1.5 + (2x1.5)C)C
- Insulation colour: Power: U/L1/C/L+ V/L2 W/L3/D/L- Ye/GN; Signal: Black - White
- Nominal outer diameter: 11.6 mm
- Copper content: 165 kg/km
- 무게(근사치): 230 kg/km
- Minimum dynamic operating bending radius: 7.5 (xD)
P90° (4G4)C
Product ref. 10565732
- Packaging: m
- 구조: (4G4)C
- Insulation colour: Black - white marking U/L1/C/L + V/L2 W/L3/D/L - Yellow/Green
- Nominal outer diameter: 11.9 mm
- Copper content: 215 kg/km
- 무게(근사치): 300 kg/km
- Minimum dynamic operating bending radius: 7.5 (xD)
P90° (4G2,5+(2x1,5)C)C
Product ref. 10565713
- Packaging: m
- 구조: (4G2.5 + (2x1.5)C)C
- Insulation colour: Power: U/L1/C/L+ V/L2 W/L3/D/L- Ye/GN; Signal: Black - White
- Nominal outer diameter: 13.4 mm
- Copper content: 208 kg/km
- 무게(근사치): 300 kg/km
- Minimum dynamic operating bending radius: 7.5 (xD)
P90° (4G6)C
Product ref. 10565733
- Packaging: m
- 구조: (4G6)C
- Insulation colour: Black - white marking U/L1/C/L + V/L2 W/L3/D/L - Yellow/Green
- Nominal outer diameter: 14.5 mm
- Copper content: 345 kg/km
- 무게(근사치): 450 kg/km
- Minimum dynamic operating bending radius: 7.5 (xD)
P90° (4G4+(2x1,5)C)C
Product ref. 10565714
- Packaging: m
- 구조: (4G4 + (2x1.5)C)C
- Insulation colour: Power: U/L1/C/L+ V/L2 W/L3/D/L- Ye/GN; Signal: Black - White
- Nominal outer diameter: 14.8 mm
- Copper content: 286 kg/km
- 무게(근사치): 380 kg/km
- Minimum dynamic operating bending radius: 7.5 (xD)
P90° (4G6+(2x1,5)C)C
Product ref. 10561458
- Packaging: m
- 구조: (4G6 + (2x1.5)C)C
- Insulation colour: Power: U/L1/C/L+ V/L2 W/L3/D/L- Ye/GN; Signal: Black - White
- Nominal outer diameter: 16.8 mm
- Copper content: 402 kg/km
- 무게(근사치): 530 kg/km
- Minimum dynamic operating bending radius: 7.5 (xD)
P90° (4G10)C
Product ref. 10565734
- Packaging: m
- 구조: (4G10)C
- Insulation colour: Black - white marking U/L1/C/L + V/L2 W/L3/D/L - Yellow/Green
- Nominal outer diameter: 17.5 mm
- Copper content: 531 kg/km
- 무게(근사치): 660 kg/km
- Minimum dynamic operating bending radius: 7.5 (xD)
P90° (4G10+(2x1,5)C)C
Product ref. 10565715
- Packaging: m
- 구조: (4G10 + (2x1.5)C)C
- Insulation colour: Power: U/L1/C/L+ V/L2 W/L3/D/L- Ye/GN; Signal: Black - White
- Nominal outer diameter: 19.4 mm
- Copper content: 615 kg/km
- 무게(근사치): 765 kg/km
- Minimum dynamic operating bending radius: 7.5 (xD)
P90° (4G16)C
Product ref. 10565735
- Packaging: m
- 구조: (4G16)C
- Insulation colour: Black - white marking U/L1/C/L + V/L2 W/L3/D/L - Yellow/Green
- Nominal outer diameter: 21.6 mm
- Copper content: 832 kg/km
- 무게(근사치): 1010 kg/km
- Minimum dynamic operating bending radius: 7.5 (xD)
P90° (4G16+(2x1,5)C)C
Product ref. 10565716
- Packaging: Cut to length (m)
- 구조: (4G16 + (2x1.5)C)C
- Insulation colour: Power: U/L1/C/L+ V/L2 W/L3/D/L- Ye/GN; Signal: Black - White
- Nominal outer diameter: 23.1 mm
- Copper content: 890 kg/km
- 무게(근사치): 1090 kg/km
- Minimum dynamic operating bending radius: 7.5 (xD)
P90° (4G25)C
Product ref. 10565736
- Packaging: m
- 구조: (4G25)C
- Insulation colour: Black - white marking U/L1/C/L + V/L2 W/L3/D/L - Yellow/Green
- Nominal outer diameter: 25.2 mm
- Copper content: 1215 kg/km
- 무게(근사치): 1420 kg/km
- Minimum dynamic operating bending radius: 10 (xD)
P90° (4G25+(2x1,5)C)C
Product ref. 10561459
- Packaging: m
- 구조: (4G25 +(2x1.5)C)C
- Insulation colour: Power: U/L1/C/L+ V/L2 W/L3/D/L- Ye/GN; Signal: Black - White
- Nominal outer diameter: 26.6 mm
- Copper content: 1276 kg/km
- 무게(근사치): 1530 kg/km
- Minimum dynamic operating bending radius: 10 (xD)
P90° (4G35)C
Product ref. 10565737
- Packaging: Cut to length (m)
- 구조: (4G35)C
- Insulation colour: Black - white marking U/L1/C/L + V/L2 W/L3/D/L - Yellow/Green
- Nominal outer diameter: 28.6 mm
- Copper content: 1506 kg/km
- 무게(근사치): 1960 kg/km
- Minimum dynamic operating bending radius: 10 (xD)
P90° (4G35+(2x1,5)C)C
Product ref. 10565717
- Packaging: Cut to length (m)
- 구조: (4G35 +(2x1.5)C)C
- Insulation colour: Power: U/L1/C/L+ V/L2 W/L3/D/L- Ye/GN; Signal: Black - White
- Nominal outer diameter: 30.9 mm
- Copper content: 1701 kg/km
- 무게(근사치): 2040 kg/km
- Minimum dynamic operating bending radius: 10 (xD)
P90° (4G50)C
Product ref. 10565738
- Packaging: Cut to length (m)
- 구조: (4G50)C
- Insulation colour: Black - white marking U/L1/C/L + V/L2 W/L3/D/L - Yellow/Green
- Nominal outer diameter: 33.4 mm
- Copper content: 2153 kg/km
- 무게(근사치): 2700 kg/km
- Minimum dynamic operating bending radius: 10 (xD)
P90° (4G50+(2x1,5)C)C
Product ref. 10565718
- Packaging: Cut to length (m)
- 구조: (4G50 + (2x1.5)C)C
- Insulation colour: Power: U/L1/C/L+ V/L2 W/L3/D/L- Ye/GN; Signal: Black - White
- Nominal outer diameter: 34.0 mm
- Copper content: 2387 kg/km
- 무게(근사치): 2760 kg/km
- Minimum dynamic operating bending radius: 10 (xD)
Description
Description
Standards
-
ProductUL and CSA approval
UL Recognized / CSA
UL AWM 90°C, 1000V
CSA AWM I/II A/B 90°C, 1000V
Oil Resistance:
EN 50363-10-2, EN 60811-2-1
Flame Resistance:
IEC 60331-1-2; UL Cable Flame, CSA FT1
Toxicity:
Halogen free
Design
Conductor
Bare copper class 6
Core insulation
XLPE
Core stranding
Power cores stranded with fillers
Core identification
Power: U/L1/C/L+; V/L2; W/L3/D/L-; GN/YE;
Signal: Black + White
Shield
Total shield:
Tinned copper braid, coverage ≥ 80%
Pairs shield:
Tinned copper braid, coverage ≥ 80%
Jacket
PUR
Colour:
Orange RAL 2003
Characteristics
Characteristics
구조적 특성
구조적 특성
도체 재료
Bare copper class 6
절연
XLPE
Lay Up
The elements are assembled to form cable core, with fillers if necessary
Taping
Non woven tape
Shielding
80% tinned copper braid coverage
피복
PUR
Sheath colour
Orange RAL 2003
Halogen free
예
전기적 특성
전기적 특성
Rated Voltage Uo/U
0.6/1 kV
시험전압
4000 V
기계적 특성
기계적 특성
Maximum acceleration
50 m/s²
Bending cycles
10 Mio.
Speed
300 m/min
사용 특성
사용 특성
Field of application
Dynamic
操作温度范围
-30 ... 90 °C
Storage temperature, range
-50 ... 90 °C
Oil resistance
EN 50363-10-2 , EN 60811-2-1
난연
IEC 60332-1-2 , UL Cable Flame , CSA , FT1
