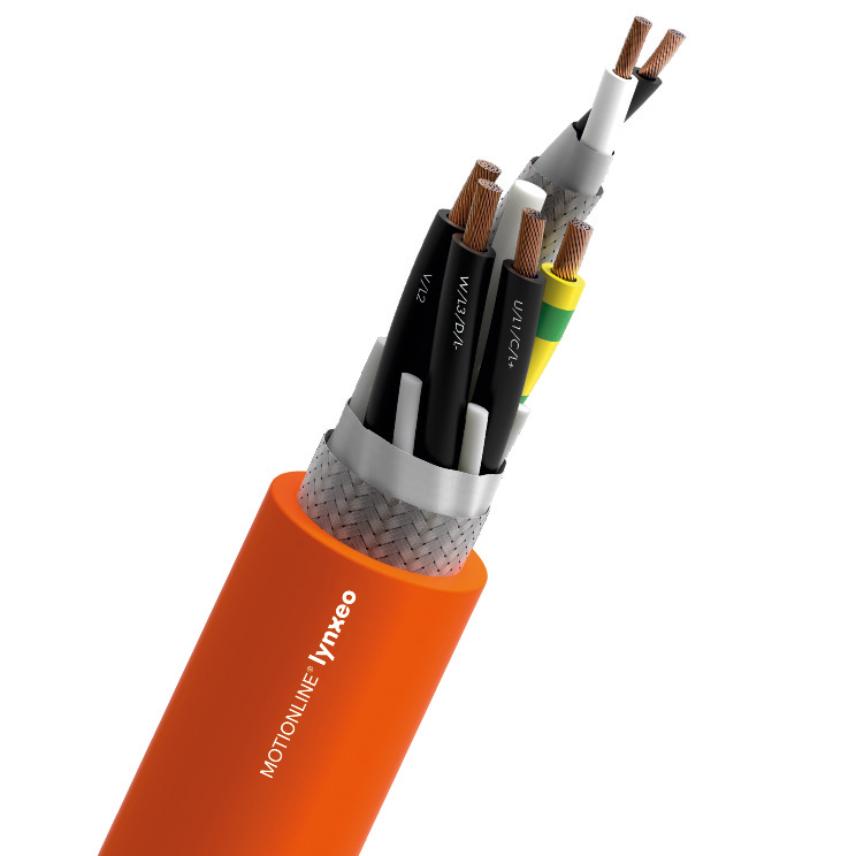

MOTIONLINE® ADVANCED SERVO 90
MOTIONLINE® ADVANCED SERVO 90
Servo cables with enhanced performance, for dynamic applications, PVC jacket, shielded, resistant to oils, flame retardant.
Read moreSERVO PVC (4G1,5)
Product ref. 10580433
- Packaging: Cut to length (m)
- Nominal outer diameter: 9.1 mm
- Copper content: 94 kg/km
- 무게(근사치): 130 kg/km
SERVO PVC (4G2,5)
Product ref. 10580434
- Packaging: Cut to length (m)
- Nominal outer diameter: 10.6 mm
- Copper content: 145 kg/km
- 무게(근사치): 188 kg/km
SERVO PVC (4G1,5+(2x1,5))
Product ref. 10580439
- Packaging: Cut to length (m)
- Nominal outer diameter: 11.6 mm
- Copper content: 155 kg/km
- 무게(근사치): 223 kg/km
SERVO PVC (4G4)
Product ref. 10580435
- Packaging: Cut to length (m)
- Nominal outer diameter: 11.9 mm
- Copper content: 215 kg/km
- 무게(근사치): 270 kg/km
SERVO PVC (4G2,5+(2x1,5))
Product ref. 10580440
- Packaging: Cut to length (m)
- Nominal outer diameter: 13.4 mm
- Copper content: 204 kg/km
- 무게(근사치): 283 kg/km
SERVO PVC (4G6)
Product ref. 10580436
- Packaging: Cut to length (m)
- Nominal outer diameter: 14.5 mm
- Copper content: 335 kg/km
- 무게(근사치): 413 kg/km
SERVO PVC (4G4+(2x1,5))
Product ref. 10580441
- Packaging: Cut to length (m)
- Nominal outer diameter: 14.8 mm
- Copper content: 272 kg/km
- 무게(근사치): 362 kg/km
SERVO PVC (4G6+(2x1,5))
Product ref. 10580442
- Packaging: Cut to length (m)
- Nominal outer diameter: 16.8 mm
- Copper content: 364 kg/km
- 무게(근사치): 488 kg/km
SERVO PVC (4G10)
Product ref. 10580437
- Packaging: Cut to length (m)
- Nominal outer diameter: 17.5 mm
- Copper content: 532 kg/km
- 무게(근사치): 610 kg/km
SERVO PVC (4G10+(2x1,5))
Product ref. 10580443
- Packaging: Cut to length (m)
- Nominal outer diameter: 19.4 mm
- Copper content: 560 kg/km
- 무게(근사치): 692 kg/km
SERVO PVC (4G16)
Product ref. 10580438
- Packaging: Cut to length (m)
- Nominal outer diameter: 21.6 mm
- Copper content: 833 kg/km
- 무게(근사치): 950 kg/km
Description
Description
Standards
-
ProductUL and CSA approval
UL recognised / CSA
UL AWM 90°C, 1000V
CSA AWM I/II A/B 90°C, 1000V
Oil resistance
High resistance
Flame retardant
EN 60332-1-3, CSA FT1, UL 1581
Design
Conductor
Bare copper class 6
Core insulation
XLPE
Core stranding
Power cores stranded with fillers
Core identification
Power: U/L1/C/L+; V/L2; W/L3/D/L-; GN/YE;
Signal: Black + White
Shield
Pair shield: Tinned copper braid, coverage ≥ 80%
Overall shield: Tinned copper braid, coverage ≥ 80%
Jacket
PVC
Colour:
Orange RAL 2003
