SERVO CABLES ACC. TO SIEMENS STANDARD 6FX8008PLUS PW+SG
SERVO CABLES ACC. TO SIEMENS STANDARD 6FX8008PLUS PW+SG

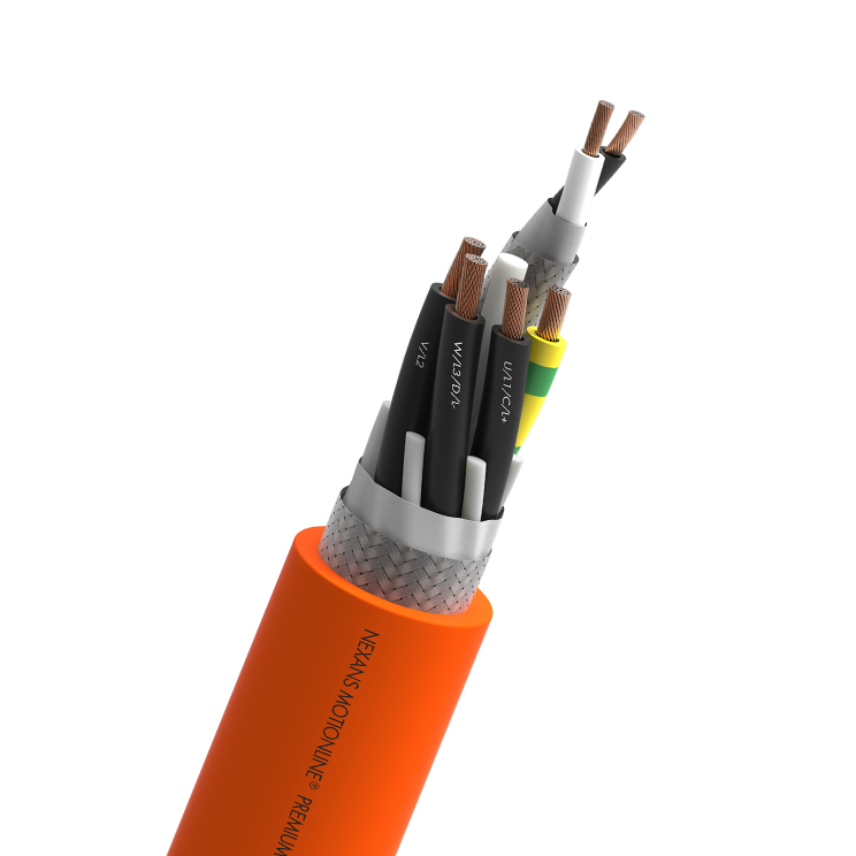

Servo cables according to SIEMENS Standard 6FX8008PLUS for extremely dynamic applications, PUR jacket, shielded, resistant to oils, flame retardant, halogen-free
Read more13-EBU (4G1,5 +(2x1,5)C)C
Nexans ref. 10553107 - Country ref. 13-EBU15Z06P
- Packaging: Cut to length (m)
- 구조: (4G1.5 + (2x1.5)C)C
- Nominal outer diameter: 11.6 mm
- Copper content: 165 kg/km
- 무게(근사치): 230 kg/km
- Minimum dynamic operating bending radius: 7.5 (xD)
13-EBU (4G2,5 +(2x1,5)C)C
Nexans ref. 10553100 - Country ref. 13-EBU13Z06P
- Packaging: Cut to length (m)
- 구조: (4G2.5 + (2x1.5)C)C
- Nominal outer diameter: 13.4 mm
- Copper content: 208 kg/km
- 무게(근사치): 300 kg/km
- Minimum dynamic operating bending radius: 7.5 (xD)
13-EBU (4G4 +(2x1,5)C)C
Nexans ref. 10553091 - Country ref. 13-EBU11Z06P
- Packaging: Cut to length (m)
- 구조: (4G4 + (2x1.5)C)C
- Nominal outer diameter: 14.8 mm
- Copper content: 286 kg/km
- 무게(근사치): 380 kg/km
- Minimum dynamic operating bending radius: 7.5 (xD)
13-EBU (4G6 +(2x1,5)C)C
Nexans ref. 10553084 - Country ref. 13-EBU09Z06P
- Packaging: Cut to length (m)
- 구조: (4G6 + (2x1.5)C)C
- Nominal outer diameter: 16.7 mm
- Copper content: 402 kg/km
- 무게(근사치): 530 kg/km
- Minimum dynamic operating bending radius: 7.5 (xD)
13-EBU (4G10 +(2x1,5)C)C
Nexans ref. 10553076 - Country ref. 13-EBU07Z06P
- Packaging: Cut to length (m)
- 구조: (4G10 + (2x1.5)C)C
- Nominal outer diameter: 19.4 mm
- Copper content: 615 kg/km
- 무게(근사치): 765 kg/km
- Minimum dynamic operating bending radius: 7.5 (xD)
13-EBU (4G16 +(2x1,5)C)C
Nexans ref. 10553071 - Country ref. 13-EBU05Z06P
- Packaging: Cut to length (m)
- 구조: (4G16 + (2x1.5)C)C
- Nominal outer diameter: 22.6 mm
- Copper content: 890 kg/km
- 무게(근사치): 1090 kg/km
- Minimum dynamic operating bending radius: 7.5 (xD)
13-EBU (4G25 +(2x1,5)C)C
Nexans ref. 10553067 - Country ref. 13-EBU03Z06P
- Packaging: Cut to length (m)
- 구조: (4G25 +(2x1.5)C)C
- Nominal outer diameter: 26.4 mm
- Copper content: 1276 kg/km
- 무게(근사치): 1530 kg/km
- Minimum dynamic operating bending radius: 10 (xD)
13-EBU (4G35 +(2x1,5)C)C
Nexans ref. 10553064 - Country ref. 13-EBU02Z06P
- Packaging: Cut to length (m)
- 구조: (4G35 +(2x1.5)C)C
- Nominal outer diameter: 30.5 mm
- Copper content: 1701 kg/km
- 무게(근사치): 2040 kg/km
- Minimum dynamic operating bending radius: 10 (xD)
13-EBU (4G50 +(2x1,5)C)C
Nexans ref. 10553062 - Country ref. 13-EBU01Z06P
- Packaging: Cut to length (m)
- 구조: (4G50 + (2x1.5)C)C
- Nominal outer diameter: 34.6 mm
- Copper content: 2397 kg/km
- 무게(근사치): 2760 kg/km
- Minimum dynamic operating bending radius: 10 (xD)
Description
Description
Standards
-
ProductUL and CSA approval
Normative Reference
UL Recognized / CSA
AWM 80°C - 600V/1000V
AWM 80°C - 600V/1000V FT1
Oil Resistance:
EN 50363-10-2
Flame Retardant:
IEC 60332-1; FT1: UL 1581; EN 50265-2-1
Toxicity:
Halogen free
Characteristics
Characteristics
구조적 특성
구조적 특성
전기적 특성
전기적 특성
기계적 특성
기계적 특성
사용 특성
사용 특성
