SERVO CABLES WITH INNER JACKET ACC. TO NEXANS MOTIONLINE® STANDARD WITH CONTROL PAIR
SERVO CABLES WITH INNER JACKET ACC. TO NEXANS MOTIONLINE® STANDARD WITH CONTROL PAIR
Servo cables for extremely dynamic applications with control pair MOTIONLINE® PREMIUM
Read moreSERVO CABLE WITH INNER JACKET (4G1,5 + (2X1,5)C)C
Nexans ref. 49495060
- Packaging: Drum (1000m)
- 구조: (4G1.5 + (2x1.5)C)C
- 외경: 13.1 mm
- Copper content: 143 kg/km
- 무게(근사치): 251 kg/km
SERVO CABLE WITH INNER JACKET (4G2,5 + (2X1,5)C)C
Nexans ref. 49495160
- Packaging: Drum (1000m)
- 구조: (4G2.5 + (2x1.5)C)C
- 외경: 14.4 mm
- Copper content: 185 kg/km
- 무게(근사치): 310 kg/km
SERVO CABLE WITH INNER JACKET (4G4 + (2X1,5)C)C
Nexans ref. 49495260
- Packaging: Drum (1000m)
- 구조: (4G4 + (2x1.5)C)C
- 외경: 16.2 mm
- Copper content: 266 kg/km
- 무게(근사치): 397 kg/km
SERVO CABLE WITH INNER JACKET (4G6 + (2X1,5)C)C
Nexans ref. 49495360
- Packaging: Drum (1000m)
- 구조: (4G6 + (2x1.5)C)C
- 외경: 18 mm
- Copper content: 346 kg/km
- 무게(근사치): 527 kg/km
SERVO CABLE WITH INNER JACKET (4G10 + (2X1,5)C)C
Nexans ref. 49495460
- Packaging: Drum (1000m)
- 구조: (4G10 + (2x1.5)C)C
- 외경: 20.5 mm
- Copper content: 534 kg/km
- 무게(근사치): 739 kg/km
SERVO CABLE WITH INNER JACKET (4G16 + (2X1,5)C)C
Nexans ref. 49495560
- Packaging: Drum (1000m)
- 구조: (4G16 + (2x1.5)C)C
- 외경: 24.5 mm
- Copper content: 794 kg/km
- 무게(근사치): 1075 kg/km
SERVO CABLE WITH INNER JACKET (4G25 + (2X1,5)C)C
Nexans ref. 49495660
- Packaging: Drum (1000m)
- 구조: (4G25 +(2x1.5)C)C
- 외경: 28.3 mm
- Copper content: 1120 kg/km
- 무게(근사치): 1480 kg/km
Description
Description
Standards
-
ProductUL and CSA approval

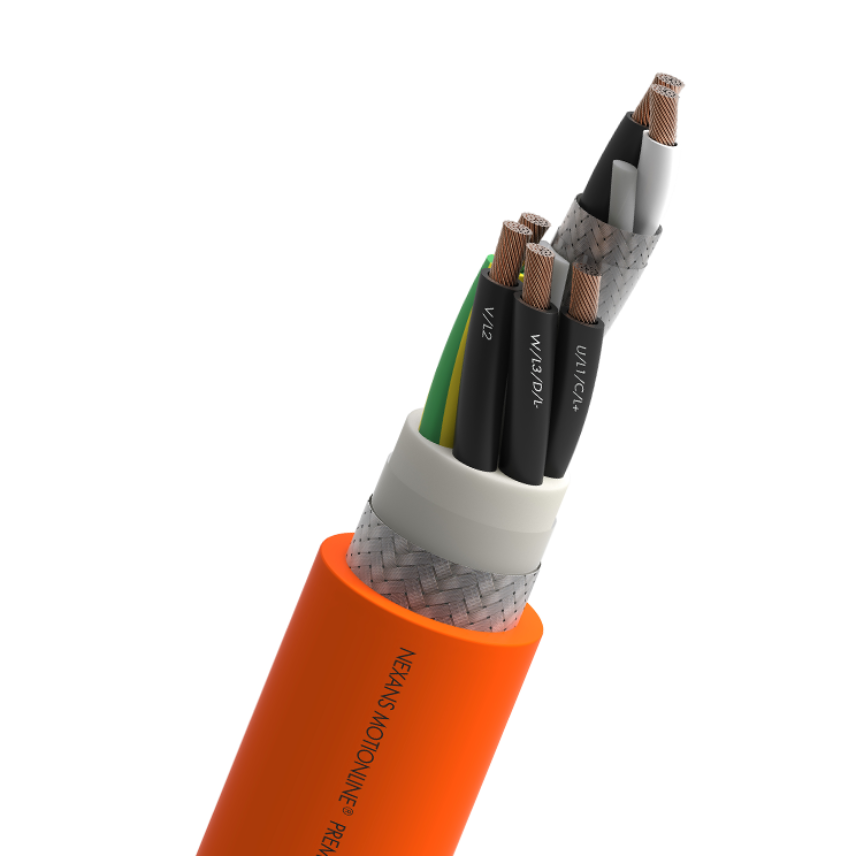

Servo cables with control pair for extremely dynamic applications; PUR jacket, TPE inner jacket, screened, resistant to oils and coolants, notch resistant, flame retardant, resistant to hydrolysis and microbes, PVC- and halogen-free.
Characteristics
Characteristics
구조적 특성
구조적 특성
도체 재료
Bending-resistant conductor with bare copper wires
절연
TPM with very low capacitance
Lay Up
power cores and control pairs stranded with filler
Insulation colour
Power: Black - White marking U/L1/C/L+ V/L2 W/L3/D/L- Yellow/Green; Signal: Black+White
Individual screen
Signal shield: Tinned copper braid, coverage >=80%
스크린
Tinned copper braid, coverage ≥ 80%
내피
TPE compound, optimized for drag chain use
피복
PUR
Sheath colour
Orange RAL 2003
Halogen free
예
전기적 특성
전기적 특성
시험전압
4000 V
Rated Voltage Uo/U
0.6/1 kV
기계적 특성
기계적 특성
Bending cycles
10 Mio.
Speed
300 m/min
Maximum acceleration
50 m/s²
사용 특성
사용 특성
Field of application
Dynamic
Minimum dynamic operating bending radius
7.5 (xD)
操作温度范围
-30 ... 80 °C
Storage temperature, range
-50 ... 80 °C
난연
IEC 60332-1-2; UL 1581 FT1
Oil resistance
DIN EN 50363-10-2 & DIN EN 60811-404
