SERVO MOTOR CABLES ACC. TO NEXANS MOTIONLINE® STANDARD 800ratio
SERVO MOTOR CABLES ACC. TO NEXANS MOTIONLINE® STANDARD 800ratio
Servo cables for extremely dynamic applications. MOTIONLINE® ADVANCED
Read moreSERVO MOTOR CABLES 800ratio (4G1,5)C
Nexans ref. 49475060
- Packaging: Drum (1000m)
- 구조: 4G1.5 C
- 외경: 8.3 mm
- Copper content: 79 kg/km
- 무게(근사치): 112 kg/km
SERVO MOTOR CABLES 800ratio (4G2,5)C
Nexans ref. 49475160
- Packaging: Drum (1000m)
- 구조: 4G2.5 C
- 외경: 9.9 mm
- Copper content: 120 kg/km
- 무게(근사치): 165 kg/km
SERVO MOTOR CABLES 800ratio (4G4)C
Nexans ref. 49475260
- Packaging: Drum (1000m)
- 구조: 4G4 C
- 외경: 11.5 mm
- Copper content: 193 kg/km
- 무게(근사치): 245 kg/km
SERVO MOTOR CABLES 800ratio (4G6)C
Nexans ref. 49475360
- Packaging: Drum (1000m)
- 구조: 4G6 C
- 외경: 13.8 mm
- Copper content: 290 kg/km
- 무게(근사치): 349 kg/km
SERVO MOTOR CABLES 800ratio (4G10)C
Nexans ref. 49475460
- Packaging: Drum (1000m)
- 구조: 4G10 C
- 외경: 17.1 mm
- Copper content: 452 kg/km
- 무게(근사치): 532 kg/km
SERVO MOTOR CABLES 800ratio (4G16)C
Nexans ref. 49475560
- Packaging: Drum (1000m)
- 구조: 4G16 C
- 외경: 20.5 mm
- Copper content: 721 kg/km
- 무게(근사치): 810 kg/km
SERVO MOTOR CABLES 800ratio (4G25)C
Nexans ref. 49475660
- Packaging: Drum (1000m)
- 구조: 4G25 C
- 외경: 25.5 mm
- Copper content: 1100 kg/km
- 무게(근사치): 1293 kg/km
SERVO MOTOR CABLES 800ratio (4G35)C
Nexans ref. 49475760
- Packaging: Drum (1000m)
- 구조: 4G35 C
- 외경: 28.5 mm
- Copper content: 1510 kg/km
- 무게(근사치): 1708 kg/km
SERVO MOTOR CABLES 800ratio (4G50)C
Nexans ref. 49475860
- Packaging: Drum (1000m)
- 구조: 4G50 C
- 외경: 34 mm
- Copper content: 2130 kg/km
- 무게(근사치): 2387 kg/km
Description
Description
Standards
-
ProductUL and CSA approval

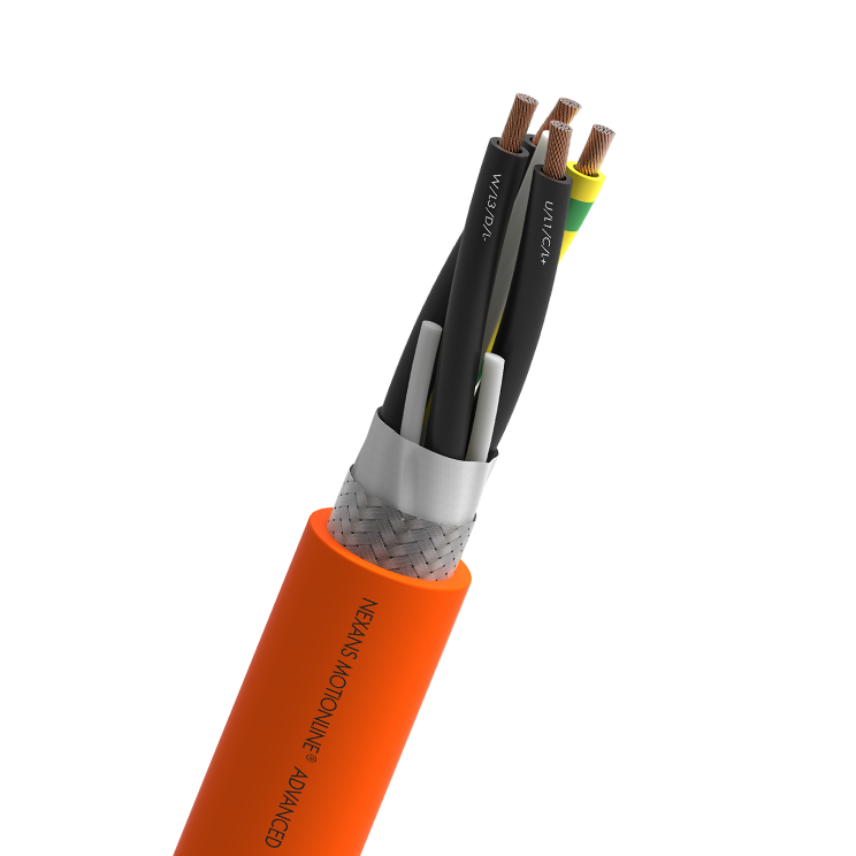

Servo cables for very dynamic applications; PUR Jacket; screened, resistant to oils and coolants, notch resistant, flame retardant, resistant to hydrolysis and microbes, PVC- and halogen-free.
Characteristics
Characteristics
구조적 특성
구조적 특성
도체 재료
Bending-resistant conductor with bare copper wires
절연
TPM with very low capacitance
Lay Up
Power cores stranded with filler
Insulation colour
Black - white marking U/L1/C/L + V/L2 W/L3/D/L - Yellow/Green
스크린
Tinned copper braid, coverage ≥ 85%
피복
PUR
Sheath colour
Orange RAL 2003
Halogen free
예
전기적 특성
전기적 특성
Rated Voltage Uo/U
0.6/1 kV
시험전압
4000 V
기계적 특성
기계적 특성
Bending cycles
10 Mio.
Speed
180 m/min
Maximum acceleration
20 m/s²
사용 특성
사용 특성
Field of application
Dynamic
Minimum dynamic operating bending radius
10 (xD)
操作温度范围
-15 ... 80 °C
Storage temperature, range
-50 ... 80 °C
난연
IEC 60332-1-2; UL 1581 FT1
Oil resistance
DIN EN 50363-10-2 & DIN EN 60811-404
