SERVO MOTOR CABLES ACC. TO NEXANS MOTIONLINE® STANDARD 800ratio WITH PAIR
SERVO MOTOR CABLES ACC. TO NEXANS MOTIONLINE® STANDARD 800ratio WITH PAIR

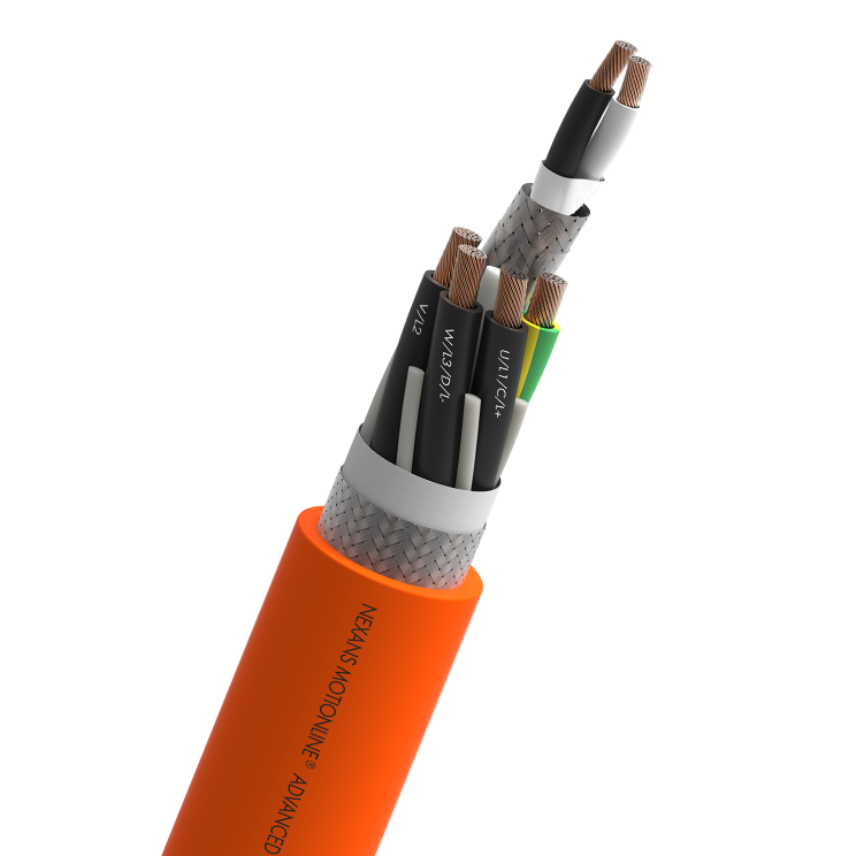

Servo cables with control pair for very dynamic applications MOTIONLINE® ADVANCED
Read moreSERVO CABLE 800ratio (4G1,5+(2x1,5)C)C
Nexans ref. 49477060
- Packaging: Drum (1000m)
- 구조: (4G1.5 + (2x1.5)C)C
- 외경: 10.8 mm
- Copper content: 134 kg/km
- 무게(근사치): 179 kg/km
SERVO CABLE 800ratio (4G2,5+(2x1,5)C)C
Nexans ref. 49477160
- Packaging: Drum (1000m)
- 구조: (4G2.5 + (2x1.5)C)C
- 외경: 12.5 mm
- Copper content: 174 kg/km
- 무게(근사치): 236 kg/km
SERVO CABLE 800ratio (4G4+(2x1,5)C)C
Nexans ref. 49477260
- Packaging: Drum (1000m)
- 구조: (4G4 + (2x1.5)C)C
- 외경: 13.9 mm
- Copper content: 261 kg/km
- 무게(근사치): 313 kg/km
SERVO CABLE 800ratio (4G6+(2x1,5)C)C
Nexans ref. 49477360
- Packaging: Drum (1000m)
- 구조: (4G6 + (2x1.5)C)C
- 외경: 15.9 mm
- Copper content: 352 kg/km
- 무게(근사치): 433 kg/km
SERVO CABLE 800ratio (4G10+(2x1,5)C)C
Nexans ref. 49477460
- Packaging: Drum (1000m)
- 구조: (4G10 + (2x1.5)C)C
- 외경: 18.7 mm
- Copper content: 495 kg/km
- 무게(근사치): 611 kg/km
SERVO CABLE 800ratio (4G16+(2x1,5)C)C
Nexans ref. 49477560
- Packaging: Drum (1000m)
- 구조: (4G16 + (2x1.5)C)C
- 외경: 22.2 mm
- Copper content: 742 kg/km
- 무게(근사치): 899 kg/km
SERVO CABLE 800ratio (4G25+(2x1,5)C)C
Nexans ref. 49477660
- Packaging: Drum (1000m)
- 구조: (4G25 +(2x1.5)C)C
- 외경: 26.5 mm
- Copper content: 1135 kg/km
- 무게(근사치): 1344 kg/km
SERVO CABLE 800ratio (4G35+(2x1,5)C)C
Nexans ref. 49477760
- Packaging: Drum (1000m)
- 구조: (4G35 +(2x1.5)C)C
- 외경: 29.9 mm
- Copper content: 1550 kg/km
- 무게(근사치): 1811 kg/km
SERVO CABLE 800ratio (4G50+(2x1,5)C)C
Nexans ref. 49477860
- Packaging: Drum (1000m)
- 구조: (4G50 + (2x1.5)C)C
- 외경: 34.4 mm
- Copper content: 2160 kg/km
- 무게(근사치): 2434 kg/km
Description
Description
Standards
-
ProductUL and CSA approval
Servo cables with control pair for very dynamic applications; PUR Jacket; screened, resistant to oils and coolants, notch resistant, flame retardant, resistant to hydrolysis and microbes, PVC- and halogen-free.
Characteristics
Characteristics
구조적 특성
구조적 특성
도체 재료
Bending-resistant conductor with bare copper wires
절연
TPM with very low capacitance
Lay Up
power cores and control pairs stranded with filler
Insulation colour
Power: Black - White marking U/L1/C/L+ V/L2 W/L3/D/L- Yellow/Green; Signal: Black+White
스크린
Tinned copper braid, coverage ≥ 85%
Individual screen
Signal screen: Tinned copper braid, coverage ≥85%
피복
PUR
Sheath colour
Orange RAL 2003
Halogen free
예
전기적 특성
전기적 특성
Rated Voltage Uo/U
0.6/1 kV
시험전압
4000 V
기계적 특성
기계적 특성
Bending cycles
10 Mio.
Speed
180 m/min
Maximum acceleration
20 m/s²
사용 특성
사용 특성
Field of application
Dynamic
Minimum dynamic operating bending radius
10 (xD)
操作温度范围
-15 ... 80 °C
Storage temperature, range
-50 ... 80 °C
난연
IEC 60332-1-2; UL 1581 FT1
Oil resistance
DIN EN 50363-10-2 & DIN EN 60811-404
