WINDLINK® MV-RS (N)TMCGCXOE 66Kv (72kV)
Description
Description
Standards
-
ProductDIN VDE 0207 part 20; DIN VDE 0250 part 1; DIN VDE 0250 part 813; IEC 60228
Application

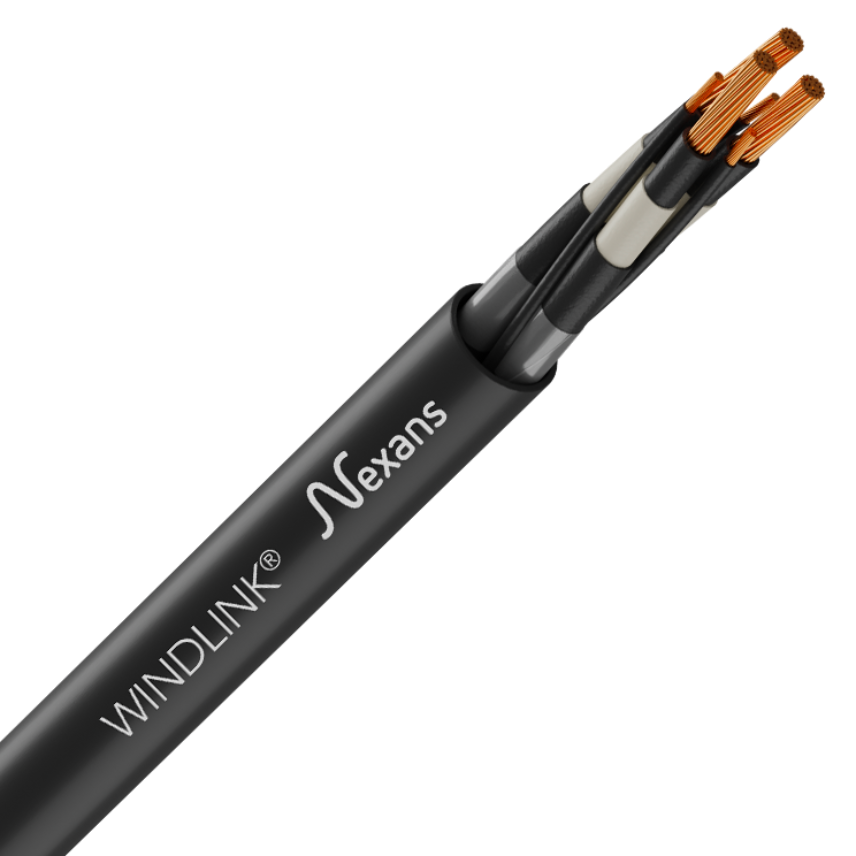

High-voltage trailing cable WINDLINK® MV-RS (N)TMCGCXOE in one-sheath design was developed for special application conditions in wind turbines. The construction is torsion resistant by suspension lengths of 100 m. These cables are specified for medium mechanical stress and for operation under permanent influence of seawater and outdoor use.
Resistance to:
- permanent movement
- permanent vibrations
- compressive stress
- oil
- flame-retardant
- temporary influence of seawater
- weather
- ozone influence
Characteristics
Characteristics
구조적 특성
구조적 특성
구조
-
도체 재료
-
Material of the inner semi-conductor
-
절연
-
Material of the external semi-conductor
-
내피
-
피복
-
치수
치수
Conductor diameter (mm)
-
Insulation sheath thickness
- mm
Inner sheath thickness
- mm
Nominal outer sheath thickness
- mm
Minimum cable diameter
- mm
Maximum cable diameter
- mm
무게(근사치)
- kg/km
전기적 특성
전기적 특성
Resistance of inner conductor (DC)
- Ohm/km
Max. Electrical Resistance AC 60Hz 70°C
- Ohm/km
Max. Electrical Resistance AC 60Hz 90°C
- Ohm/km
Inductive reactance
- Ohm/km
Permissible short circuit current
- kA
Permissible current rating in open air
- A
기계적 특성
기계적 특성
Maximum tensile strength
- N/mm2
Torsion stress
- °/m
사용 특성
사용 특성
Gases corrosivity
-
난연
-
Oil resistance
-
Ozone resistance
-
Minimum Bending Radius during installation
- (xD)
Minimum bending radius, static (XD)
-
연기밀도
-
Weather resistance
-
Resources
Resources
Selling & delivery Information
Marking
Inkjet-marking (WS), e.g.:
WINDLINK® MV-RS (N)TMCGCXOE 1x185/25 20/35 kV I NEXANS I week/year
