Description
Description

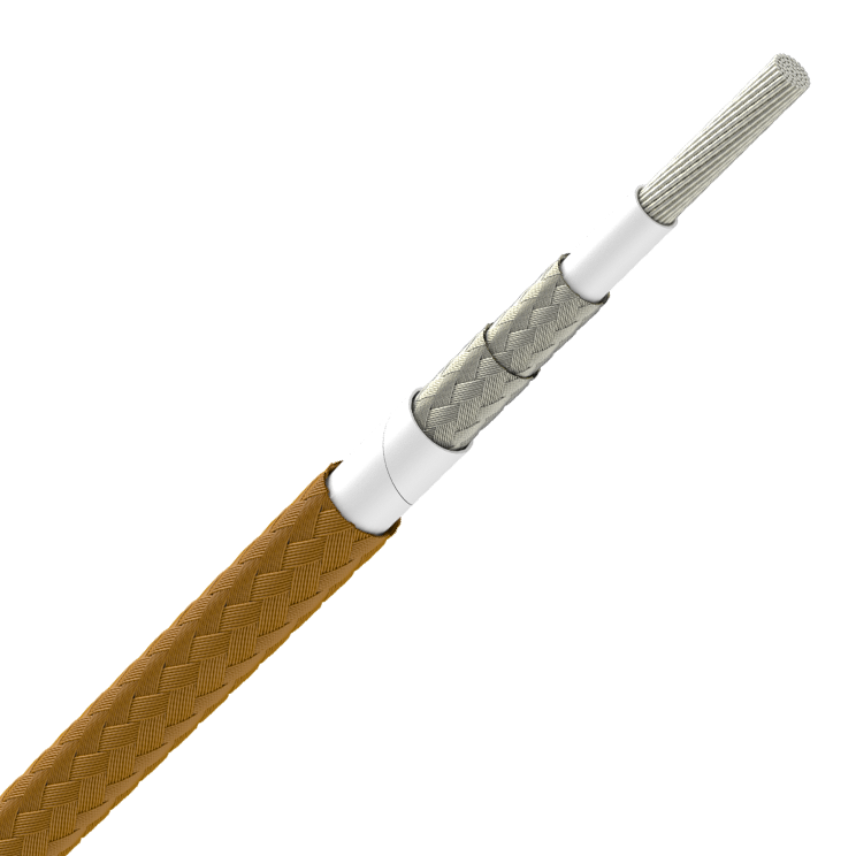

Product designed according to : NSA935355
CORE
7 x 0.81 mm Strand
Silver plated copper covered steel
Diameter = 2.40 mm
INSULATION
Extruded PTFE
Diameter = 7.25 ± 0.13 mm
SHIELD
Double braid of silver plated copper
Strand diameter = 0.16 mm
JACKET
PTFE tape(s)
Glass fiber
Diameter = 10.90 ± 0.25 mm
Max. weight = 270 g/m
Electrical Characteristics
| Operating frequency | : up to 10 GHz |
| Dielectric strength | : 10 000 V |
| Operating voltage | : 3700 Vrms max. |
| Minimum insulation resistance | : 5000 MΩ.km |
| Characteristic impedance at 200MHz | : 50 ± 2 Ω |
| Maximum linear capacitance | : 105 pF/m |
| Nominal relative velocity of propagation | : 69% |
| Maximum conductor ohmic resistance | : 5.68 Ω/km |
High Frequency Performances
| Frequency | Mean Attenuation at 20°C |
| (MHz) | (dB/100m) |
| 10 | 2 |
| 200 | 9.5 |
| 400 | 15 |
| 3000 | 52 |
Characteristics
Characteristics
사용 특성
사용 특성
操作温度范围
-90 ... 200 °C
난연
FAR/JAR part 25 sec 25.869 (a)(4) Appendix F part 1 (3)
Oil resistance
Very good resistance to aircraft fluids
RoHS compliant
Yes
Resources
Resources
Selling & delivery Information
Color of Jacket: Brown
Color of marking on the jacket: White
Marking text : " XS FR F ** "
FR = Country of Origin (FR = France)
F = Manufacturer (F = Nexans)
** = Year of manufacturing (ie. 17 = 2017)
