EN 4604-005 WL
EN 4604-005 WL

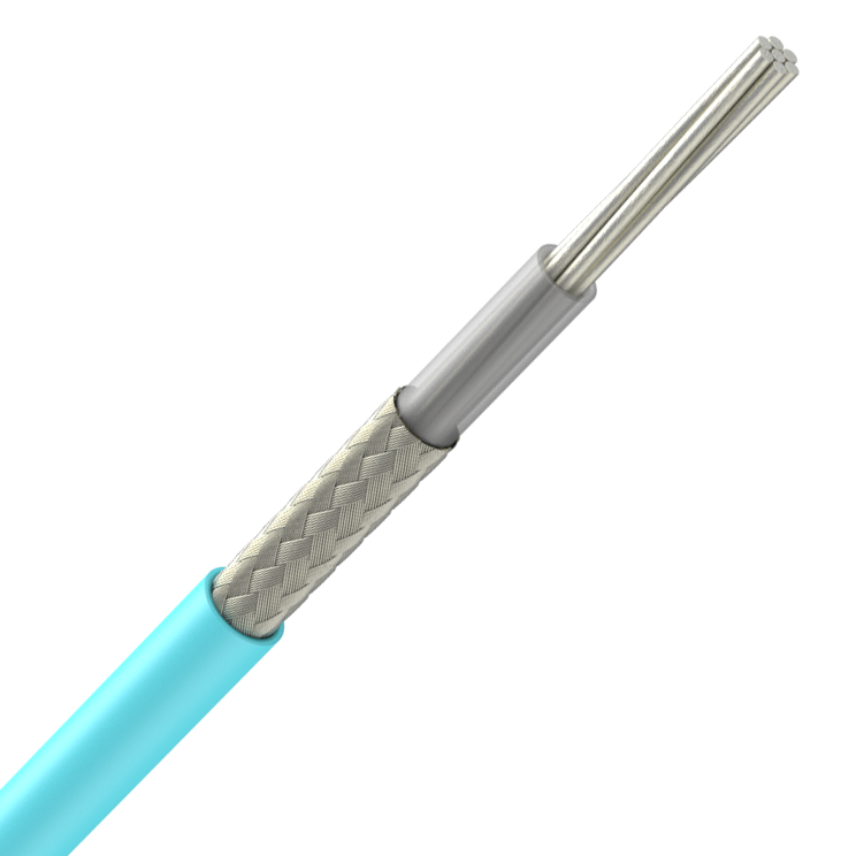

75 Ohms, Coaxial Cable
Designed for high frequency signal transmission in aircraft radio communication systems.
Description
Description
Standards
-
TestprEN 3475-100
-
국제 표준prEN 4604-001, -002 and -005
CORE
7 x 0.10 mm Strands
High strength silver plated copper alloy
Diameter = 0.30 ± 0.025 mm
INSULATION
Fluorocarbon
Max. diameter = 1.30 mm
SHIELD
Silver plated copper double braid
Strand diameter = 0.08 mm
Diameter = 1.85 ± 0.10 mm
JACKET
Fluorocarbon
Max. diameter = 2.35 mm
Max. weight = 12.5 g/m
Electrical Characteristics
| Operating frequency | : up to 3GHz |
| dielectric strength | : 2000Vac |
| Maximum operating voltage | : 500V rms |
| Maximum ohmic resistance | : 384 Ω/km |
| Insulation resistance | : ≥ 5000 MΩ.km |
| Characteristic impedance | : 75 ± 5 Ω |
| Maximum linear capacitance | : 60 pF/m |
| Velocity of propagation | : ≥ 222 000 km/s (74% relative) |
| Maximum transfer impedance | : 30 mΩ/m up to 1 MHz |
| : 5 mΩ/m up to 20 MHz | |
| : 30 mΩ/m up to 100 MHz |
Attenuation and Power Handling
| Frequency | Max. Rated Power | Max. Attenuation at 20°C |
| (MHz) | (W) | (dB/100m) |
| 10 | 640 | 10 |
| 50 | 290 | 23 |
| 100 | 200 | 30 |
| 200 | 140 | 43 |
| 300 | 110 | 53 |
| 400 | 100 | 63 |
| 1000 | 65 | 102 |
| 3000 | 37 | 176 |
Characteristics
Characteristics
사용 특성
사용 특성
操作温度范围
-55 ... 200 °C
Minimum static operating bending radius
15 mm
Minimum dynamic operating bending radius
25.0 mm
난연
FAR/JAR part 25 sec 25.869 (a)(4) Appendix F part 1 (3)
Oil resistance
Very good resistance to aircraft fluids
RoHS compliant
Yes
Resources
Resources
Selling & delivery Information
Jacket colour: Blue
Marking colour: Black
Marking text : WL FRF**
FR = Country of Origin (FR = France)
F = Manufacturer (F = Nexans)
** = Year of manufacturing (ie. 14 = 2014)
