STUDY 124962
STUDY 124962

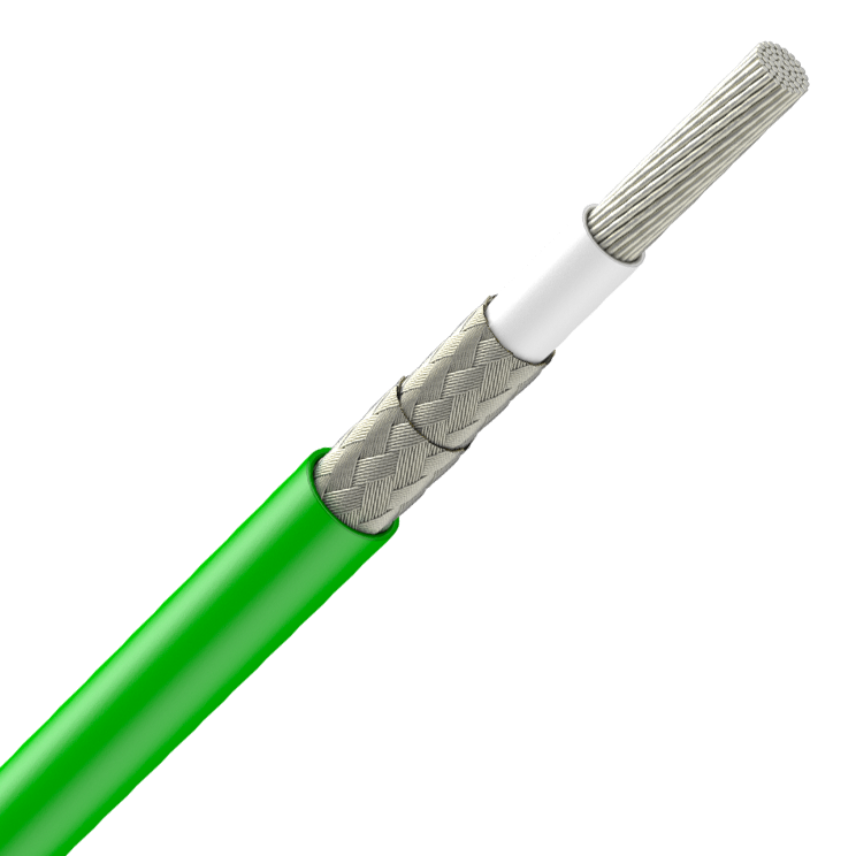

Laser UV miniature Coaxial Cable.
With similar transmission characteristics to KX 22A / RG 316U,
This cable has the following advantages :
- Lower diameter and weight
- Better bendability
- Better screening effectiveness (Double braid)
- UV Laser marquability
Recommended for Aeronautics uses and miniature systems. Read more
Description
Description
Standards
-
ProductMIL C17; NF C93-550
CORE
19 x 0.098 mm Strand
Silvered alloy
Nom. diameter = 0.48 mm
INSULATION
Expanded PTFE
Nom. diameter = 1.35 mm
SHIELDS
Silver plated copper double braid
Strands diameter = 0.07mm
Coverage ≥ 85%
Nom. diameter = 2.00 mm
JACKET
Laser UV ETFE markable
Diameter = 2.35 ± 0.05 mm
Nom. weight = 13 g/m
Max. weight = 14 g/m
Strippability : mechanical device or automatic stripper
Electrical Characteristics
| Voltage rating | : 250V Eff 50Hz |
| Voltage withstanding | : 3000V Eff 50 Hz between dielectric and shield |
| Jacket spark test | : 5000V impulse |
| DC resistance at 20°C | : ≤ 144 Ω/km |
| Insulation resistance | : ≥ 1500 MΩ.km between dielectric and shield |
| : ≥ 1500 MΩ.km jacket | |
| Linear capacitance at 1 kHz | : 90 pF/m nominal |
| : 100 pF/m maximal | |
| Characteristic impedance | : 50 ± 5 Ω |
| Nominal velocity of propagation | : 228 000 km/s (76%) |
Attenuation
| Frequency | Mean Attenuation at 20°C |
| (MHz) | (dB/100m) |
| 10 | 9 |
| 100 | 26 |
| 200 | 37 |
| 500 | 65 |
| 1000 | 106 |
| 1500 | 133 |
Characteristics
Characteristics
사용 특성
사용 특성
Resources
Resources
Selling & delivery Information
Colour of jacket : Green
