ABS 0386 WF
Description
Description
Standards
-

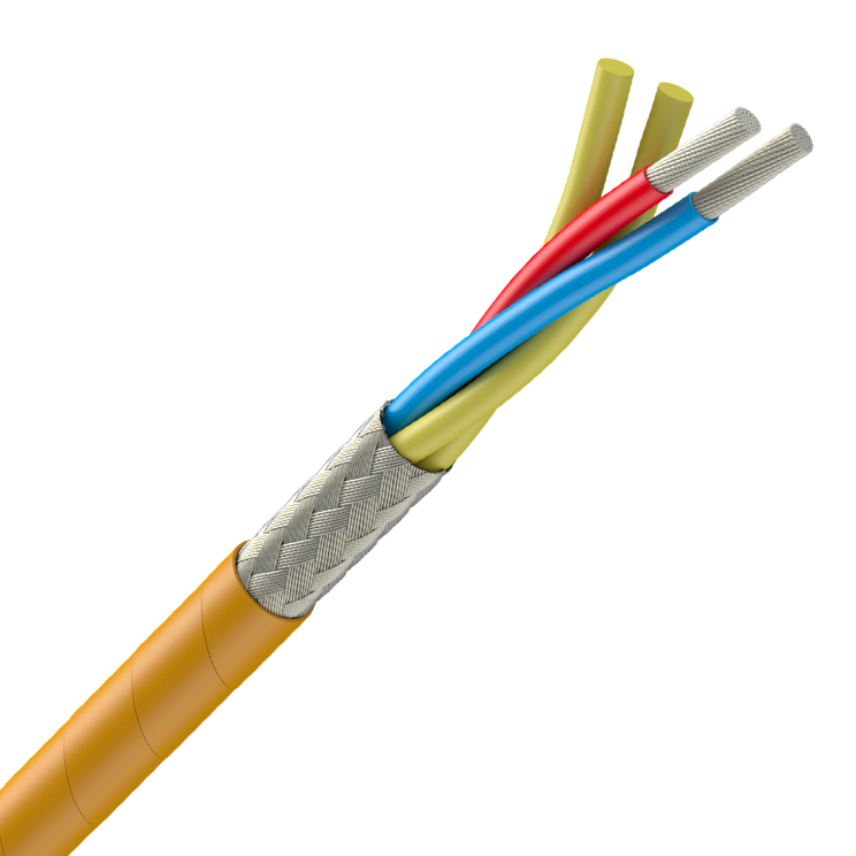

ProductABS 0386 WF
CORE
AWG 24, 19 x 0.12 mm
Nickel plated copper alloy
PTFE insulation
ASSEMBLY
2 cores twisted with 2 fiber glass fillers
SHIELD
Nickel plated copper braid
Strand diameter = 0.08 mm
JACKET
Polyimide tapes
Electrical and high frequency performances
| Voltage rating | : 600V rms |
| Characteristic impedance | : 100 ± 10 Ω at 5 MHz |
| Maximum capacitance | : 60 pF/m |
| Attenuation | : 0.03 dB/m at 1 MHz |
| : 0.06 dB/m at 5 MHz | |
| : 0.12 dB/m at 10 MHz |
Identification
| Colour of cores | : Light Blue + Red |
| Colour of Jacket | : Amber |
| Marking tape under jacket | : " - WF 24 FR F ** - " |
| With | (**) = Year of manufacturing (ie. 14 = 2014) |
Characteristics
Characteristics
사용 특성
사용 특성
操作温度范围
-55 ... 200 °C
최소 굽힘 반지름 - 설치 후
25 mm
난연
FAR/JAR part 25 sec 25.869 (a)(4) Appendix F part 1 (3)
Oil resistance
Very good resistance to aircraft fluids
