ASNE 0259 HE 24
ASNE 0259 HE 24

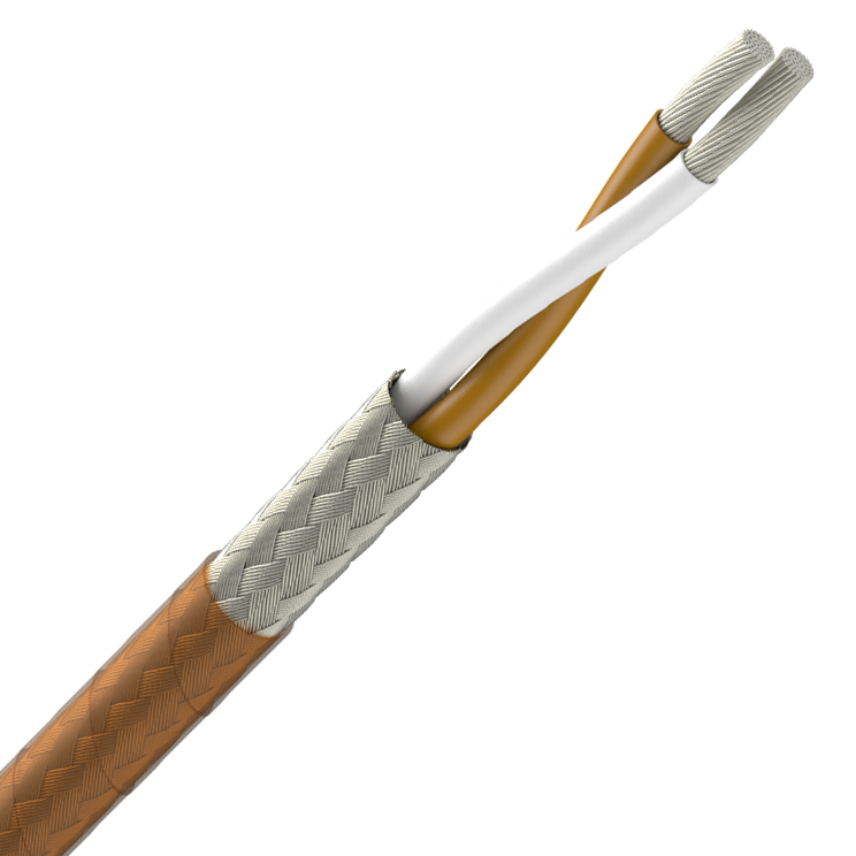

Data bus for aeronautic applications.
125 Ohms, AWG 24 - Single braid - Polyimide jacket
Description
Description
Standards
-
ProductASNE 0259 HE
CORE
AWG 24, 19 x 0.12 mm
Silver plated
high strength copper alloy
Extruded PTFE insulation
ASSEMBLY
2 cores
SHIELD
0.10 mm Nickel plated
copper braid
Covering ≥ 62%
JACKET
Polyimide tape(s)
Electrical and high frequency performances
| Voltage withstanding | : 1500 V between conductors |
| : 1500 V between conductor and shield | |
| Characteristics impedance | : 125 Ω ± 10% |
| Mutual capacitance | : 40 pF/m |
| Attenuation | : 2.5 dB/100m at 500 kHz |
| : 3.1 dB/100m at 1 MHz |
Identification
| Colour of cores | : White + Brown |
| Colour of jacket | : Natural |
Characteristics
Characteristics
사용 특성
사용 특성
操作温度范围
-55 ... 150 °C
난연
FAR/JAR part 25 sec 25.869 (a)(4) Appendix F part 1 (3)
Oil resistance
Good
