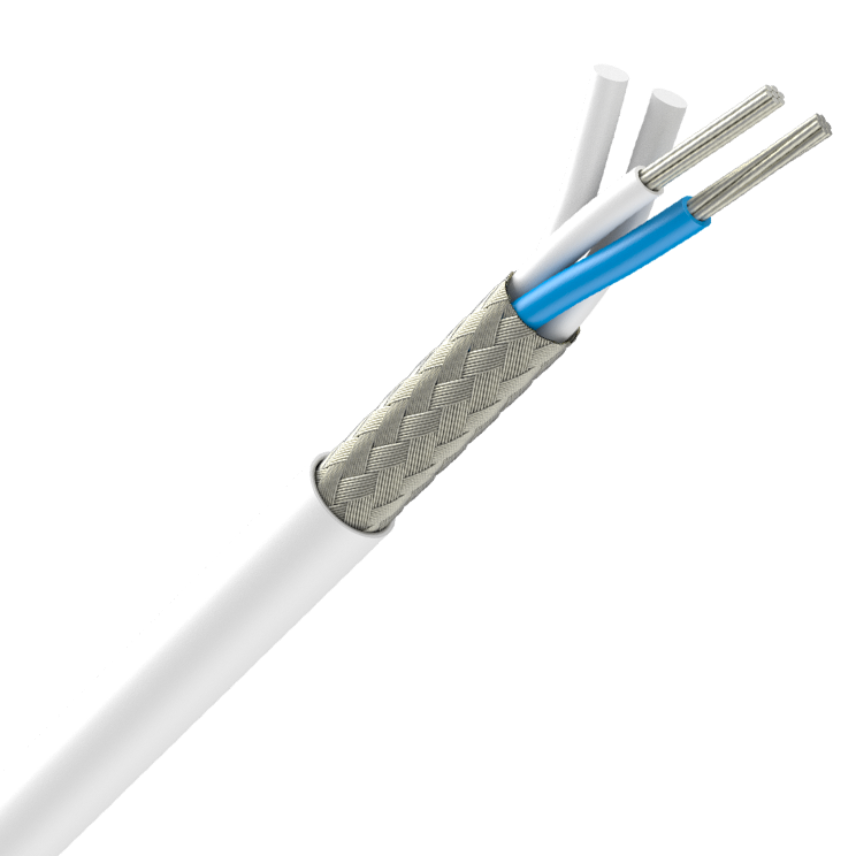

Data bus cable for multiplexed transmission.
77 Ohms, AWG 24 - Pair Double Shielded - High temperature
Description
Description
Standards
-
ProductEN 3375-005
CORE
AWG 24, 19 x 0.12 mm
Silver plated high strength copper alloy
Fluoropolymer insulation
ASSEMBLY
2 cores twisted with 2 fillers
SHIELD
Silver Plated Copper braid
Strand diameter : 0.10 mm
Coverage ≥ 62%
High Immunity tape
Silver Plated Copper braid
Strand diameter : 0.10 mm
Coverage ≥ 62%
JACKET
Fluoropolymer
UV laser markable
Electrical and high frequency performances
| Voltage rating | : 600 V AC |
| Characteristic impedance at 1 MHz | : 77 ± 7Ω |
| Maximum capacitance | : 78 pF/m |
| Maximum attenuation at 1 MHz | : 3.6 dB/100m |
| Maximum transfert impedance | : 15 mΩ/m DC |
| : 0.025 mΩ/m at 1 MHz | |
| : 0.025 mΩ/m at 10 MHz | |
| : 0.1 mΩ/m at 30 MHz |
Identification
| Colour of cores | : Blue + White |
| Colour of jacket | : White |
| JACKET CODE "NONE" | |
| Colour of marking | : Green |
| Marking text | : EN WV 24 FRF** |
| JACKET CODE "C01" | |
| Colour of marking | : Red for the main line |
| Marking text | : EN WV R24 FRF** |
| JACKET CODE “C02” | |
| Colour of marking | : Blue for the branch line |
| Marking text | : EN WV B24 FRF** |
| With | (**) = Year of manufacturing (i.e 14 = 2014) |
Characteristics
Characteristics
사용 특성
사용 특성
操作温度范围
-65 ... 200 °C
Minimum static operating bending radius
40 mm
난연
FAR/JAR part 25 sec 25.869 (a)(4) Appendix F part 1 (3)
Oil resistance
Very good resistance to aircraft fluids
