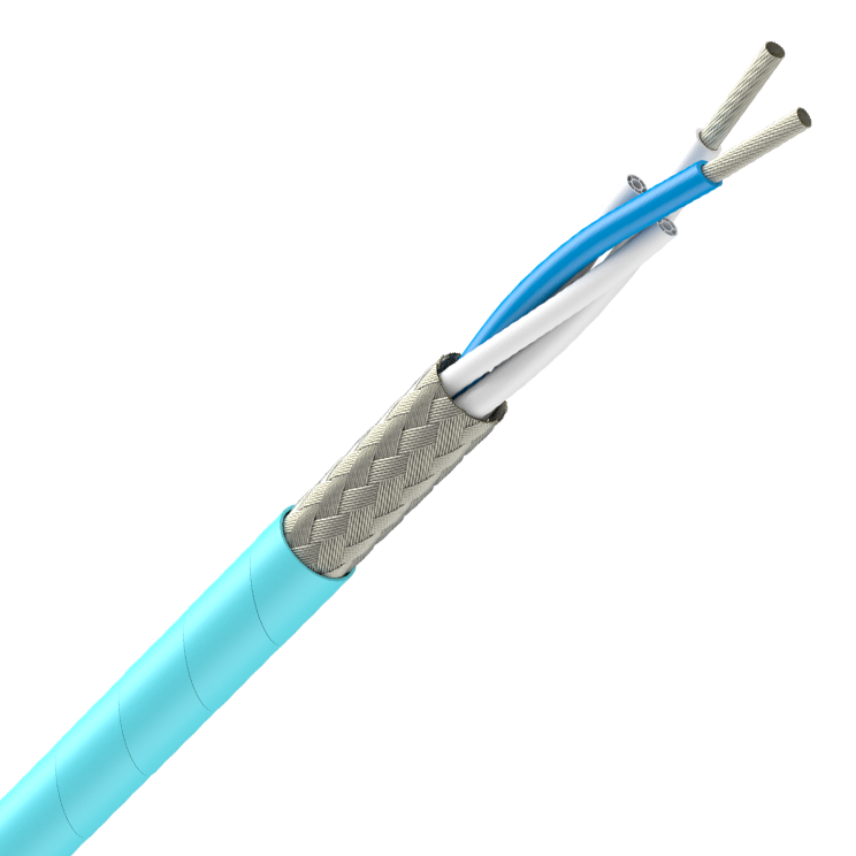

Data bus cable for aeronautic applications.
120 Ohms, AWG 26 - Shielded Pair - High temperature
Description
Description
Standards
-
ProductEN 3375-009
CORE
AWG 26, 7 x 0.16 mm
Silver plated high strength copper alloy
Aerated fluoropolymer insulation
ASSEMBLY
2 cores twisted with 2 aerated fillers
SHIELD
Silver plated copper braid
Strand diameter : 0.08 mm
Coverage ≥ 62%
JACKET
Fluoropolymer
Electrical and high frequency performances
| Voltage rating | : 600 V rms |
| Maximum Capacitance | : 45 pF/m |
| Nominal velative velocity of propagation | : 80% |
| Characteristic impedance | : 108 < Zc < 132 at 1 MHz |
| : 100 < Zc < 120 at 20 MHz | |
| Maximum attenuation | : 3 dB/100m at 1 MHz |
| : 8 dB/100m at 5 MHz | |
| Nominal transfert impedance | : 50 mΩ/m DC |
| : 50 mΩ/m at 1 MHz | |
| : 50 mΩ/m at 10 MHz | |
| : 100 mΩ/m at 30 MHz |
Identification
| Colour of cores | : Blue + Red |
| Colour of jacket | : White |
| Colour of marking | : Black |
| Marking text | : EN WX 26 FRF** |
| With | (**) = Year of manufacturing |
Characteristics
Characteristics
사용 특성
사용 특성
操作温度范围
-55 ... 200 °C
Minimum dynamic operating bending radius
30.0 mm
Minimum static operating bending radius
20 mm
난연
FAR/JAR part 25 sec 25.869 (a)(4) Appendix F part 1 (3)
Oil resistance
VDE 0472 part 803/B;UL 1581;CEI EN 60811
