STUDY 132873

Description

Description

Standards

  • 국가 표준
    ESW 1254-010

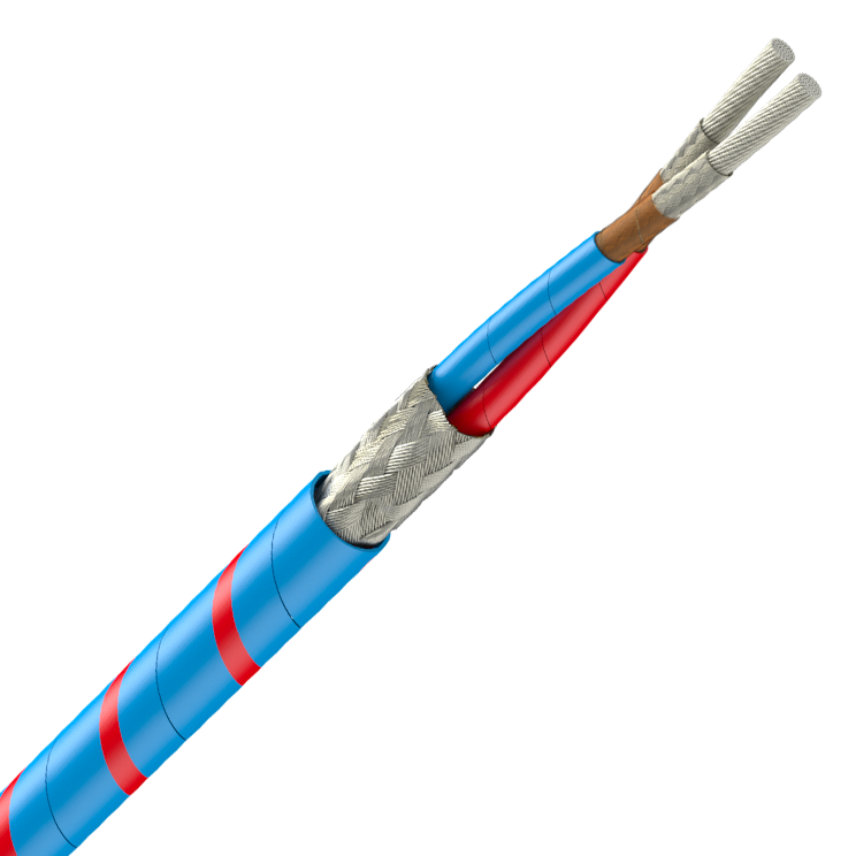

CORE
AWG 24, 19 x 0.12 mm
Nickel clad copper alloy

Fire resistant insulation
Polyimide Tape
PTFE Tape



ASSEMBLY
2 cores twisted



SHIELD
Nickel Plated Copper braid
Strand diameter =  0.12 mm
Coverage ≥ 62 %



JACKET
PTFE Tape(s)

Electrical and high frequency performances

Voltage rating : 600V rms
Operating frequency : 125 kHz
Maximum capacitance : 85 pF/m
Characteristic impedance : 100 Ω at 1MHz
Maximum attenuation : 1.6 dB/100m at 0.1 MHz
Maximum transfer impedance : 30 mΩ/m at 0.1 MHz



Identification

Color of cores : Blue + Red
Color of Jacket : Light Blue with narrow red
Marking text : "ET 132873 FRF**"
With (**) = Year of manufacturing (ie. 14 = 2014)



Characteristics

Characteristics

사용 특성

사용 특성

操作温度范围
-65 ... 260 °C
Fire resistant
-
난연
FAR/JAR part 25 sec 25.869 (a)(4) Appendix F part 1 (3)

Resources

Resources

Documentation

xls — 0 B
