STUDY 61333 - SP 554
STUDY 61333 - SP 554
Bus lines for multiplexed transmission.
Approved by the Defense Ministry under letters N°8981/STTE/CTG (10/09/1986)
Registered at B.N.Aé N°6415 401
75 Ohms, AWG 22 - Pair Double Shielded

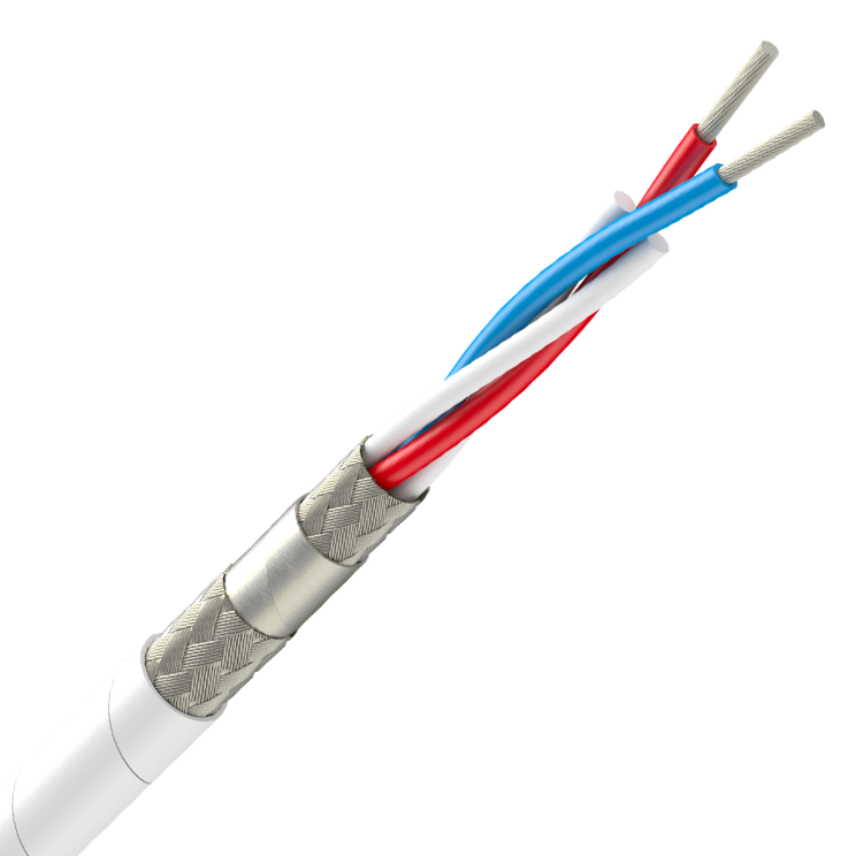

Description
Description
CORE
AWG 22, 19 x 0.16 mm
Silver plated copper
Insulation : extruded PTFE
ASSEMBLY
2 cores + 2 PTFE fillers
SHIELD
Silver plated copper 12/100
TAPE
High permeability alloy
SHIELD
Silver plated copper 12/100
JACKET
Polyimide PTFE
Electrical and high frequency performances
| Voltage rating | : 600V |
| Voltage withstanding | : 2000V rms between conductors |
| : 2000V rms between conductors and shield | |
| Jacket spark test | : 5000V |
| Insulation resistance | : > 5000 MΩ.km under 500V |
| Characteristic impedance | : 75 ± 5 Ω |
| Nominal mutual capacitance | : 65 ± 5 pF/m |
| Capacitance unbalance | : ≤ 5% |
| Nominal attenuation | : 2.6 dB/100m at 1 MHz |
| : 10 dB/100m at 10 MHz | |
| Transfer impedance | : 2.5 x10-5 Ω/m |
Identification
| Color of cores | : White + Blue |
| Outer Jacket color | : White |
Characteristics
Characteristics
사용 특성
사용 특성
操作温度范围
-65 ... 200 °C
난연
FAR/JAR part 25 sec 25.869 (a)(4) Appendix F part 1 (3)
Oil resistance
Good
