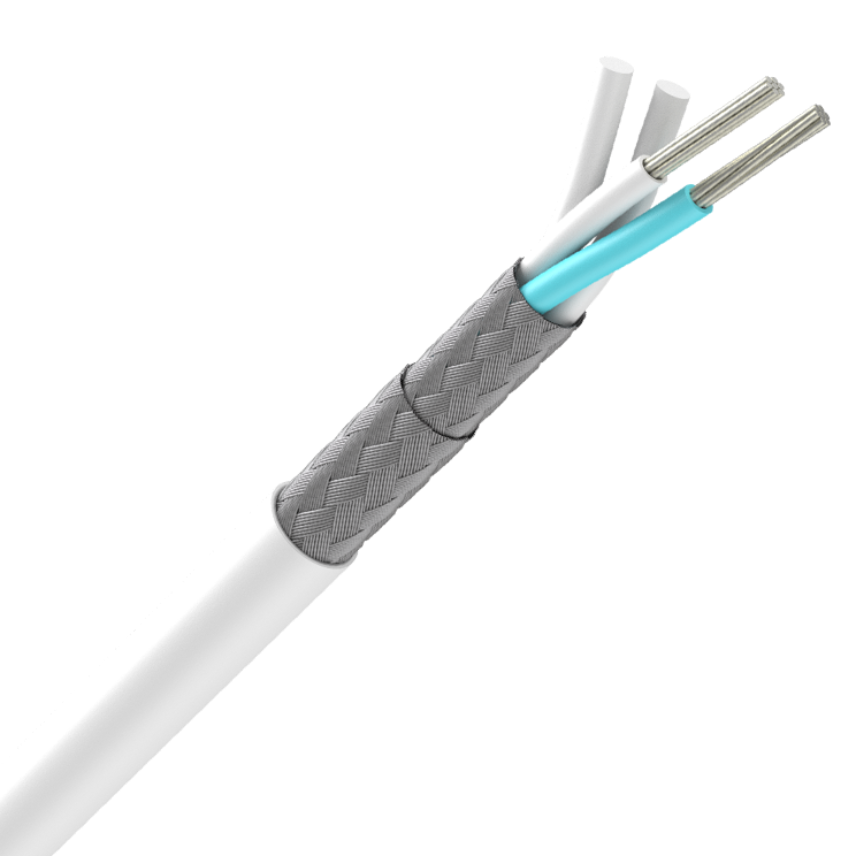

Data bus cable for multiplexed transmission.
77 Ohms, AWG 24 - Pair Double Shielded - High Temperature
Description
Description
Standards
-
ProductEN 3375-004
CORE
AWG 24, 19 x 0.12 mm
Silver plated high strength copper alloy
Fluoropolymer insulation
ASSEMBLY
2 cores twisted with 2 fillers
SHIELD
2 Silver plated copper braid
Strand diameter : 0.10 mm
JACKET
Fluoropolymer
Electrical and high frequency performances
| Voltage rating | : 600V AC |
| Characteristic impedance | : 77 ± 7 Ω |
| Maximum capacitance | : 78 pF/m |
| Maximum attenuation | : 3.6 dB/100m at 1 MHz |
| Maximum transfer impedance | : 15 mΩ/m DC |
| : 5 mΩ/m at 1 MHz | |
| : 5 mΩ/m at 10 MHz | |
| : 10 mΩ/m at 30 MHz |
Identification
| Colour of cores | : Blue + White |
| Colour of jacket |
: White Jacket code 'none': . Colour of marking : Green. Jacket code '01': . Colour of marking : Red for the main line. Jacket code '02': . Colour of marking : Blue for the branch line.
Marking text : FILOTEX FRANCE ET 69794-** (**) Year of manufacturing |
Characteristics
Characteristics
사용 특성
사용 특성
操作温度范围
-65 ... 200 °C
Minimum static operating bending radius
26 mm
난연
FAR/JAR part 25 sec 25.869 (a)(4) Appendix F part 1 (3)
