BMS 13-58
BMS 13-58

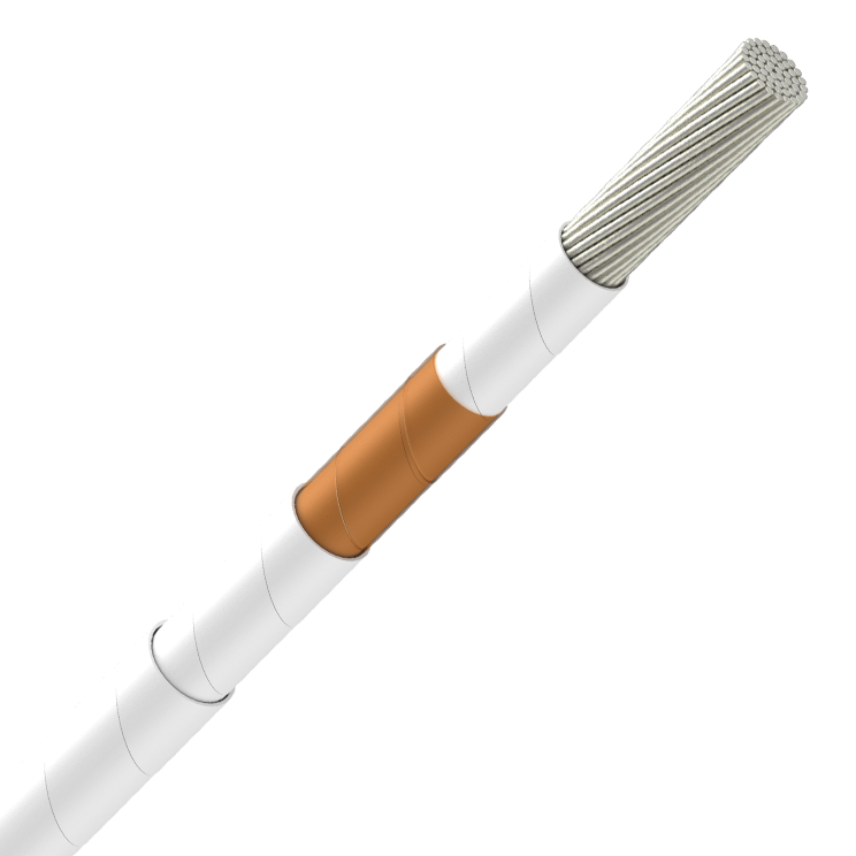

UV Laser printable Wire, High Temperature Aircraft Wire
Designe for general purpose aircraft wiring where exposure to thermal changes corrosive fluids is normal.
Description
Description
Standards
-
ProductBMS 13-58
CORE
Nickel Coated Copper (type 1)
Nickel Coated High Strength Copper Alloy (type 5)
INSULATION
PTFE Tape
Polyimide Tape
PTFE Coated Glass Tape (AWG 8 to 4/0 only)
PTFE Coated Glass Braid
UV PTFE Tapes Jacket
Product Range
| Shielded and Jacketed | : T03, T07, T09 cables are available upon request |
| Shileded | : T02, T06 cables are available upon request |
| Jacketed | : T04, T08 cables are available upon request |
Characteristics
Characteristics
전기적 특성
전기적 특성
Operating voltage
600 V
Maximal operating frequency
- MHz
기계적 특성
기계적 특성
Abrasion resistance
Good
사용 특성
사용 특성
操作温度范围
-65 ... 260 °C
난연
FAR/JAR part 25 sec 25.869 (a)(4) Appendix F part 1 (3)
Oil resistance
Very good resistance to aircraft fluids
