BMS 13-67
BMS 13-67
Very High Temperatures Fire Resistant, Shielded and Jacketed Cables
Aero engines and very high temperature applications. Fire resistant cable.
Operating temperature :
20,000 hours at +313°C (595°F)
or 10,000 hours at +321°C (610°F)
Description
Description
Standards
-

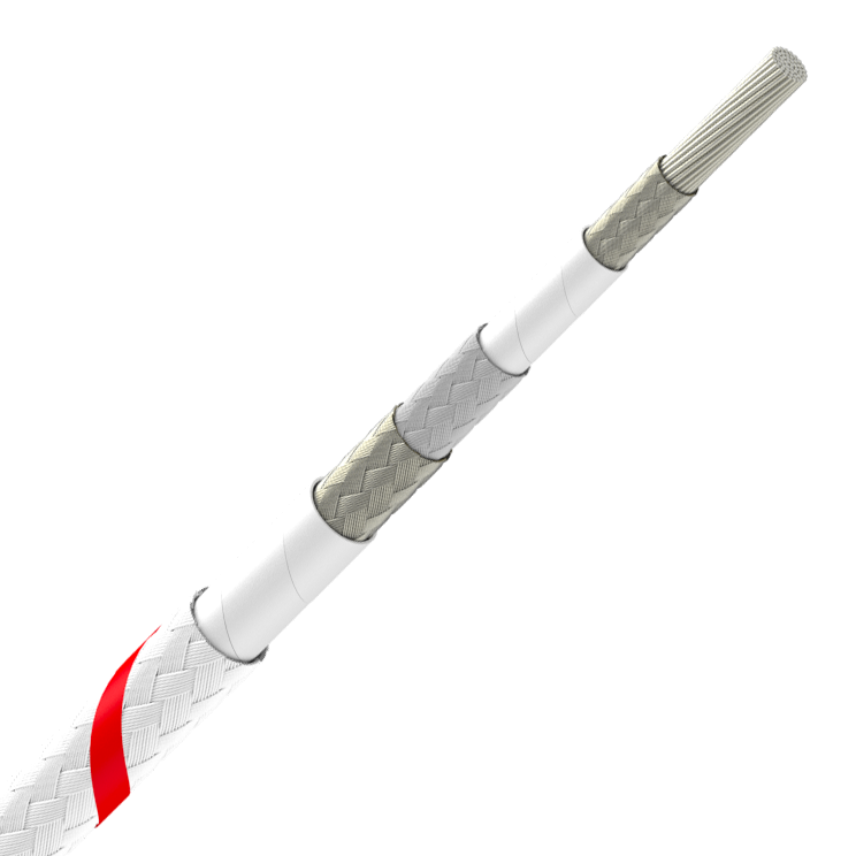

ProductBMS 13-67
CORE
Nickel clad high strength copper alloy
INSULATION
Very high temperature
Fire resistant insulation
High temperature PTFE tapes
PTFE coated fiber glass braid
SHIELD
Nickel clad copper braid
JACKET
High temperature PTFE tapes
PTFE coated fiber glass braid
Characteristics
Characteristics
전기적 특성
전기적 특성
Operating voltage
600 V
Maximal operating frequency
0.002 MHz
사용 특성
사용 특성
최대 운용 온도
310 °C
Fire resistant
-
Minimum bending radius, fixed installation
5 (xD)
Oil resistance
Very good resistance to aircraft fluids
