EN 2346-005 DW - DWB - DWC
EN 2346-005 DW - DWB - DWC
Fireproof Cables, Single and Multicore Assembly Light Weight.
Use in the onboard electrical systems of aircraft.
Description
Description
Standards
-
ProductEN 2346-005

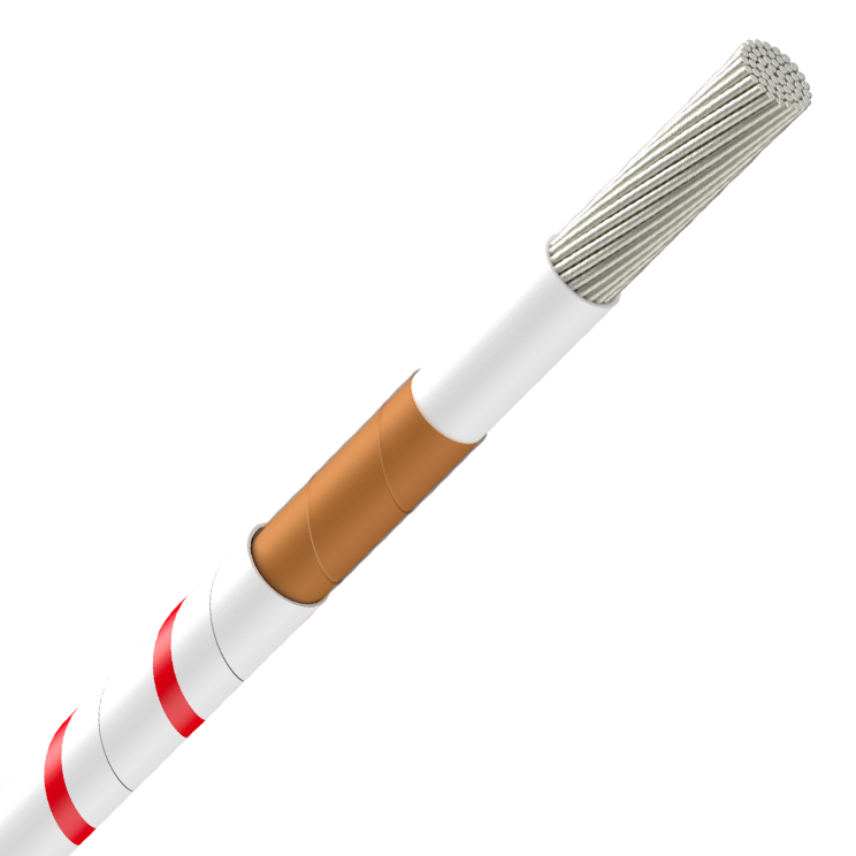

CORE
Stranded conductor
Nickel clad copper alloy for size 24 and 22
Nickel clad copper for other sizes
INSULATION
Fireproof insulation
Polyimide tape
PTFE tape, UV laser markable (for single core)
Characteristics
Characteristics
전기적 특성
전기적 특성
사용 특성
사용 특성
Resources
Resources
Documentation
Selling & delivery Information
Colours of cores :
1 core : white with helical red stripe
2 cores : white with helical red / blue stripe
3 cores : white with helical red / blue / yellow stripe
Marking text :
EN DW ++ FR F** for single core
EN DW A ++ FR F** for multicore
DW = short designation
++ = AWG
FR = Country of origin (FR = France)
F = Manufacturer (F = Nexans)
** = Year of production (ie. 18 = 2018)
