ESW 1200-010-XXX / ESW 1201-010-XXX

ESW 1200-010-XXX / ESW 1201-010-XXX

ESW 1200-010-XXX / ESW 1201-010-XXX

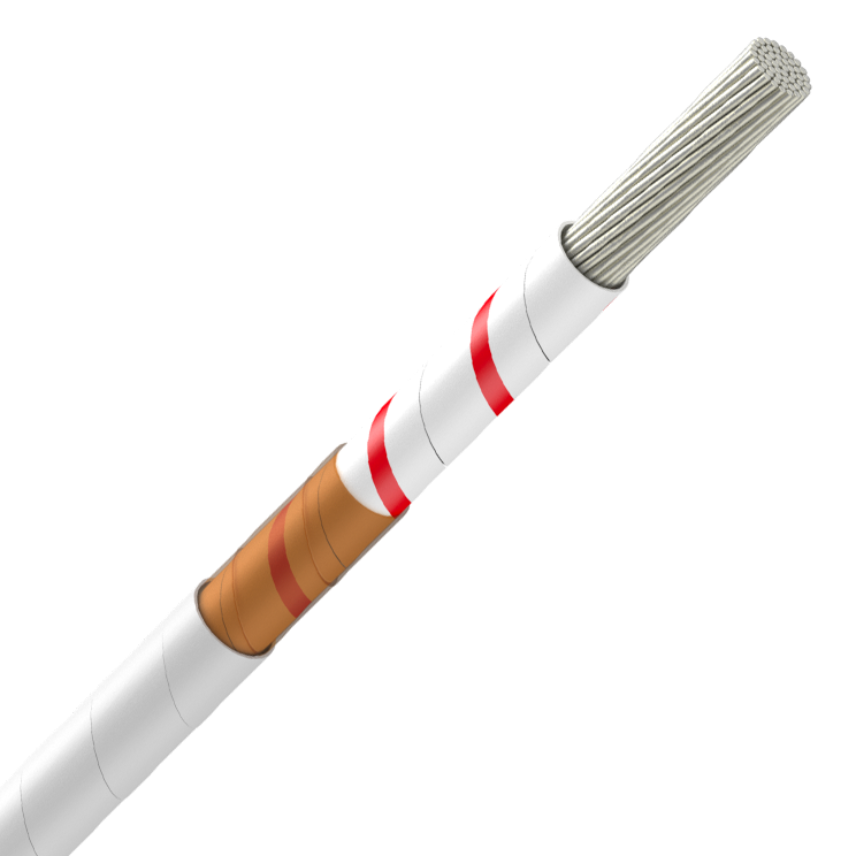

Fire Resistant Cable Single Core

Aero engine services applications

Read more
Download all documents
Contact us

Description

Description

Standards

  • 국가 표준
    ESW 1201-010; ESW 1200-010

CORE
Stranded conductor
Nickel clad copper alloy (ESW1200)
Nickel clad copper (ESW1201)



INSULATION
Fire resistant insulation
Polyimide tape
PTFE tape



















Characteristics

Characteristics

전기적 특성

전기적 특성

Operating voltage
600 V

사용 특성

사용 특성

操作温度范围
-65 ... 260 °C
Fire resistant
-
Oil resistance
Very good resistance to aircraft fluids

Resources

Resources

Documentation

xls — 0 B
Download
xls — 0 B
Download

Selling & delivery Information


Colour of core : White with a helical red stripe

Marking text :
ESW 1200-010-xxx-FX-FF-**
ESW 1201-010-xxx-FX-FF-**

xxx = Size code
(**) = Year of production (ie. 14 = 2014)
