ESW 1252-+++-XXX / ESW 1253-+++-XXX
ESW 1252-+++-XXX / ESW 1253-+++-XXX

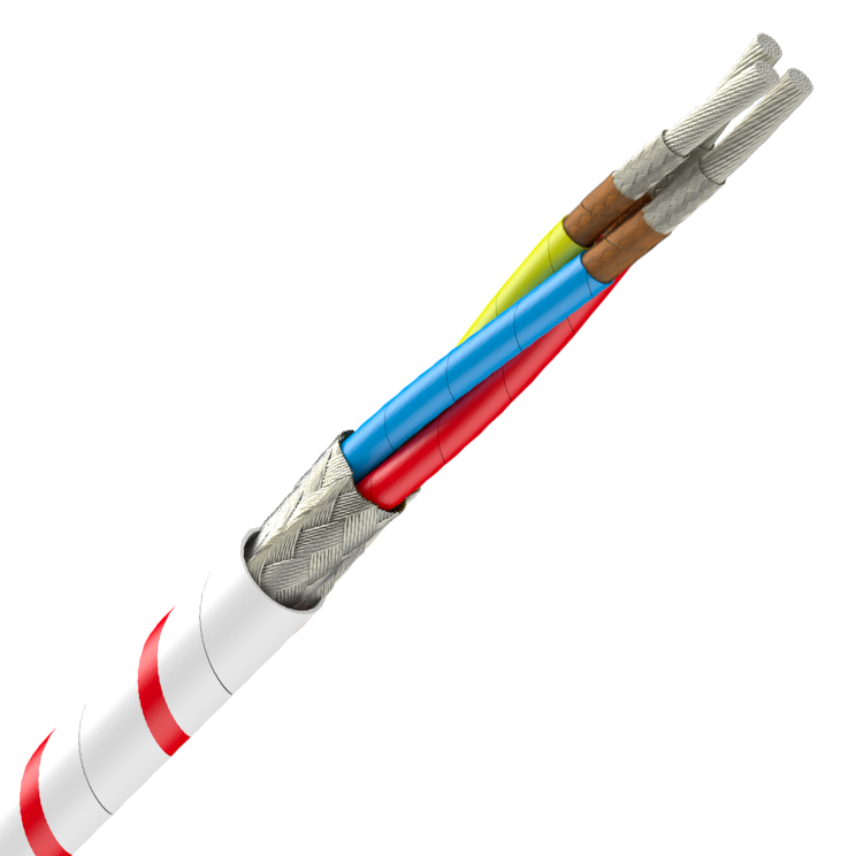

Fireproof Cable, Single and Multi-cores Screened and Jacketed
Use in essential services
Description
Description
Standards
-
NationalESW 1253; ESW 1252
CORE
Stranded conductor
Nickel clap copper alloy (ESW1252)
Nickel clad copper (ESW1253)
004: 19x0.15 mm
006: 19x0.20 mm
010: 19x0.25 mm
012: 19x0.30 mm
INSULATION
Fireproof insulation
Polyimide Tape
PTFE Tape
SCREEN
Nickel plated copper braid
JACKET
PTFE tape(s)
Characteristics
Characteristics
전기적 특성
전기적 특성
사용 특성
사용 특성
Resources
Resources
Selling & delivery Information
Core identification :
Single core : White
Two cores : Red - Blue
Three cores : Red - Blue - Yellow
Four cores : Red - Blue - Yellow - Green
Jacket identification :
White with narrow red stripe
Marking text :
ESW1252-+++-xxx-FX-FF-**
ESW1253-+++-xxx-FX-FF-**
+++ = Form code
xxx = Size code
** = Year of production (ie. 14 = 2014)
