ESW 1254-022-002 / ESW 1254-032-002
ESW 1254-022-002 / ESW 1254-032-002

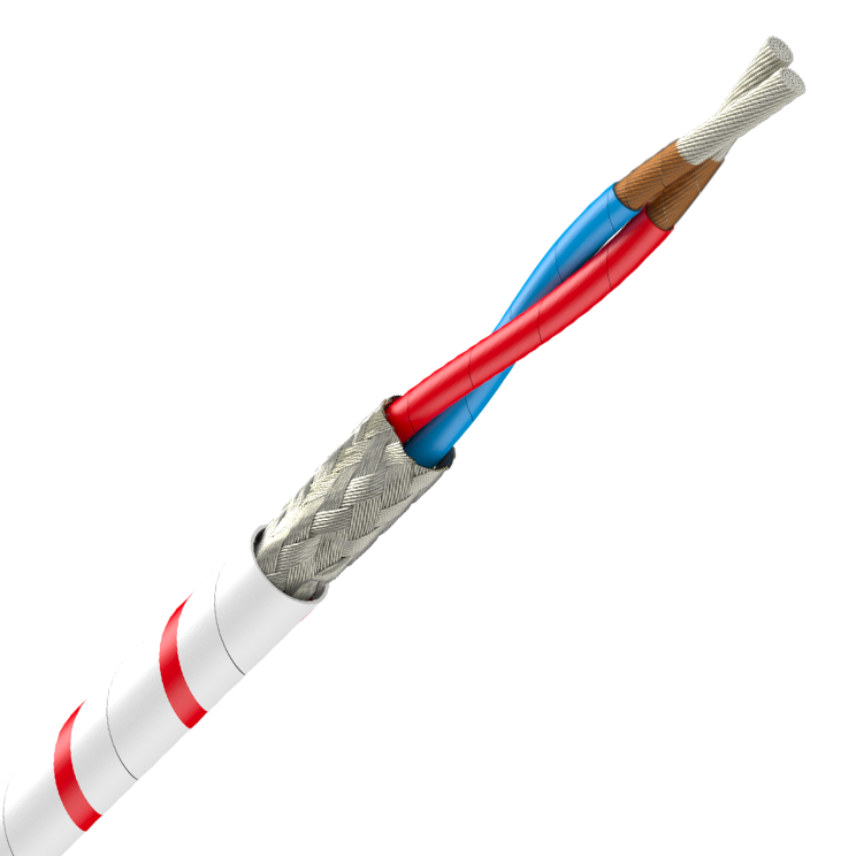

Fireproof Cable, Two or Three-cores Twisted Screened and Jacketed
Use in Aero engine services.
Description
Description
Standards
-
국가 표준ESW 1254-022-002; ESW 1254-032-002
CORE
Stranded conductor
Nickel clad copper alloy
002: 19x0.12 mm
INSULATION
Fire resistant insulation
Polyimide Tape
PTFE Tape
SCREEN
Nickel plated copper braid
JACKET
PTFE tape(s)
Characteristics
Characteristics
전기적 특성
전기적 특성
Operating voltage
600 V
사용 특성
사용 특성
操作温度范围
-65 ... 260 °C
Fire resistant
-
Oil resistance
Very good resistance to aircraft fluids
Resources
Resources
Documentation
Selling & delivery Information
Core identification :
Two cores (022) : Red - Blue
Three cores (032) : Red - Blue - Yellow
Jacket identification :
White with narrow red stripe
Marking text :
ESW1254-022-002-FX-FF-**
FX = Country of origin
FF = Manufaturer‘s code
** = Year of production (ie. 14 = 2014)
