10310-N**C Multicores
10310-N**C Multicores

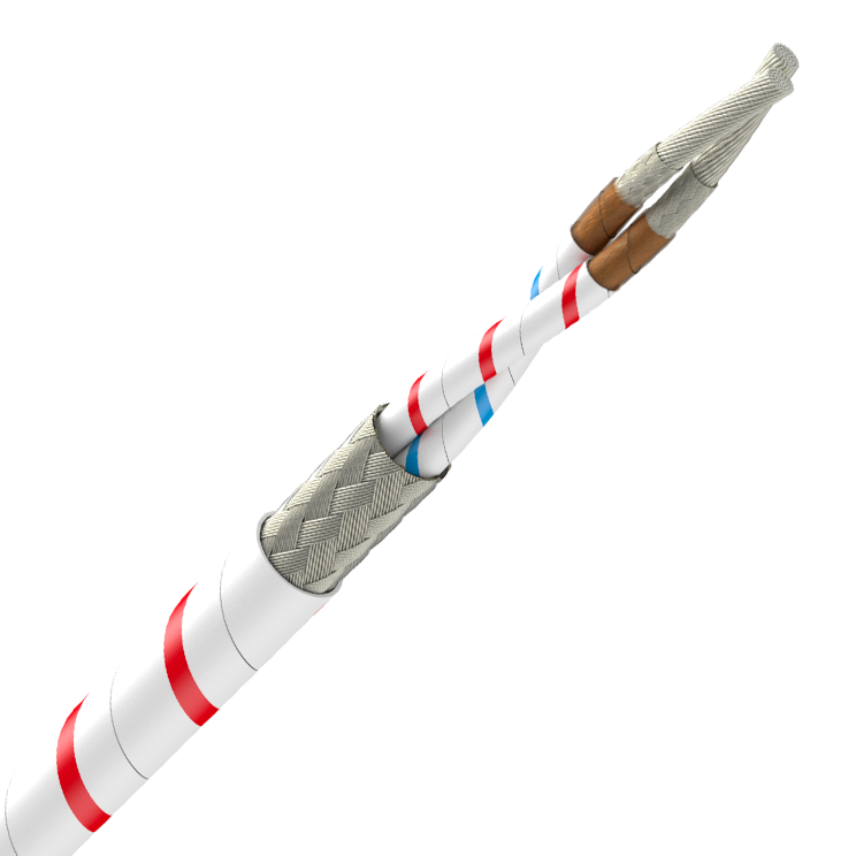

Fire Resistant Cable, Multi-cores Screened and Jacketed.
Aero engine services applications.
Description
Description
Standards
-
Product448-010-3-10
CORE
Stranded conductor :
Nickel clad copper alloy (AWG 22)
Nickel clad copper (AWG 20 to 16)
004 : 19 x 0.15 mm
006 : 19 x 0.20 mm
010 : 19 x 0.25 mm
012 : 19 x 0.30 mm
INSULATION
Fire resistant insulation
Polyimide Tape
PTFE Tape
SCREEN
Nickel plated copper braid
JACKET
UV PTFE Tape(s)
Characteristics
Characteristics
구조적 특성
구조적 특성
치수
치수
전기적 특성
전기적 특성
사용 특성
사용 특성
Resources
Resources
Selling & delivery Information
Cores identification
Two cores :
White with Red stripe - White with Blue stripe
Three cores :
White with Red stripe - White with Blue stripe - White with Yellow stripe
Marking on Jacket : White with Red stripe
10310-N0£C# ** BL F0241 ++++
£ = Number of Cores
# = A : Nickel clad copper, B : Nickel clad copper alloy
++++= Year of manufacturing
