ABS 0949 - AD AWG 3 to 000
ABS 0949 - AD AWG 3 to 000
Designed for general purpose aircraft wiring applications.
Nickel Platted Aluminium Alloy Conductors
UV laser printable.
Description
Description
Standards
-
ProductABS 0958; ABS 0949 AD
-
TestprEN 3475

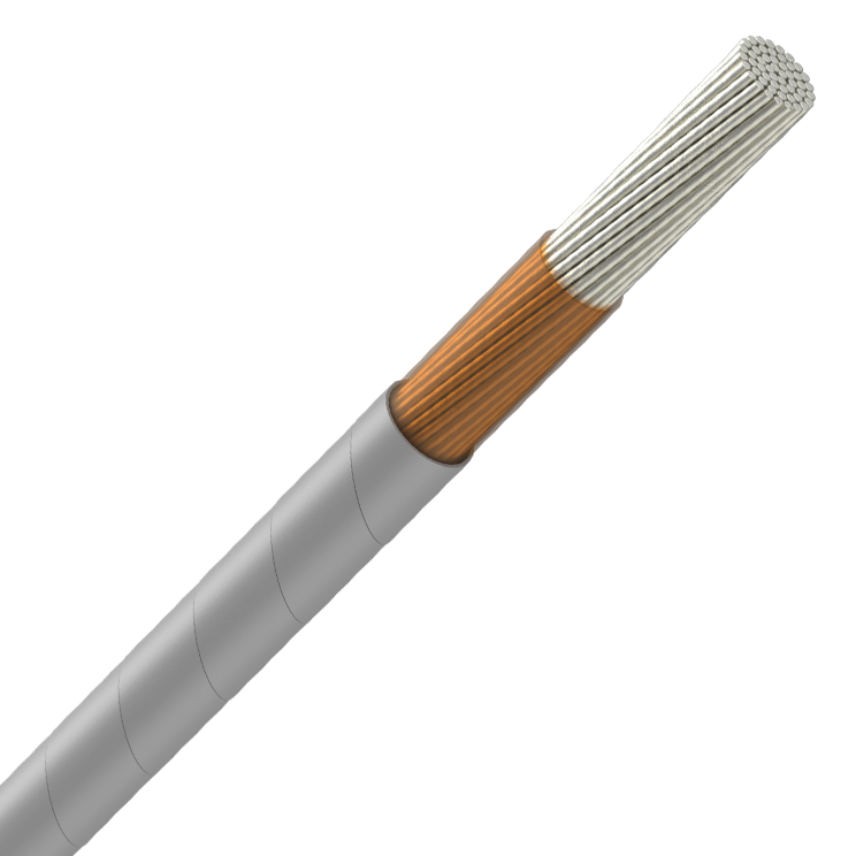

Cable design:
1-Conductor
Nickel plated aluminium rope-lay conductor
2-Insulation
High performance polyimide tape
Special UV PTFE tape
IDENTIFICATION
Standard color: Grey
Color of marking : Blue
Marking text: AD ** FR F++
** = AWG
FR = Country of origin (FR = France) F = Manufacturer (F = Nexans) ++ = Year of production (i.e. 14 = 2014)
Characteristics
Characteristics
구조적 특성
구조적 특성
도체 재료
-
전기적 특성
전기적 특성
Operating voltage
600 V
Maximal operating frequency
- MHz
20° C에서 최대 도체 DC저항
- Ohm/km
사용 특성
사용 특성
操作温度范围
-60 ... 180 °C
Oil resistance
Very good resistance to aircraft fluids
Arc tracking resistant
Yes
RoHS compliant
Yes
