ABS 1354 ADB, ADC, ADD Power transmission
ABS 1354 ADB, ADC, ADD Power transmission
Designed for general purpose aircraft wiring appplications.
Multicores Nickel Copper Clad Aluminium (AWG 24 to 4)
Multicores Aluminium Alloy (AWG 3 to 000)
Description
Description
Standards
-
ProductABS 0958; ABS 1354
-
TestprEN 3475
Cable Design

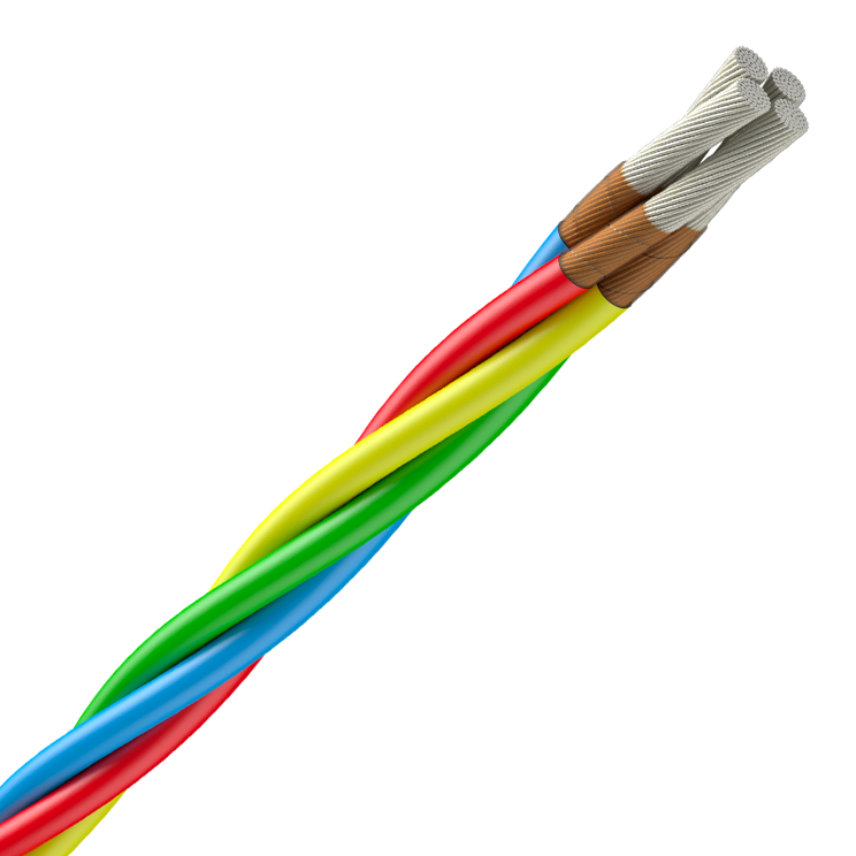

CORES
2, 3 or 4 cores ABS 0949 ADA
IDENTIFICATION
2 cores (ADB) : Red - Blue
3 cores (ADC) : Red - Blue - Yellow
4 cores (ADD) : Red - Blue - Yellow - Green
Marking colour : Black
Marking text : " ADA ** FRF++ "
** = AWG
FR = Country of origin (FR = France)
F = Manufacturer (F = Nexans)
++ = Year of production (i.e. 14 = 2014)
Characteristics
Characteristics
구조적 특성
구조적 특성
도체 재료
Nickel plated aluminium
Core identification
-
Number of conductors
2
치수
치수
Maximum weight
- g/m
Nominal weight
- g/m
Conductor cross-section (AWG/KCMIL)
-
전기적 특성
전기적 특성
Operating voltage
600 V
Maximal operating frequency
0.002 MHz
20° C에서 최대 도체 DC저항
- Ohm/km
사용 특성
사용 특성
操作温度范围
-65 ... 180 °C
Oil resistance
Very good resistance to aircraft fluids
Arc tracking resistant
Yes
RoHS compliant
Yes
