ASNE0438 YV- Single core

CABLE DESIGN

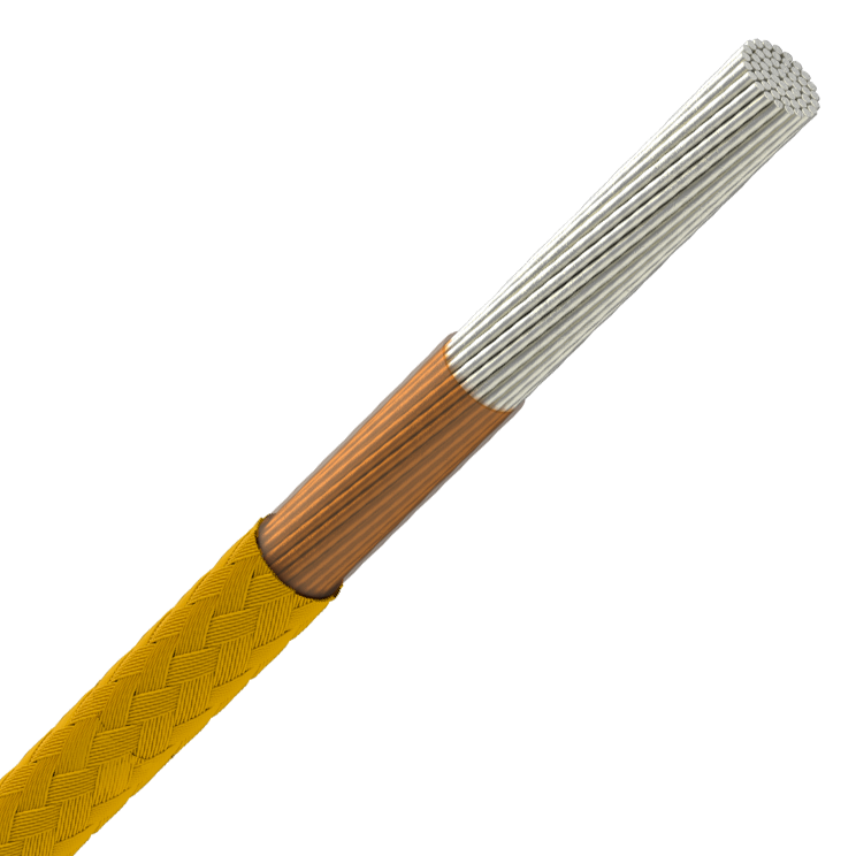

SINGLE CORE (ASNE0438 YV)

Product designed according to : ASNE0438


1-Conductor
A Stranded Conductor
Made of Nickel Plated Aluminium


2-Insulation
Polyimide Tapes


3-External protection
Aromatic Polyamide Braid
Impregnated with a Non Flammable Varnish

IDENTIFICATION

By colored threads between polyimide tapes and external braid
1, 2 or 3 threads for manufacturer : i.e. Black + Grey = Nexans
2 threads for year of manufacturing : i.e. Black + Pink = 2017

By colored carrier in the external Aromatic Polyamide braid:
1 black carrier for wires Size AWG 06, 03, 01, 00 and 0000

Additionnal identification for multicore (QP):

By colored carrier in the external Aromatic Polyamide braid:

- 1 core with red carrier

- 1 core with blue carrier

- 1 core with yellow carrier

Dimensional characteristic note :

YV 000 and YV 0000 products : AWG not defined in ASN specification, values obtained by extension with defined construction.
