EN 2767-010 A DR
EN 2767-010 A DR
Designed for general Purpose Aircraft Wiring Applications.
UV Laser printable Wire
260°C Operating Temperature Light Weight
Arc Tracking Resistant
EN 2267-010A 001
Product ref.
- Conductor cross-section (AWG/KCMIL): 26
- Maximum core diameter: 0.49 mm
- minimum core diameter: 0.47 mm
- Maximum outer diameter: 0.84 mm
- Minimum cable diameter: 0.75 mm
- Conductor stranding: 19 x 0.10
- Maximum weight: 2.08 g/m
- Nominal weight: 1.95 g/m
- 20° C에서 최대 도체 DC저항: 160 Ohm/km
EN 2267-010A 002
Product ref.
- Conductor cross-section (AWG/KCMIL): 24
- Maximum core diameter: 0.58 mm
- minimum core diameter: 0.56 mm
- Maximum outer diameter: 0.96 mm
- Minimum cable diameter: 0.85 mm
- Conductor stranding: 19 x 0.12
- Maximum weight: 2.72 g/m
- Nominal weight: 2.64 g/m
- 20° C에서 최대 도체 DC저항: 114 Ohm/km
EN 2267-010A 004
Product ref.
- Conductor cross-section (AWG/KCMIL): 22
- Maximum core diameter: 0.73 mm
- minimum core diameter: 0.71 mm
- Maximum outer diameter: 1.1 mm
- Minimum cable diameter: 1 mm
- Conductor stranding: 19 x 0.15
- Maximum weight: 4.14 g/m
- Nominal weight: 3.89 g/m
- 20° C에서 최대 도체 DC저항: 60 Ohm/km
EN 2267-010A 006
Product ref.
- Conductor cross-section (AWG/KCMIL): 20
- Maximum core diameter: 0.97 mm
- minimum core diameter: 0.94 mm
- Maximum outer diameter: 1.34 mm
- Minimum cable diameter: 1.22 mm
- Conductor stranding: 19 x 0.20
- Maximum weight: 6.85 g/m
- Nominal weight: 6.57 g/m
- 20° C에서 최대 도체 DC저항: 32.2 Ohm/km
EN 2267-010A 010
Product ref.
- Conductor cross-section (AWG/KCMIL): 16
- Maximum core diameter: 1.22 mm
- minimum core diameter: 1.19 mm
- Maximum outer diameter: 1.61 mm
- Minimum cable diameter: 1.46 mm
- Conductor stranding: 19 x 0.25
- Maximum weight: 10.43 g/m
- Nominal weight: 10.15 g/m
- 20° C에서 최대 도체 DC저항: 21.1 Ohm/km
Description
Description
Standards
-
ProductEN 2267-010

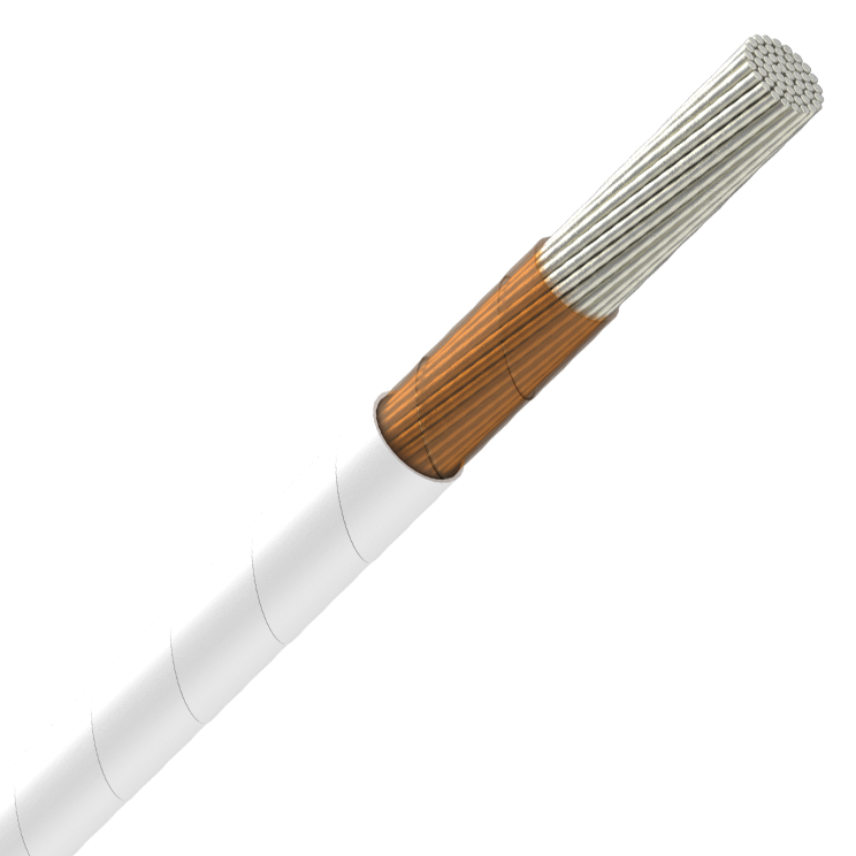

Design Construction
1-Core
Stranded Conductor : Nickel Plated High
Strength Copper Alloy (AWG 26 & 24) or
Nickel Plated Copper (AWG 22 to 2)
2-Insulation
Special Polyimide Tape
Special UV PTFE Tape(s)
IDENTIFICATION
Standard colour code :
White except AWG 26 which is light yellow and AWG 22 which is light green
AWG 24 is available in light blue color (EN2267-010A 002B)
Color of marking: green
Marking text: EN DR ** FR F ++
DR = Short designation
** = AWG Wire Size
FR = Country of origin (FR = France)
F = Manufacturer (F = Nexans)
++ = Year of production (i.e. 13 = 2013)
