K27 ARMOURED 300/500V

Products

K27 ARME 300/500V 3G1,5

Product ref. 10224667

  • With Green/Yellow core:
  • 코어수: 3
  • 도체 단면적: 1.5 mm²
  • Maximum outer diameter: 15.3 mm
  • 무게(근사치): 329 kg/km



K27 ARME 300/500V 2x1,5

Product ref. 10224665

  • With Green/Yellow core: 없음
  • 코어수: 2
  • 도체 단면적: 1.5 mm²
  • Maximum outer diameter: 14.5 mm
  • 무게(근사치): 284 kg/km



K27 ARME 300/500V 12x1,5

Product ref. 10265295

  • With Green/Yellow core: 없음
  • 코어수: 12
  • 도체 단면적: 1.5 mm²
  • Maximum outer diameter: 29.0 mm
  • 무게(근사치): 716 kg/km



K27 ARME 300/500V 3G2,5

Product ref. 10224668

  • With Green/Yellow core:
  • 코어수: 3
  • 도체 단면적: 2.5 mm²
  • Maximum outer diameter: 16.5 mm
  • 무게(근사치): 396 kg/km



K27 ARME 300/500V 2x2,5

Product ref. 10224666

  • With Green/Yellow core: 없음
  • 코어수: 2
  • 도체 단면적: 2.5 mm²
  • Maximum outer diameter: 16.7 mm
  • 무게(근사치): 313 kg/km



K27 ARME 300/500V 3G4

Product ref. 10265294

  • With Green/Yellow core:
  • 코어수: 3
  • 도체 단면적: 4 mm²
  • Maximum outer diameter: 17.6 mm
  • 무게(근사치): 494 kg/km



K27 ARME 300/500V 2x4

Product ref. 10265271

  • With Green/Yellow core: 없음
  • 코어수: 2
  • 도체 단면적: 4 mm²
  • Maximum outer diameter: 18.1 mm
  • 무게(근사치): 440 kg/km



K27 ARME 300/500V 2x6

Product ref. 10242834

  • With Green/Yellow core: 없음
  • 코어수: 2
  • 도체 단면적: 6 mm²
  • Maximum outer diameter: 18.8 mm
  • 무게(근사치): 539 kg/km



K27 ARME 300/500V 2x10

Product ref. 10265272

  • With Green/Yellow core: 없음
  • 코어수: 2
  • 도체 단면적: 10 mm²
  • Maximum outer diameter: 21.8 mm
  • 무게(근사치): 723 kg/km



K27 ARME 300/500V 5G16

Product ref. 10269286

  • With Green/Yellow core:
  • 코어수: 5
  • 도체 단면적: 16 mm²
  • Maximum outer diameter: 29.0 mm
  • 무게(근사치): 1700 kg/km



K27 ARME 300/500V 4x16

Product ref. 10230163

  • With Green/Yellow core: 없음
  • 코어수: 4
  • 도체 단면적: 16 mm²
  • Maximum outer diameter: 25.9 mm
  • 무게(근사치): 1348 kg/km



K27 ARME 300/500V 2x16

Product ref. 10265273

  • With Green/Yellow core: 없음
  • 코어수: 2
  • 도체 단면적: 16 mm²
  • Maximum outer diameter: 23.9 mm
  • 무게(근사치): 923 kg/km



Description

Description

Standards

  • Product
    IEC 60228; NF C32-310
  • Test
    NF C32-070/C1; NF C32-070/C2

Fire performance

  • Flame retardant: According to RATP K20 specification
  • Fire retardant : According to RATP K20 specification
  • Fire resistant : According to RATP K20 specification
  • Low smoke: According to RATP K20 specification
  • Without Halogene: According to RATP K20 specification
  • Low Toxicity: According to RATP K20 specification
  • Low Corrosivity: According to RATP K20 specification

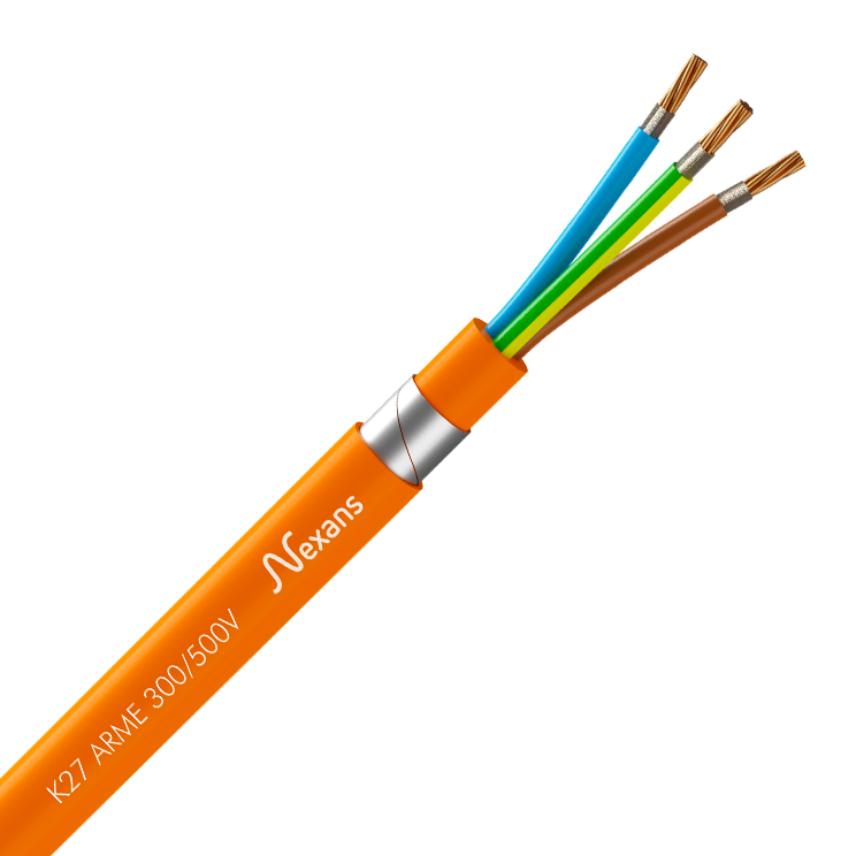

Design

  • Conductor : Bare copper - Solid class 1 for cross section <4mm² - Stranded class 2 for cross section >=4mm²
  • Insulation : Silicone rubber + mica tape
  • Inner sheath :  Halogen free Polyolefin
  • Armour : Steel tapes
  • Outer sheath : Halogen free Polyolefin, Colour : orange


Core identification

2x: blue-brown
3x: brown-black-grey or
brown-black-blue for cross sections 1,5 and 2,5)
3G: green/yellow-blue-brown
4x: blue-brown-black-grey
4G: green/yellow-brown-black-grey
5x: blue-brown-black-grey-black
5G: green/yellow-blue-brown-black-grey
7x: white numbered with or without green/yellow



Characteristics

Characteristics

구조적 특성

구조적 특성

도체 재료
베어 구리
절연
운모 밴드
Insulating material
Silicone
내피
폴리올레핀
피복
할로겐 프리 폴리올레핀
Sheath colour
주황색
Halogen free
IEC 60754-1

기계적 특성

기계적 특성

Mechanical resistance to impacts
Good

사용 특성

사용 특성

操作温度范围
-20 ... 60 °C
Gases corrosivity
IEC 60754-2
연기밀도
IEC 61034-2
Fire retardant
NFC 32070 C1
난연
NFC 32070 C2
Fire resistant
IEC 60332-3-23 Cat.B
Max. conductor temperature in service
90 °C

Resources

Resources

Selling & delivery Information

Marking

K27 - 300/500 - Nber of cores & cross-section - ARME - MM/YY - NEXANS 279 - Manufacturing n° + metric marking
