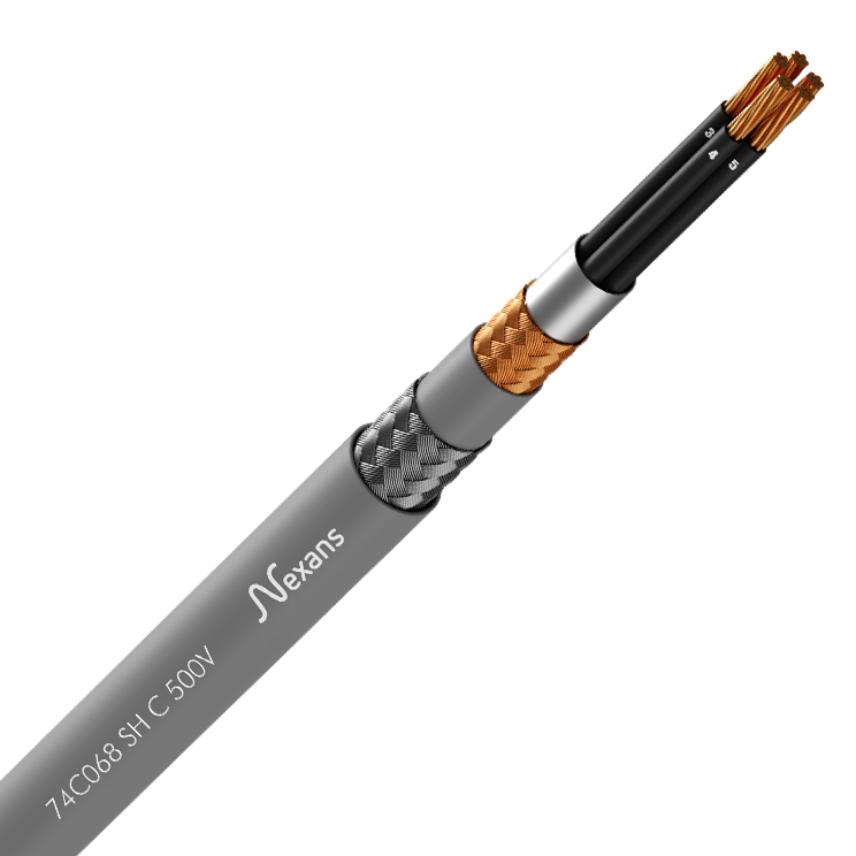

74C068 SH C 500V 2x0.75 Cu2 K3 EG Tz

Applications

These control cables alllow connection to a variety of industrial equipement from control room. Many of them require anti-inductive screen (EMI). They are well adapted to underground use.

Design

Conductor:
- Stranded plain copper (class 2)
Insulation:
- Zero halogen (SH), cross-linked
Assembling:
- Polyester tape (optional)
Overall screen:
- Copper wire braid (CWB) R ≥ 80%
Inner sheath:
- Low smoke, zero halogen (LSZH)
Armour:
- Galvanized steel braid (Tz) ≤ 4 conductors
- Steel tapes (Ar) > 4 conductors
Outer sheath:
- Low smoke, zero halogen (LSZH)
- Colour: grey

Core identification

Black cores printed with white numbers
Optional: with Y/G core

Marking

NEXANS 279  Nber of cores & cross-section Cu EG ARME CST 74 C 068 K3 SH 0.3/0.5 (0.6) kV YYYY  Manufacturing number  + metric marking
