Study 133515
Study 133515
Multi-cores Unshielded and PVC Jacketed cable
Very flexible cable with an extremely good mechanical behaviour.
Withstands miscellaneous sterilisation process.
- Nexans ref. : Etude 133515
- Country ref. : Etude 133515
Description
Description
Standards
-
ProductNexans specification
1- CORE (A)
AWG 34 Stranded silver plated copper alloy conductor
FEP insulation
Diameter : 0.29 +/- 0.02 mm

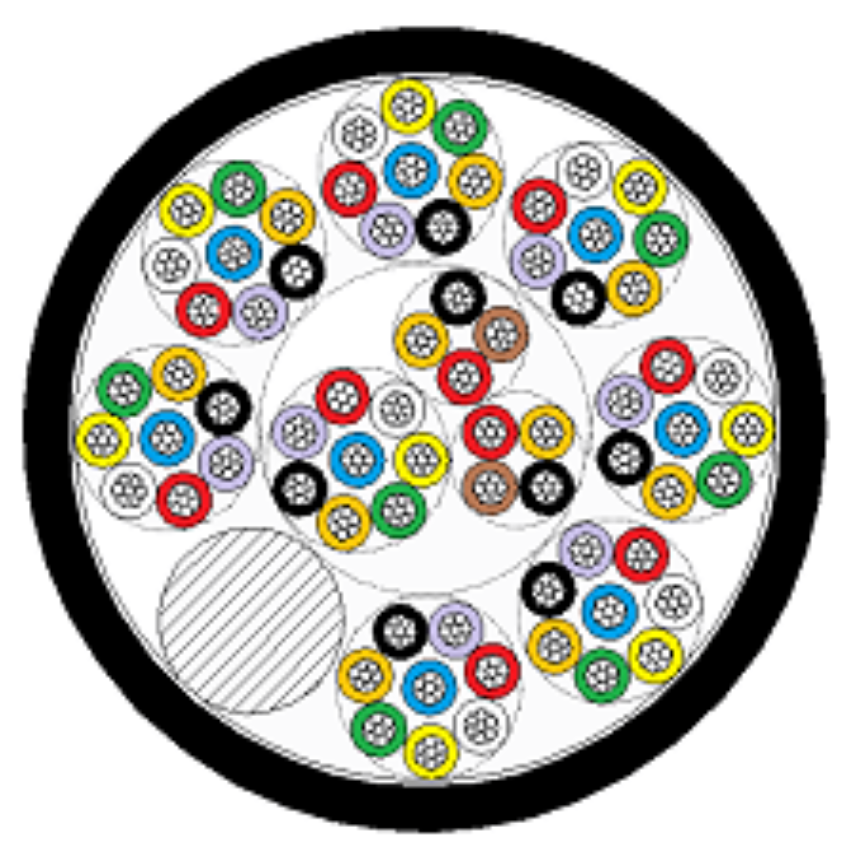

ASSEMBLY
Center : 8 cores (A) + 4 cores (A) + 4 cores (A) twisted
Around : 7 x 8 cores (A) + Filler
Diameter : 3.46 mm
2- PTFE Tape
Diameter : 3.52 mm
3- JACKET
Medical PVC
Diameter : 4.22 mm
Mechanical performances
Minimum bending radius : 5 x Overall diameter.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Silvered copper
Conductor shape
Multi stranded
Construction type
Unshielded and sheathed
Insulation
Fluor polymer
Dimensional characteristics
Dimensional characteristics
Wire diameter
0.29 mm
Outer Diameter
4.22 mm
Maximum outer diameter
4.32 mm
Approximate weight
29 g/m
Electrical characteristics
Electrical characteristics
Operating voltage
5 V
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Very flexible
Usage characteristics
Usage characteristics
Maximum operating temperature
85 °C
Minimum operating temperature
-30 °C
Mechanical Resistance
Good mechanical resistance
