Study 132923
Study 132923
Medical Video Endoscopy cable
Very flexible cable with an extremely good mechanical behaviour.
Withstands miscellaneous sterilisation process.
- Country ref. : Etude 132923
Description
Description
Standards
-

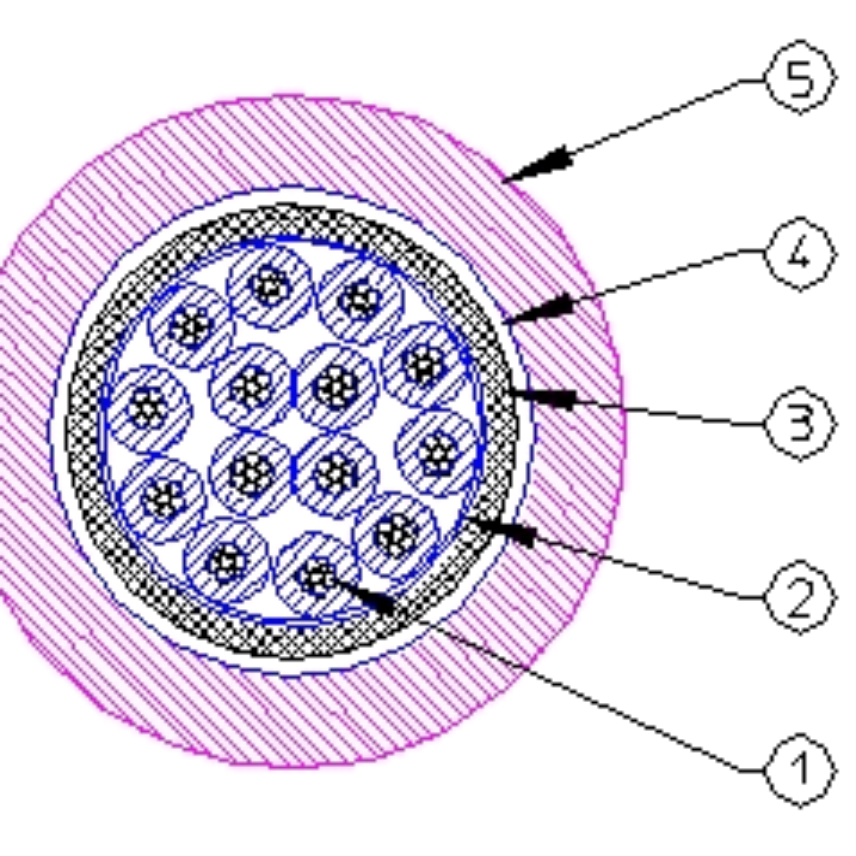

ProductNexans specification
1- CORE (A)
AWG 32 Stranded silver plated conductor
FEP insulation
Diameter : 0.50 +/- 0.05 mm.
14 cores (A) twisted
Diameter : 2.2 mm
2- PTFE Tape
Diameter : 2.25 mm
3- SHIELD
AWG 40 Silver plated copper braid
85% coverage
Diameter : 2.6 mm
4- PTFE Tape
Diameter : 2.74 mm
5- MEDICAL PU
Diameter : 4.0 +/- 0.1 mm
Mechanical performances
Minimum bending radius : 5 x Overall diameter.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Silvered copper
Conductor shape
Multi stranded
Construction type
Shielded and sheathed
Insulation
Fluor polymer
Dimensional characteristics
Dimensional characteristics
Wire diameter
0.5 mm
Outer Diameter
4 mm
Maximum outer diameter
4.1 mm
Approximate weight
22.35 g/m
Electrical characteristics
Electrical characteristics
Operating voltage
24 V
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Very flexible
Usage characteristics
Usage characteristics
Maximum operating temperature
90 °C
Minimum operating temperature
-40 °C
Mechanical Resistance
Good mechanical resistance
