DEVICENET PVC CABLES
DEVICENET PVC CABLES

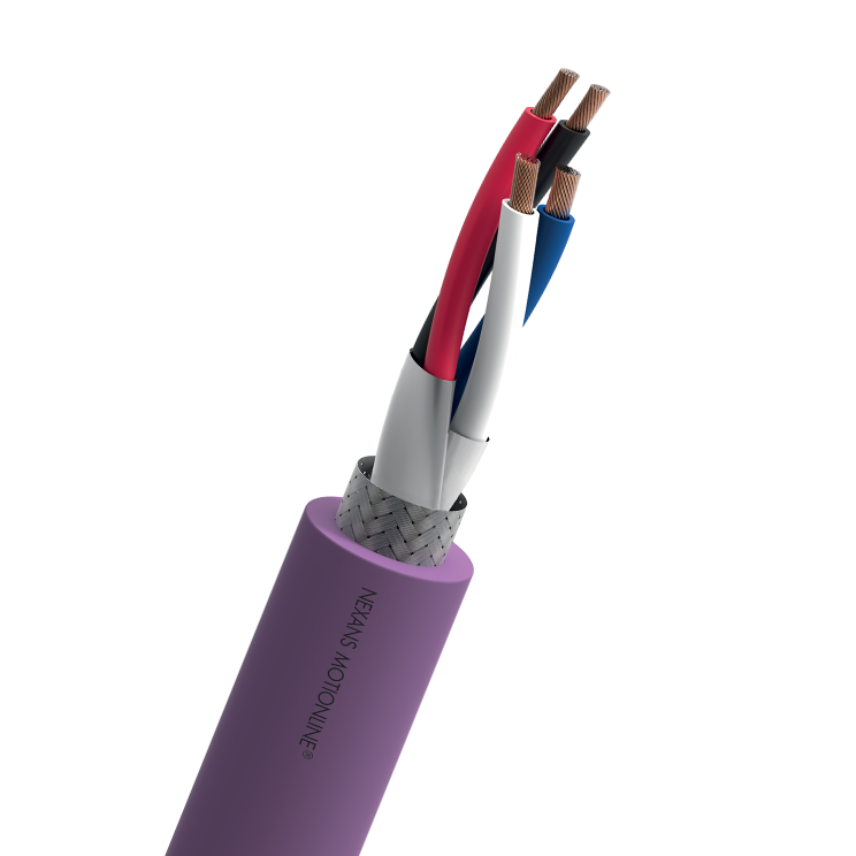

DeviceNet cables with PVC jacket for fixed installation, shielded, flame retardant
Read moreDEVICENET PVC (1x2x0.34+1x2x0.22)C
Nexans ref. 10553018 - Country ref. 13-DRW22Z04R
- Packaging: Cut to length (m)
- Construction type: (1x2x0.34+1x2x0.22)C
- Nominal outer diameter: 7.0 mm
- Copper content: 28 kg/km
- Approximate weight: 58 kg/km
DEVICENET PVC (1x2x1.8+1x2x1)C
Nexans ref. 13-DRW15Z04R - Country ref. 13-DRW15Z04R
- Packaging: Drum (500m)
- Construction type: (1x2x1.8+1x2x1)C
- Nominal outer diameter: 11.8 mm
- Copper content: 88 kg/km
- Approximate weight: 155 kg/km
Description
Description
Standards
-
ProductUL and CSA approval
Applications
DeviceNet is one of the world´s leading device-level neworks for industrial automation. This bus system offers data transmission and power supply in one cable. The special twisting design allows higher bending cycles than competiors traditional parallel twisting.
Normative references
UL recognized
CSA approval
bus
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Stranded tinned copper
Insulation
Foam-skin
Insulation colour
Red, black, white, blue
Drain wire
Stranded tinned copper
Individual screen
Aluminium / Polyester tape
Shielding
70% tinned copper coverage
Taping
Non woven tape
Outer sheath
PVC
Sheath colour
Violet RAL 4001
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U
300 V
Characteristic impedance
120 Ohm
Test voltage
1500 V
Usage characteristics
Usage characteristics
Field of application
Static
Operating temperature, range
-25 ... 80 °C
Storage temperature, range
-40 ... 80 °C
Flame retardant
IEC/EN 60332-1-2; FT1; UL 1581 FT1
