HYBRID CABLES ACC. TO SICK HIPERFACE DSL® STANDARD PUR
HYBRID CABLES ACC. TO SICK HIPERFACE DSL® STANDARD PUR

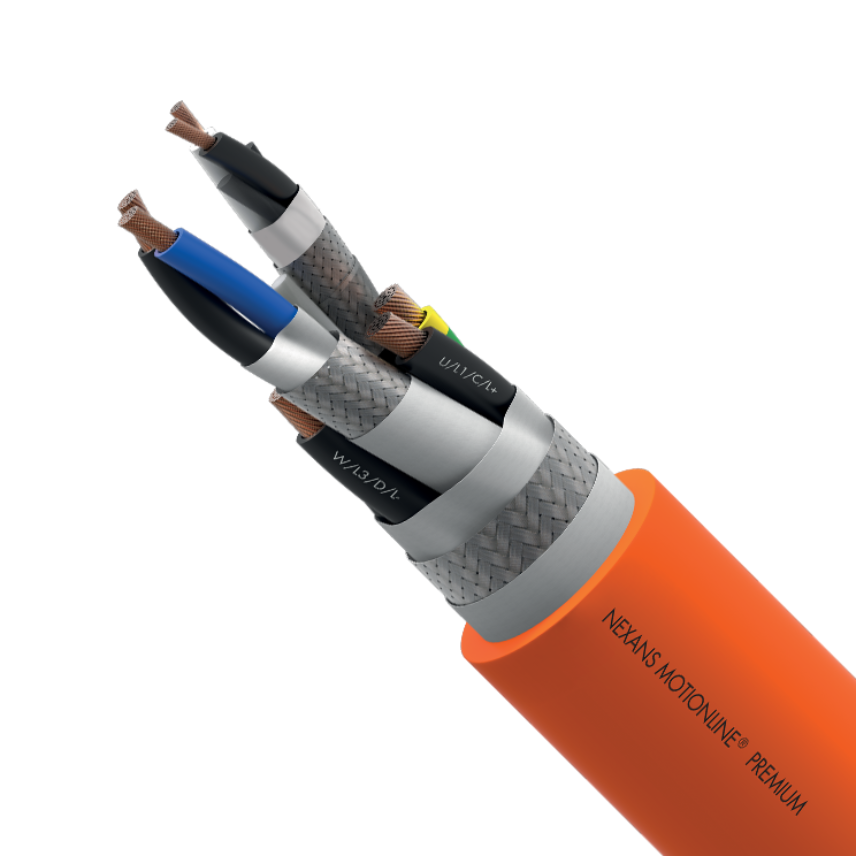

Hybrid cables for servo motors for extremely dynamic applications MOTIONLINE® PREMIUM
Read moreDescription
Description
Standards
-
ProductUL and CSA approval
Hybrid cables for servo motors for extremely dynamic applications; PUR Jacket; screened, resistant to oils and coolants, notch resistant, flame retardant, resistant to hydrolysis and microbes, PVC- and halogen-free.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Construction type
(4G0.75+(2x0.35)C+(2xAWG26)C)C
Conductor material
Bending-resistant conductor with bare copper wires
Insulation
TPM with very low capacitance
Insulation colour
Power: 3 black cores with marking U/L1/C/L+ // V/L2 // W/L3/D/L- // 1 core green-yellow; Control pair 1:black - white with numbers 5+6; Control pair 2: white and blue
Lay Up
power cores and control pairs stranded with filler
Individual screen
Signal shield: Tinned copper braid, coverage >=80%
Screen
Tinned copper braid coverage > 85%
Inner sheath
TPE compound, optimized for drag chain use
Outer sheath
PUR
Sheath colour
Orange RAL 2003
Halogen free
Yes
Dimensional characteristics
Dimensional characteristics
Outer Diameter
- mm
Copper content
- kg/km
Approximate weight
- kg/km
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U
0.6/1 kV
Test voltage
4000 V
Mechanical characteristics
Mechanical characteristics
Bending cycles
5 Mio.
Maximum acceleration
50 m/s²
Speed
300 m/min
Usage characteristics
Usage characteristics
Field of application
Dynamic
Minimum dynamic operating bending radius
7.5 (xD)
Operating temperature, range
-30 ... 80 °C
Storage temperature, range
-50 ... 80 °C
Oil resistance
DIN EN 50363-10-2 & DIN EN 60811-404
Flame retardant
IEC 60332-1-2; UL 1581 FT1
